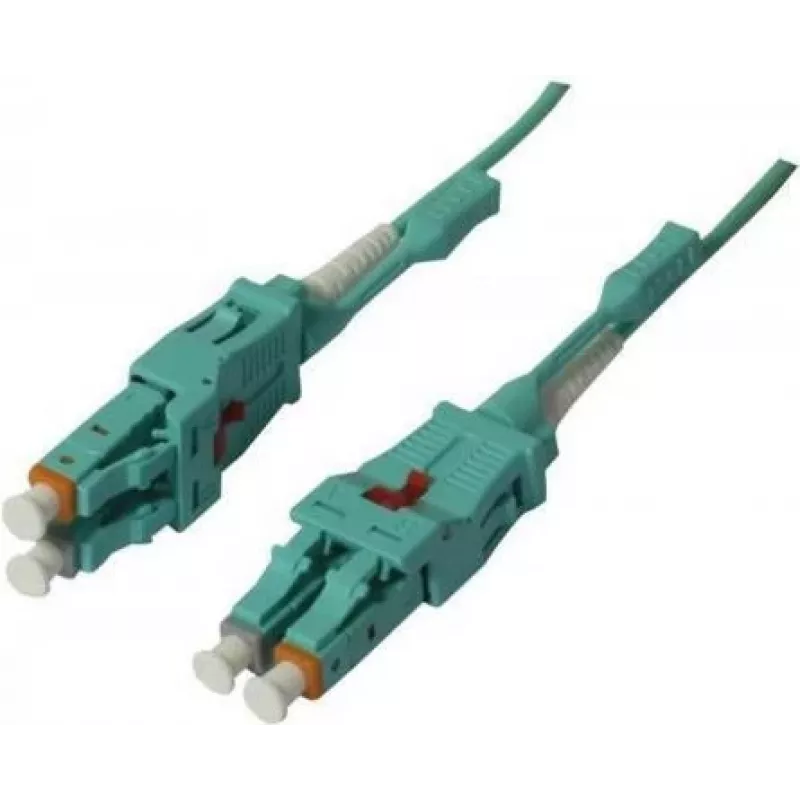

SYNERGY21 Cable de conexión de fibra óptica 1,5 m LC-LC OM3 Uniboot giratorio Push/Pull 2 mm LSZH aguamarina

The SYNERGY21 S215542 is a high-performance fiber optic patch cable designed for reliable data transmission in data centers, LANs, and SANs. With a length of 1.5 meters and LC to LC connectors, this OM3 multimode cable supports 10 Gigabit Ethernet up to 300 meters. The innovative Uniboot design with rotatable polarity and push/pull mechanism simplifies installation and polarity changes. The 2mm cable diameter and LSZH jacket ensure flexibility and safety in tight spaces.

Advantages

Rotatable Uniboot connector allows easy polarity reversal without additional tools. Push/pull tab facilitates insertion and removal in high-density panels. LSZH jacket reduces toxic smoke in case of fire, ideal for public and commercial buildings.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Storage area networks (SAN)
• High-speed backbone connections

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM3
• Core/Cladding: 50/125 µm
• Number of fibers: 2 (Duplex)
• Connector A: LC male
• Connector B: LC male
• Connector design: Uniboot, rotatable
• Connector mechanism: Push/Pull
• Cable length: 1.5 m
• Cable outer diameter: 2 mm
• Jacket material: LSZH
• Maximum bandwidth: 10 Gbps up to 300m (850nm)
• Insertion loss: <0.3 dB
• Return loss: >30 dB
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure clean fiber end-faces before connection.
