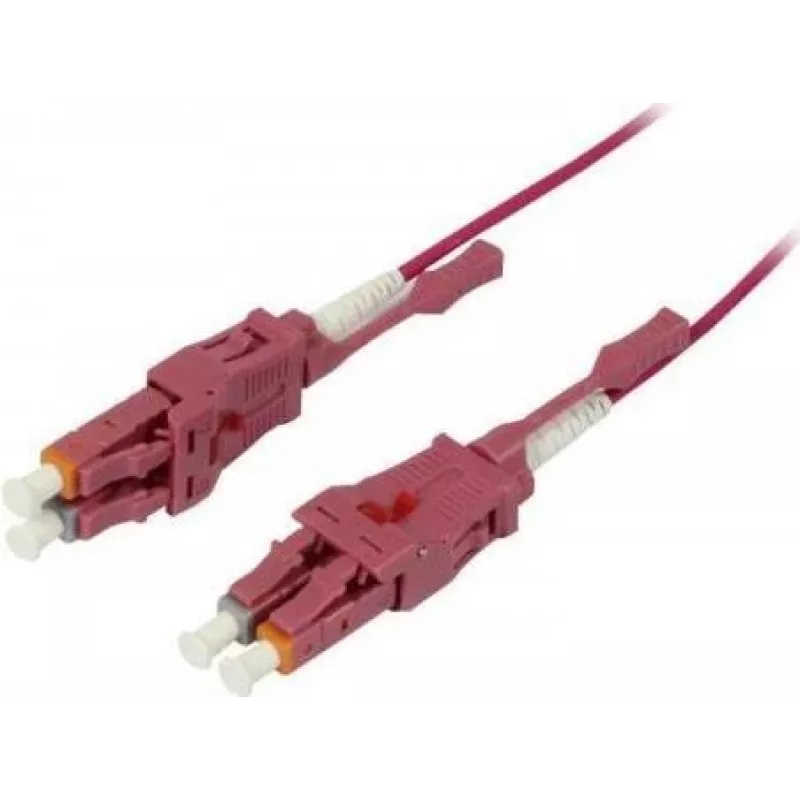

SYNERGY21 Cable de conexión de fibra óptica 20m LC-LC OM4 Uniboot giratorio Push/Pull 2mm LSZH Rojo

The SYNERGY21 S215559 is a high-performance 20-meter fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring a duplex LC to LC connection with OM4 multimode fiber, this cable delivers reliable high-speed data transmission over short to medium distances. The innovative Uniboot design with rotatable polarity and push/pull tab simplifies installation and polarity reversal, while the 2mm LSZH jacket ensures safety and durability.

Advantages

Optimized for 40G and 100G Ethernet applications, the OM4 fiber supports higher bandwidth over longer distances compared to OM3. The rotatable Uniboot connector allows easy polarity changes without re-termination, saving time and reducing installation errors. The push/pull tab provides convenient handling in high-density patch panels.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments
• High-speed backbone connections

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM4
• Core/Cladding: 50/125 µm
• Connectors: 2x LC Duplex (Male) to 2x LC Duplex (Male)
• Length: 20 meters
• Number of fibers: 2 (Duplex)
• Jacket diameter: 2 mm
• Connector design: Uniboot, rotatable polarity, push/pull tab
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating wavelengths: 850 nm / 1300 nm
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-density environments where space and polarity management are critical.
