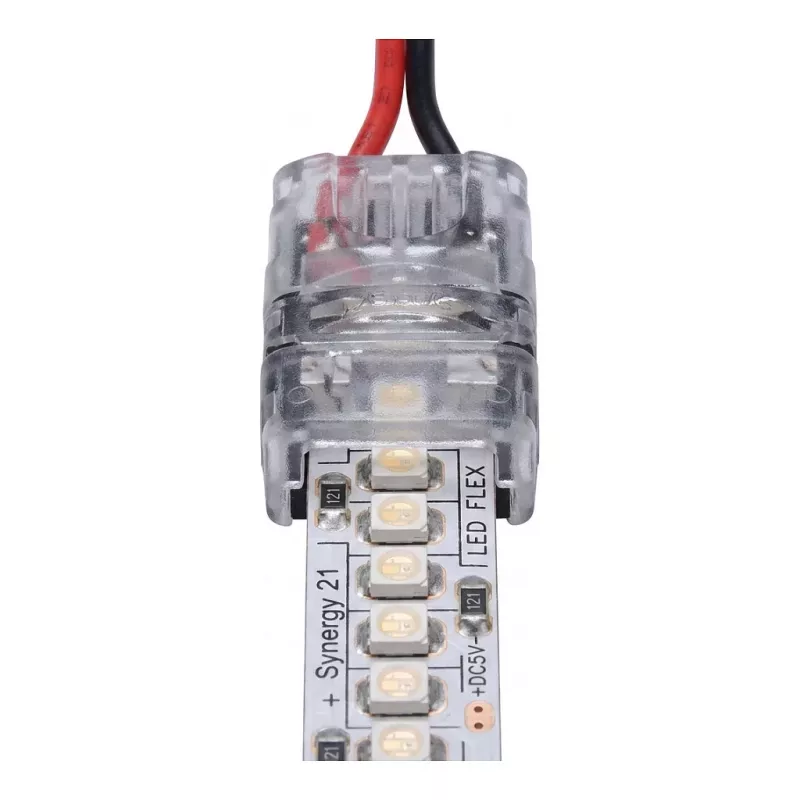

Synergy 21 Conector Tira a Cable Easy Connect para Tira LED FLEX 12mm HD

The Synergy 21 LED FLEX Strip Easy Connect Strip to Wire Connector 12mm HD is a high-quality, solderless connector designed for quick and reliable connections between 12mm wide 5-pin LED strips and wires. This tool-free clip-on connector ensures a secure electrical connection without the need for soldering, making installation fast and efficient. Ideal for extending LED strip runs or connecting to power supplies and controllers, it supports 5V, 12V, and 24V DC systems with a maximum current rating of 5A. The connector is made from durable PC plastic and copper, with a white/transparent finish, and is rated IP20 for indoor use. Compatible with Synergy 21 LED FLEX Strips and other 12mm 5-pin LED strips.

Advantages

Tool-free installation saves time and effort. Solderless design eliminates the need for specialized equipment. Secure clip-on mechanism ensures reliable contact. Versatile voltage compatibility (5V/12V/24V). Compact and durable construction.

Suitable for

• Connecting LED strips to power supplies
• Extending LED strip runs
• Connecting LED strips to controllers
• DIY LED lighting projects

Key specifications

• Product Type: LED Strip Connector
• Connector Type: Strip to Wire
• Strip Width: 12 mm
• Number of Contacts: 5-pin
• Connection Method: Solderless, Clip-on
• Material: PC Plastic, Copper
• Color: White / Transparent
• Voltage Rating: 5V / 12V / 24V DC
• Current Rating: Max. 5A
• Wire Gauge: 20-22 AWG
• IP Rating: IP20
• Operating Temperature: -20°C to +45°C
• Series: Easy Connect HD

Recommendations

For best results, use with Synergy 21 LED FLEX Strips and ensure the strip width is 12mm with 5-pin configuration. Suitable for indoor use only.
