Synergy 21 Unión Tira a Tira Easy Connect para Tira LED FLEX 10mm CCT

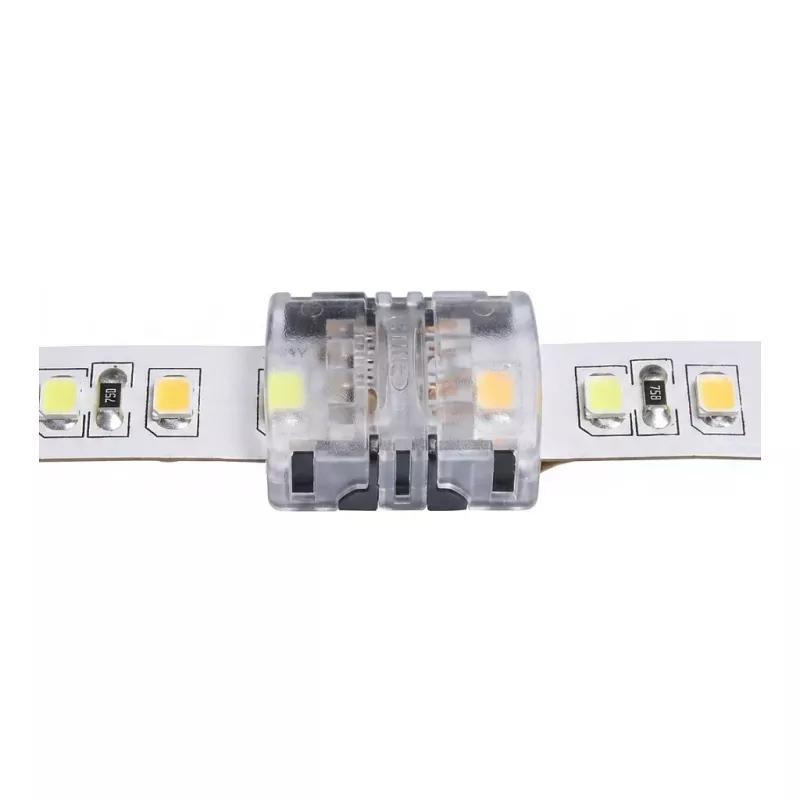

The Synergy 21 LED FLEX Strip Easy Connect Strip-to-Strip Joint 10mm CCT is a high-quality, solderless connector designed for quick and reliable connections between LED strip segments. This clip-on joint ensures a secure electrical and mechanical bond without the need for tools or soldering, making installation fast and hassle-free. Compatible with 10mm wide CCT (Correlated Color Temperature) LED strips, it supports both 12V and 24V DC systems and handles up to 5A current. The transparent/white polycarbonate and copper construction provides durability and optimal conductivity for indoor lighting applications.

Advantages

Tool-free installation saves time and effort. Solderless design eliminates the risk of cold joints and simplifies maintenance. Compact form factor maintains a low profile along the strip. Reliable 4-pin connection ensures consistent power delivery and color control for CCT strips. Versatile voltage compatibility (12V/24V) suits a wide range of LED strip projects.

Suitable for

• Connecting two segments of 10mm CCT LED strip
• Extending LED strip runs in residential or commercial lighting
• Repairing or replacing damaged sections of LED strip
• DIY lighting projects requiring quick, solderless connections

Key specifications

• Product Type: LED Strip Connector
• Connector Type: Strip-to-Strip Joint
• LED Strip Width Compatibility: 10 mm
• LED Strip Type Compatibility: CCT (Correlated Color Temperature)
• Number of Pins: 4-Pin
• Connection Method: Solderless / Clip-on
• System: Easy Connect
• Voltage Compatibility: 12V / 24V DC
• Max Current Rating: 5 A
• Material: PC (Polycarbonate), Copper
• Color: Transparent / White
• Application Environment: Indoor
• IP Rating: IP20
• Operating Temperature: -20°C to +60°C
• Installation: Tool-free clip-on
• Quantity per Pack: 1 Piece

Recommendations

For best results, ensure the LED strip end is clean and cut precisely. This connector is designed for use with 10mm wide CCT strips only. Always verify voltage and current ratings of your LED strip to match the connector's specifications. Suitable for indoor use only; not recommended for outdoor or damp locations.
