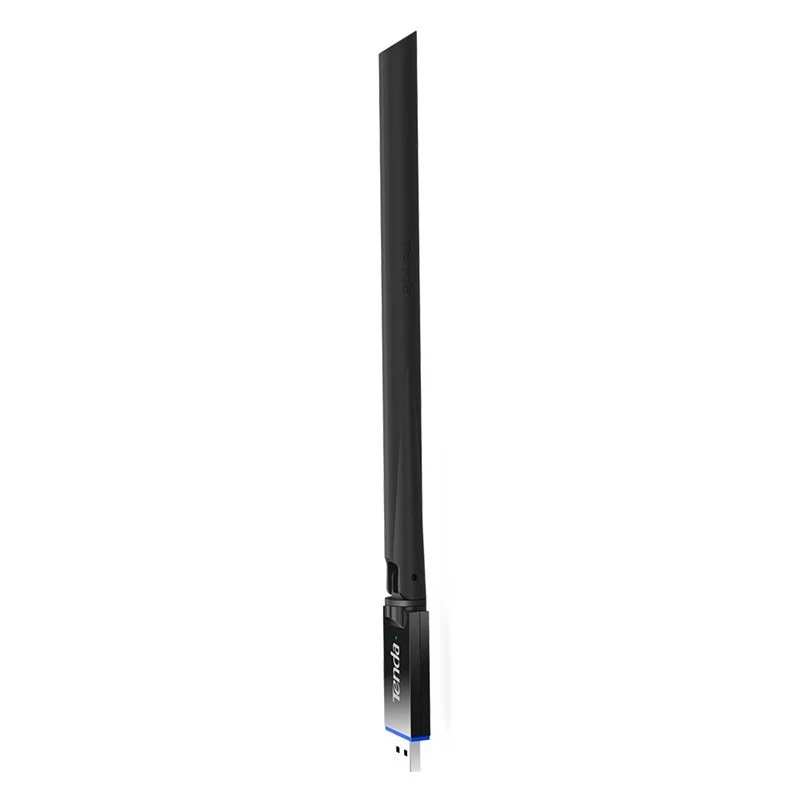

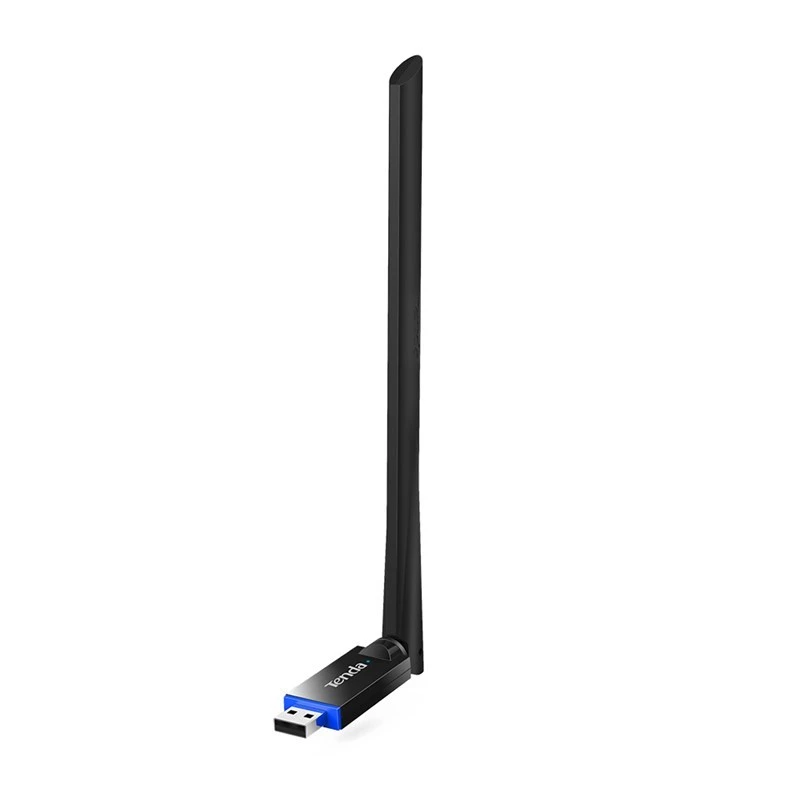

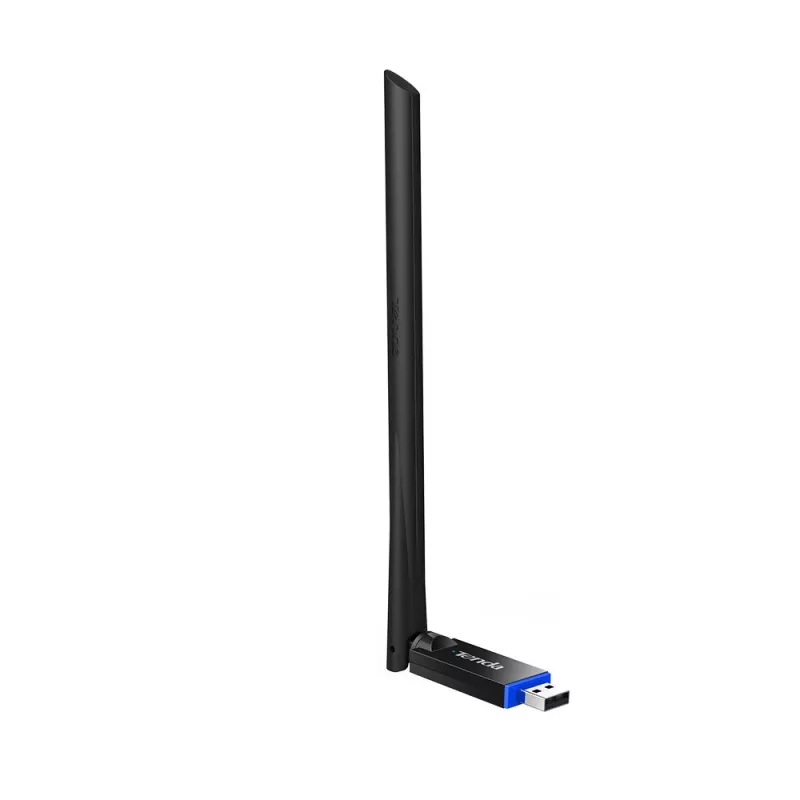

Tarjeta de red Tenda U10 WLAN 433 Mbit/s

The Tenda U10 is a compact USB wireless network adapter that supports dual-band 802.11ac (Wi‑Fi 5) for portable devices and computers. It provides up to 433 Mbps on the 5 GHz band and up to 200 Mbps on the 2.4 GHz band, includes an external 6 dBi high‑gain antenna, supports MU‑MIMO and can operate as a soft AP to create a portable Wi‑Fi hotspot. The adapter is USB powered and compatible with Windows 10, 8.1, 8, 7 and XP for straightforward wireless access.

Advantages

The external 6 dBi antenna increases signal strength and extends transmission range compared with internal antennas. Dual‑band AC650 operation (433 Mbps at 5 GHz + 200 Mbps at 2.4 GHz) with MU‑MIMO improves throughput for streaming and online tasks. Automatic plug‑and‑play installation simplifies setup on supported Windows systems. Soft AP mode lets the adapter share a wired connection as a Wi‑Fi hotspot for nearby mobile devices.

Suitable for

• Upgrading a desktop or laptop to dual‑band 802.11ac Wi‑Fi
• Streaming video and online gaming on 5 GHz networks
• Creating a temporary Wi‑Fi hotspot from a networked PC (soft AP)
• Extending wireless range where a stronger external antenna is needed

Key specifications

• Model: Tenda U10 (MPN: U10, EAN: 6932849428445)
• Wireless standard: IEEE 802.11a/b/g/n/ac (Wi‑Fi 5)
• Maximum data rate: 433 Mbps (5 GHz) + 200 Mbps (2.4 GHz)

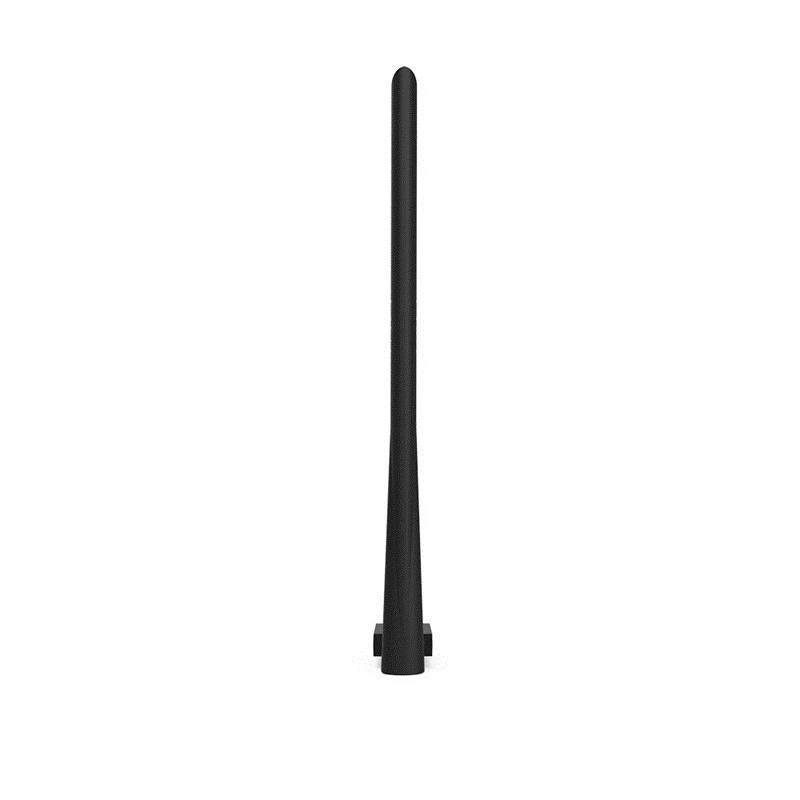

• Antenna: external 6 dBi high‑gain antenna
• Features: dual‑band, MU‑MIMO, soft AP (hotspot) support
• Interface: USB (WLAN host interface)
• Compatibility: Windows 10 / 8.1 / 8 / 7 / XP
• Color: Black

How to use

Insert the Tenda U10 into an available USB port on a Windows PC. The adapter is designed to install automatically; wait for the operating system to complete driver setup. For hotspot functionality, enable soft AP mode in the adapter’s software or Windows network settings so other devices can connect through the host computer. Position the external antenna for best reception and, if necessary, switch between 2.4 GHz and 5 GHz to suit distance and throughput needs.

Recommendations

Place the external antenna vertically and keep the adapter clear of large metal objects to improve signal. Use the 5 GHz band for bandwidth‑intensive tasks at close range and the 2.4 GHz band for better range. Ensure the host computer runs a supported Windows version for automatic installation.
