Tarjeta DeLOCK PCI Express 4.0 x16 a 4 x NVMe M.2 Key M internos con disipador y ventilador

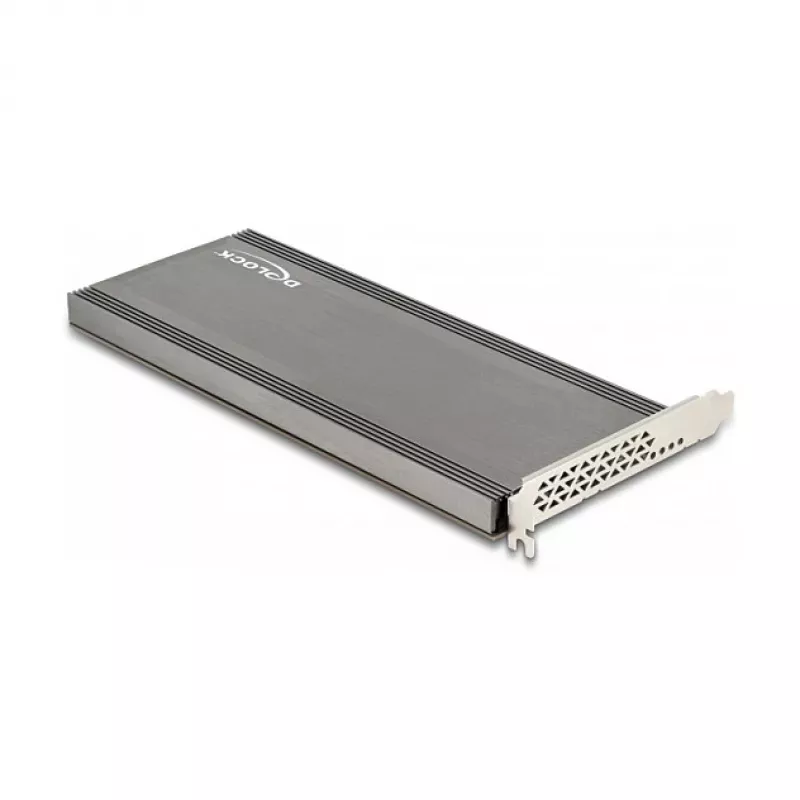

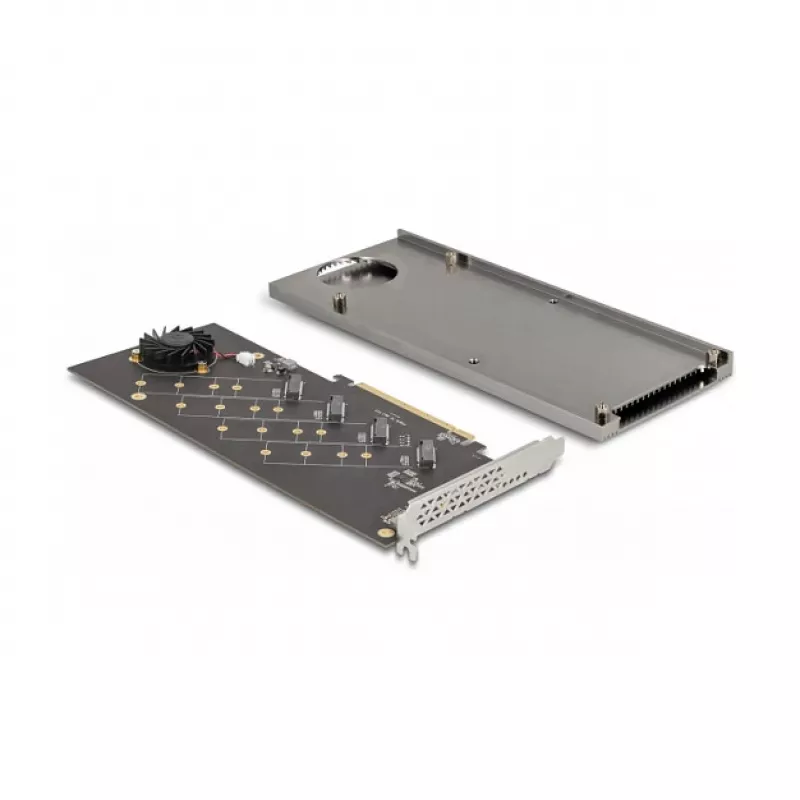

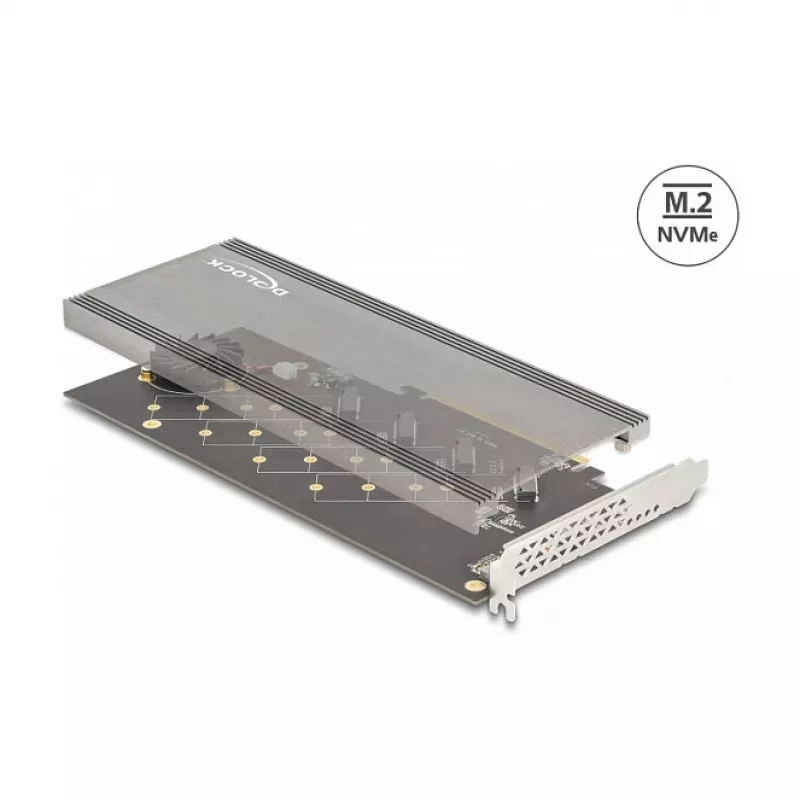

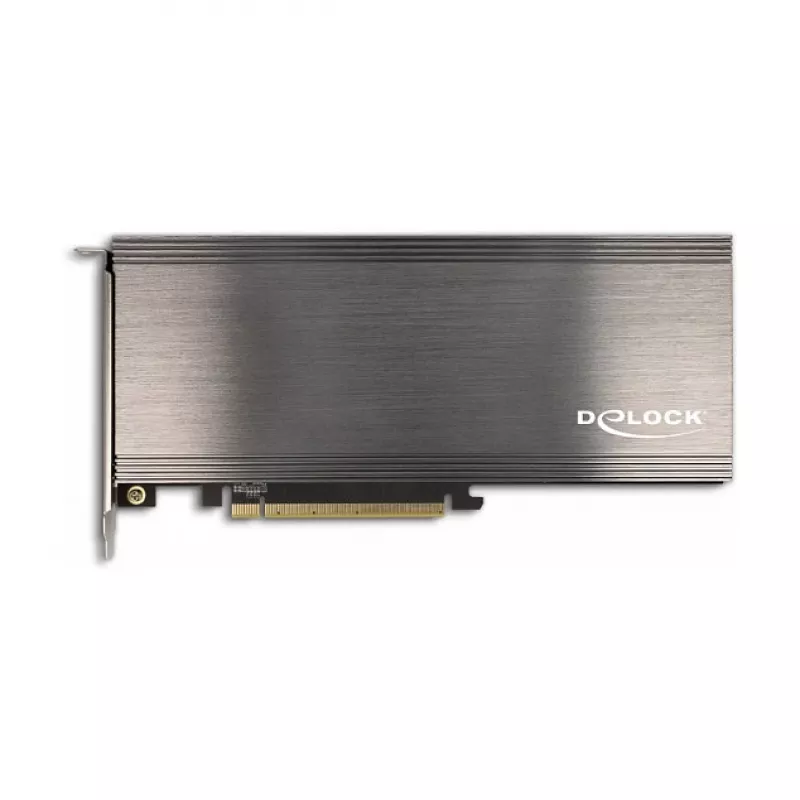

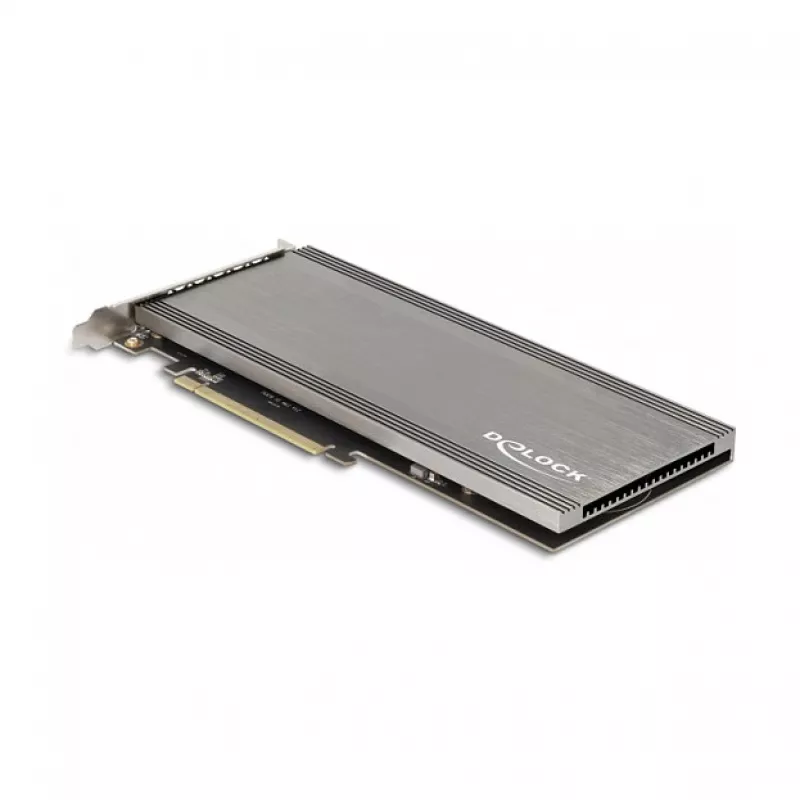

This PCI Express 4.0 x16 expansion card by DELOCK provides four internal NVMe M.2 Key M slots for SSDs in sizes 2280, 2260, 2242 and 2230. The card includes a large heatsink and an integrated fan to ensure active cooling of installed M.2 modules. The device is compatible with Windows and Linux operating systems and comes in a grey finish.

Advantages

The card supports up to four NVMe M.2 drives simultaneously and offers active cooling via heatsink and fan to maintain drive temperatures under load. It uses PCIe 4.0 x16 bandwidth for high-speed storage performance. Its compact slot design accepts common M.2 form factors 2280, 2260, 2242 and 2230.

Suitable for

Key specifications

How to use

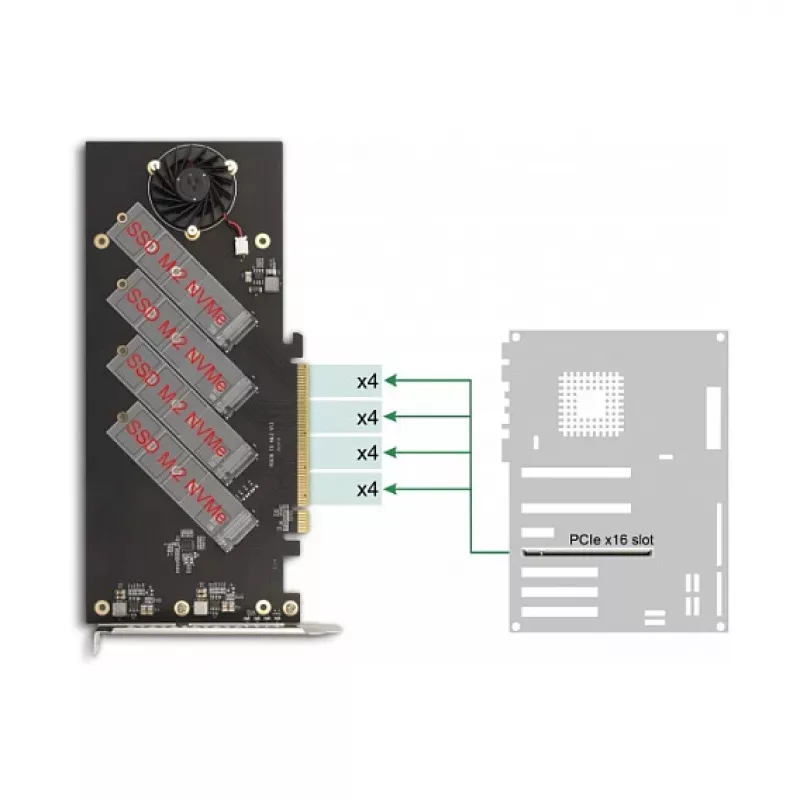

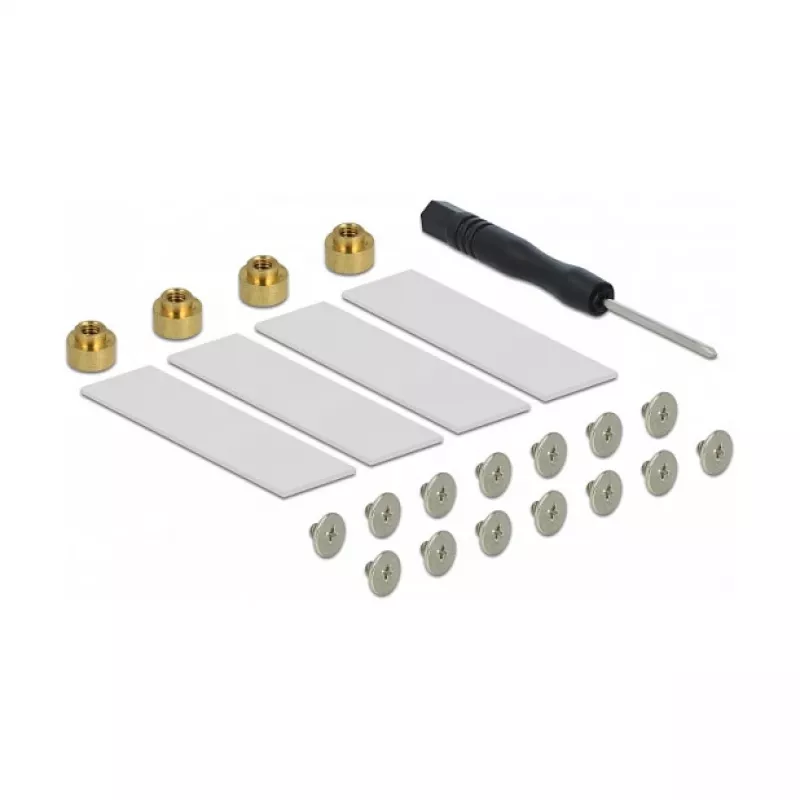

Install the card into a free PCIe x16 slot on a compatible motherboard and enable PCIe bifurcation in the motherboard BIOS to split the PCIe lanes to multiple M.2 ports. Mount M.2 NVMe SSDs of supported lengths into the corresponding M.2 sockets and secure them with the provided screws or standoffs. Connect the card’s power or fan connectors if required by your chassis, then start the system and verify the drives are detected by the operating system.

Recommendations

Ensure your motherboard supports PCIe bifurcation and that BIOS settings are configured before installation. Maintain adequate case airflow in addition to the card’s fan to achieve optimal cooling for multiple NVMe drives under sustained load.
