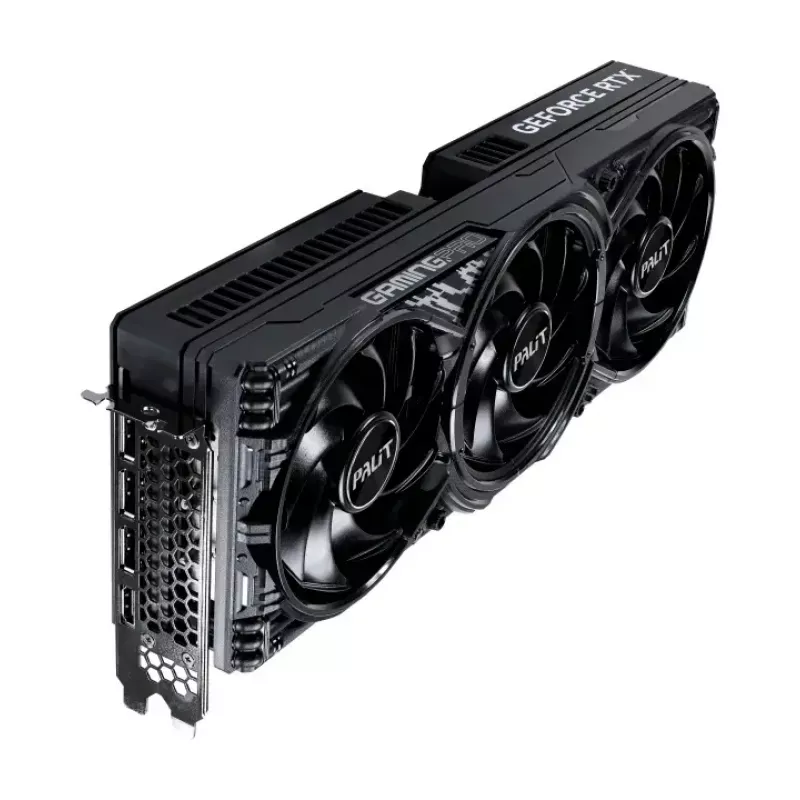

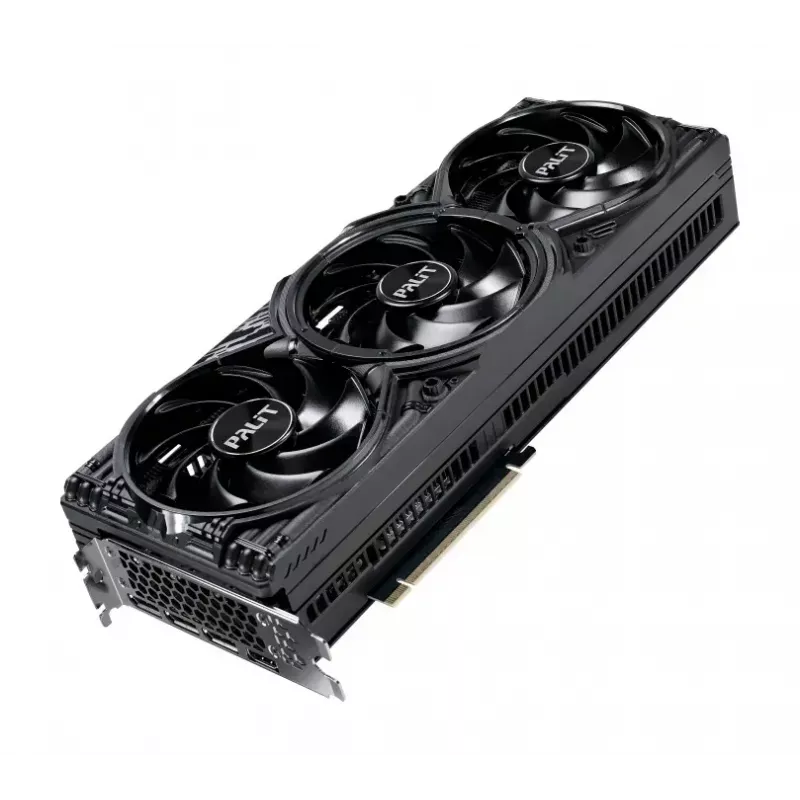

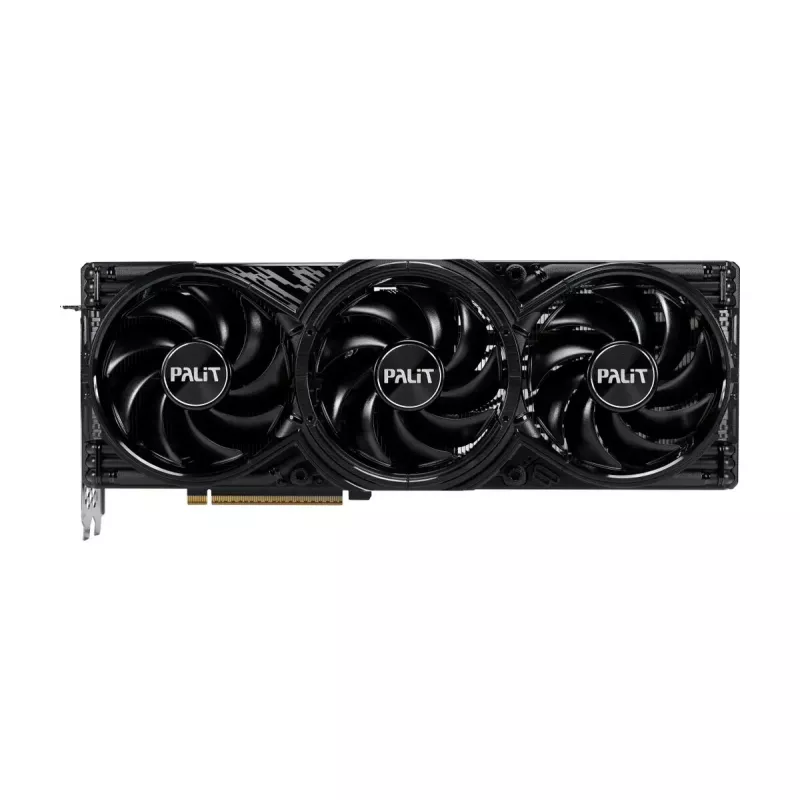

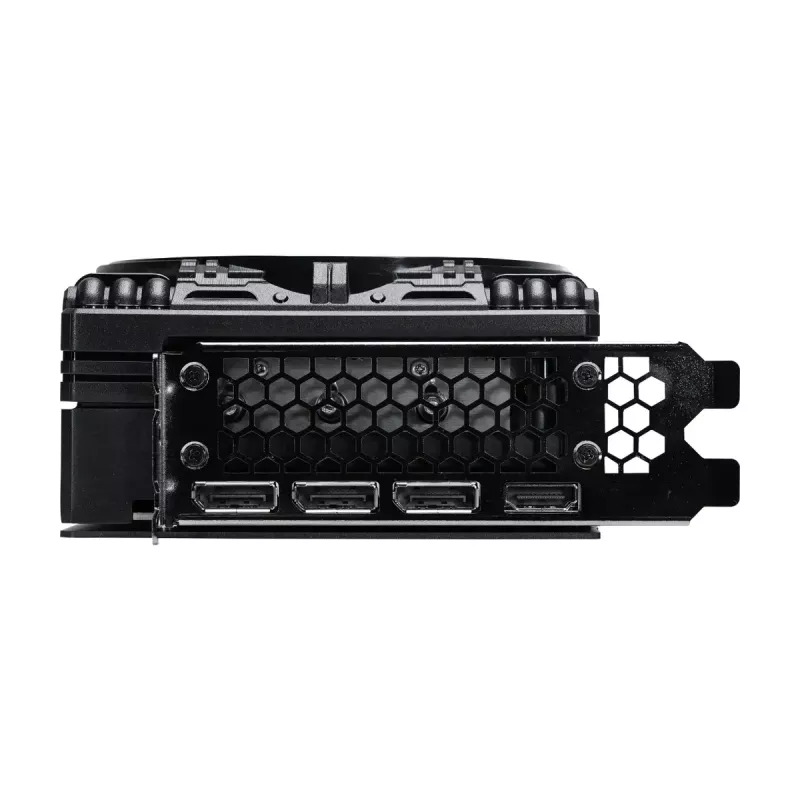

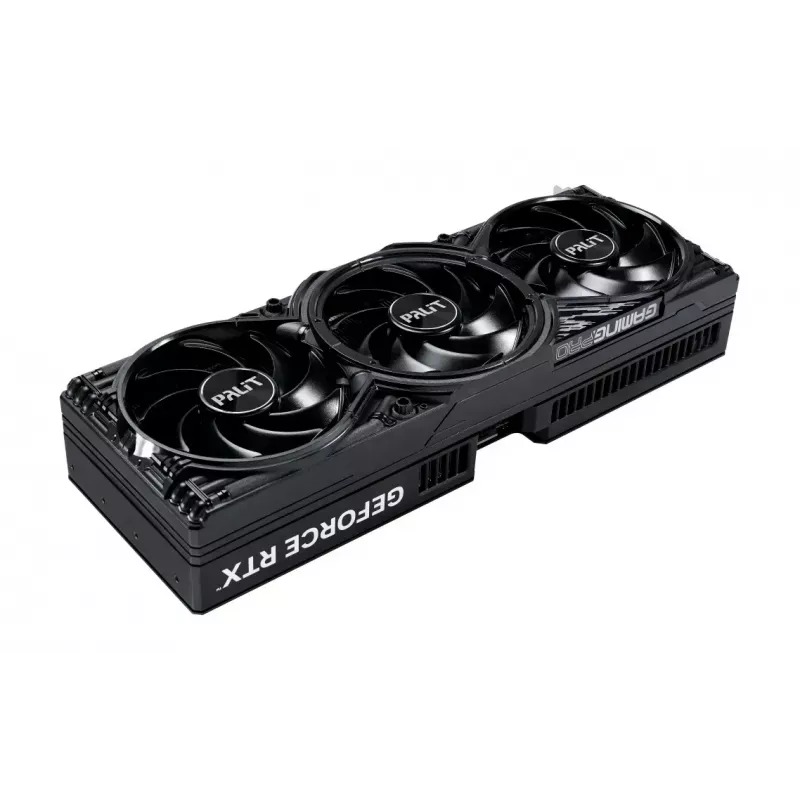

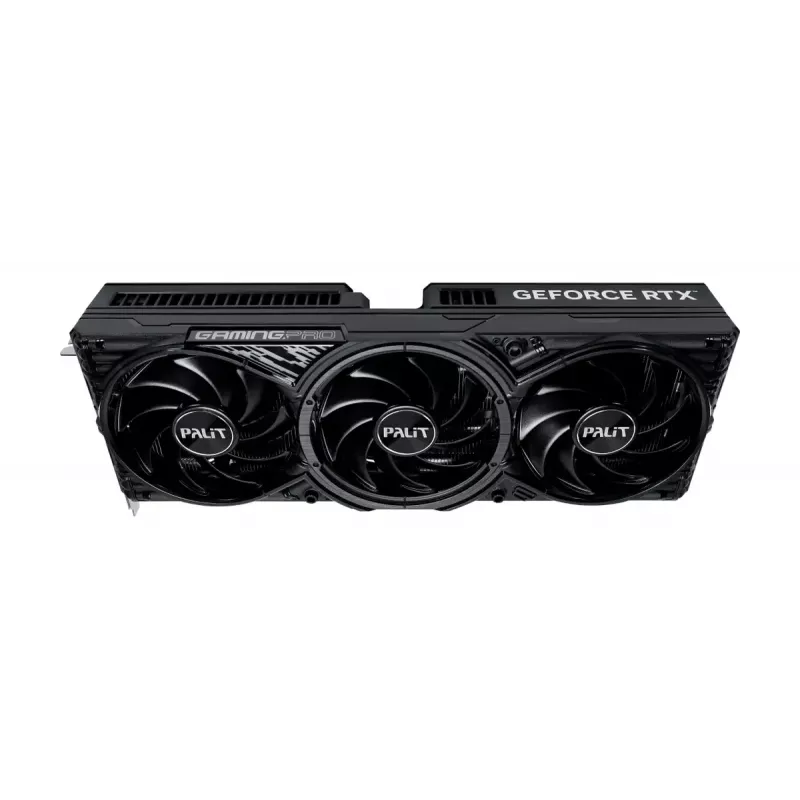

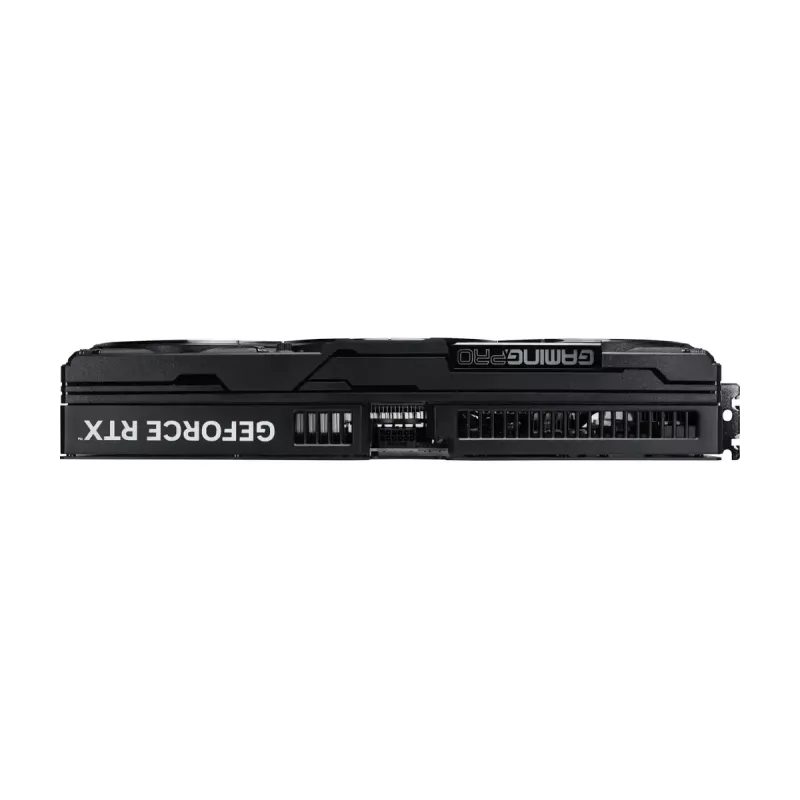

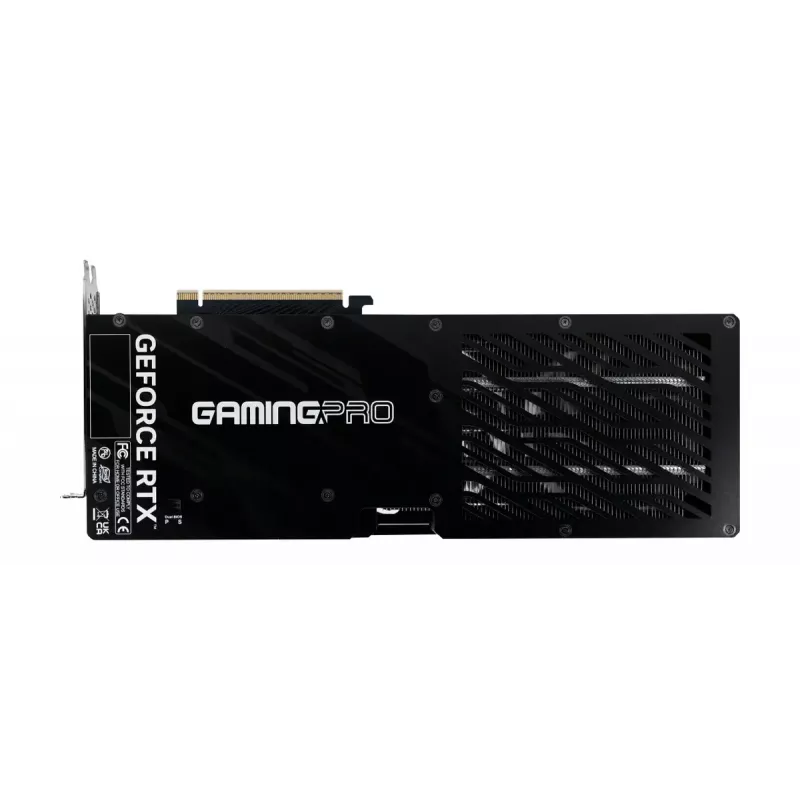

Tarjeta gráfica Palit GeForce RTX 5080 16 GB GDDR7

The Palit GeForce RTX 5080 GamingPro OC combines a high-performance GeForce RTX 5080 GPU with 16 GB of GDDR7 memory and an industrial-inspired design. The card features advanced cooling technologies including TurboFan 4.0, Air Deflector, Composite Heat Pipes and a Vapor Chamber that together improve thermal efficiency. A full-cover die-cast frame, dual BIOS, 5V ARGB lighting and three active fans provide a balance of durability, customization and cooling performance for gaming, content creation and AI workloads.

Advantages

The cooling system integrates TurboFan 4.0 with winglets and blade-back grooves, a 30° fin angle, Composite Heat Pipes with grooved and sintered powder structures, and a Vapor Chamber that fully covers the GPU and VRAM for improved heat spread. The die-cast full-cover frame increases structural protection and anti-bending resistance, while digital PWM enables flexible voltage control and reduced interference. Dual-ball bearings, IP5X dust resistance and reduced vibration extend fan lifespan. Dual BIOS offers Performance and Silent modes, and a universal 5V ARGB connector enables plug-and-play lighting synchronization.

Suitable for

• High-end gaming at up to 7680 x 4320 resolution
• 3D rendering and GPU-accelerated content creation
• AI workloads and compute tasks that benefit from a powerful GPU
• Systems requiring customizable ARGB lighting and stable long-term operation

Key specifications

• Graphics processor: GeForce RTX 5080
• Memory: 16 GB GDDR7
• Memory bus: 256 bit
• Core boost frequency: 2295 MHz (factory)
• Interface: PCI Express 5.0
• Cooling: Vapor Chamber, Composite Heat Pipes, TurboFan 4.0, 3 fans
• Lighting: 5V ARGB (universal connector)
• Features: Dual BIOS, digital PWM, dual-ball bearings, IP5X dust resistance

How to use

Install the card into a compatible PCI Express 5.0 slot on a motherboard with sufficient case clearance and power supply capacity. Connect the required power cables according to the system manufacturer’s instructions and attach the 5V ARGB connector to an ARGB header or controller for synchronized lighting. Use the Palit ThunderMaster utility to monitor temperatures, adjust fan curves, switch between Dual BIOS modes (Performance or Silent) and fine-tune overclock settings. Ensure adequate case airflow to maximize the effectiveness of the Vapor Chamber and heat pipe cooling.

Recommendations

For silent everyday use, keep the card in Silent BIOS mode; fans remain inactive under light loads and engage around ~60°C or when TGP approaches ~150W. For sustained heavy loads, use Performance mode and ensure case intake/exhaust airflow is unobstructed. Regularly clean dust from the fans and heatsink (observing IP5X protection limits) to maintain optimal cooling and prolong fan life. If desired, use Palit Maker support and 3D printing to customize the cooler cover.
