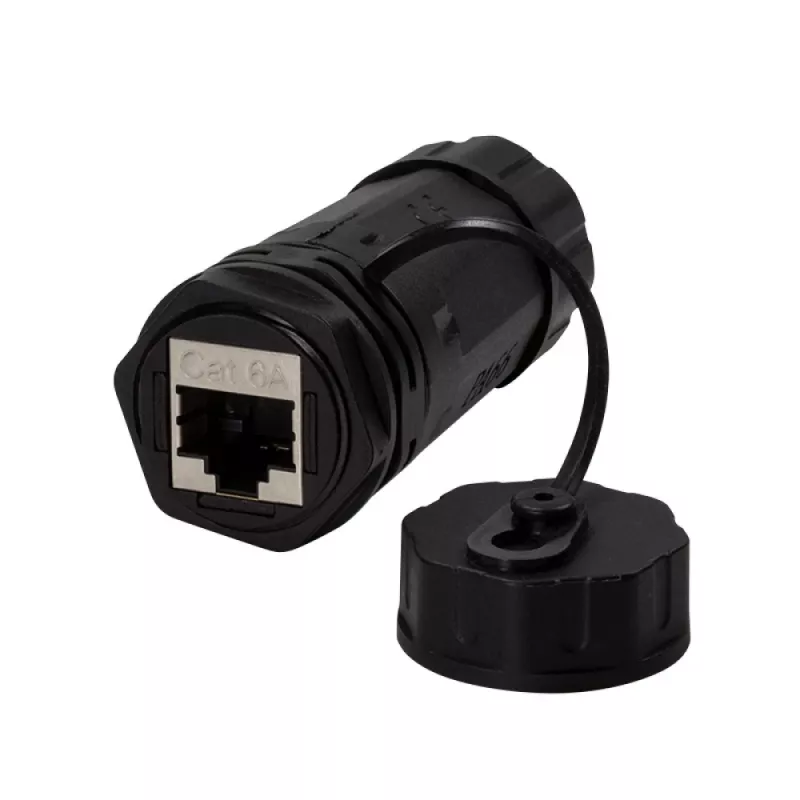

TECHLY IWP-MD C6A-IPGLT acoplador RJ45 hembra a RJ45 hembra IP68 Cat6A SFTP, negro

The TECHLY IWP-MD C6A-IPGLT is a high-performance, one-sided hermetic RJ45 coupler designed for industrial and outdoor applications. It provides a reliable, waterproof connection for Cat6A SFTP cables, ensuring data integrity in harsh environments.

Advantages

This coupler offers IP68 protection against dust and water ingress, making it ideal for outdoor, industrial, and harsh environments. It supports 10 Gigabit Ethernet (10GbE) with a bandwidth of 500 MHz, ensuring high-speed data transmission. The threaded coupling mechanism provides a secure, vibration-resistant connection, and the UV-resistant PA66 housing ensures long-term durability.

Suitable for

• Industrial Ethernet networks in factories and automation systems
• Outdoor surveillance and security camera installations
• Telecommunications and data center applications requiring waterproof connections
• Harsh environments with exposure to moisture, dust, and temperature extremes

Key specifications

• Connector Type: RJ45 Female to RJ45 Female
• Ethernet Standard: Cat6A (Category 6A)
• Ingress Protection: IP68
• Shielding: SFTP (Shielded Foiled Twisted Pair)
• Data Transfer Rate: 10 Gigabit Ethernet (10GbE)
• Bandwidth: 500 MHz
• Mounting Type: Panel Mount / Bulkhead
• Housing Material: UV-resistant Industrial-grade Plastic (PA66)
• Contact Material: Phosphor Bronze, Gold-plated (50µm)
• Operating Temperature: -20°C to +80°C
• Humidity Resistance: Up to 95% non-condensing
• Vibration Resistance: Yes
• Shock Resistance: Yes
• Standard Compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Backward Compatibility: Cat6, Cat5e, Cat5
• Connection Method: Threaded Coupling
• Color: Black
• Number of Ports: 1

Recommendations

For optimal performance, use with Cat6A SFTP cables and ensure proper tightening of the threaded coupling to maintain IP68 protection. Suitable for both indoor and outdoor installations where moisture and dust are a concern.
