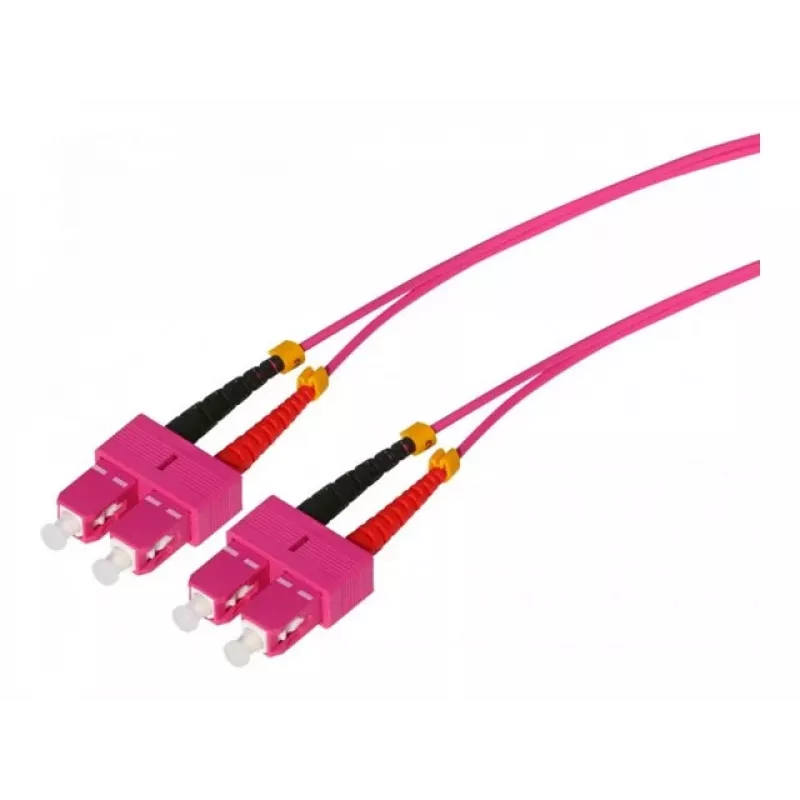

Tecline HD Cable de parcheo de fibra óptica OM4 multimodo, SC dúplex a SC dúplex, 50/125 µm, violeta brezo, 1,0 m 798SS01

High-speed data centers and enterprise networks demand reliable fiber links that can handle 10/40/100 Gbps over multimode distances. This Tecline HD patch cable uses OM4 laser-optimized fiber to deliver extended reach at 850 nm, while the SC duplex connectors provide a secure snap-in connection for patch panels and active equipment.

Who is it for

Network engineers and installers who need a dependable, factory-terminated OM4 jumper for backbone or horizontal cabling. The 1.0 m length is ideal for patching between adjacent ports in racks and enclosures.

Main features

• OM4 multimode fiber with 50/125 µm core/cladding for high bandwidth
• SC duplex to SC duplex connectors, male-male, for standard transceivers
• Heather violet LSZH jacket for low smoke and halogen-free safety
• Insertion loss ≤ 0.3 dB and return loss ≥ 30 dB for consistent performance

Specifications

• Cable length: 1.0 m
• Fiber type: Multimode OM4, 50/125 µm
• Connectors: SC Duplex to SC Duplex
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Heather violet
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Standards compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.3

Tips

Pair with OM4-compatible transceivers to achieve 40/100 Gbps links up to 150 m at 850 nm. Keep bend radius above 30 mm during installation to avoid microbending losses.
