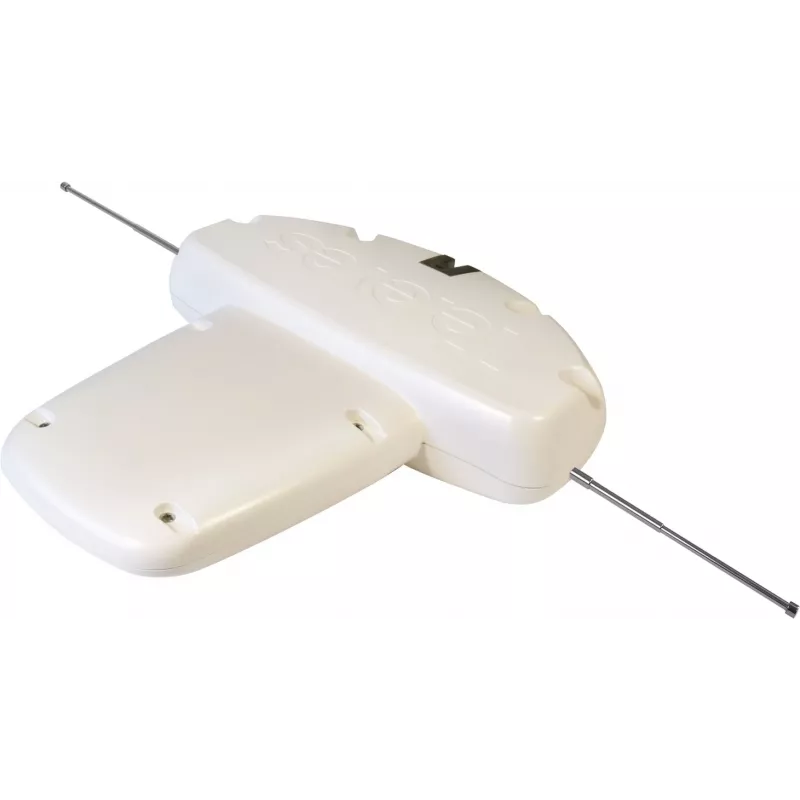

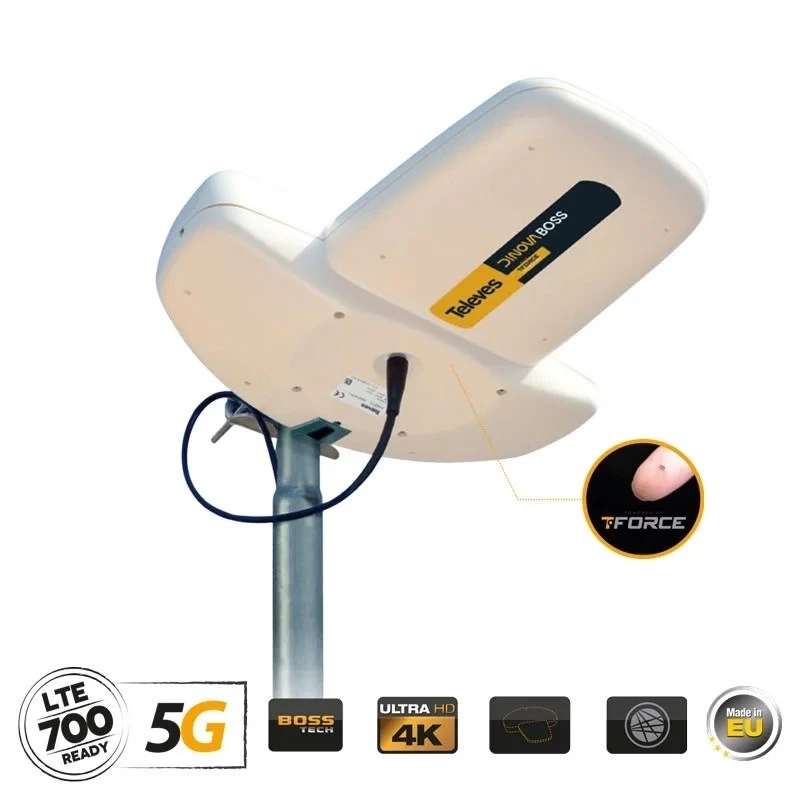

TELEVES DINOVA BOSS Antena exterior DVB-T/T2 (144021)

The TELEVES DINOVA BOSS is a high-performance intelligent outdoor antenna designed for DVB-T and DVB-T2 reception. Featuring BOSS (Broadband Optimised Signal System) technology with automatic gain control, it ensures optimal signal quality in both urban and rural environments. The antenna covers BIII (174-230 MHz) and UHF (470-694 MHz) bands, with integrated LTE/5G filtering to minimize interference.

Advantages

BOSS technology automatically adjusts gain for maximum signal quality, reducing noise and distortion. The antenna is compact, lightweight, and weather-resistant, with a wind load capacity of up to 140 N at 150 km/h. It supports both horizontal and vertical polarization, making it versatile for various installation scenarios.

Suitable for

• DVB-T and DVB-T2 digital terrestrial television reception
• Urban areas with high signal density
• Rural areas with weak or variable signals
• Installations requiring automatic gain control

Key specifications

• Frequency Bands: BIII (174-230 MHz), UHF (470-694 MHz)
• Gain (BOSS OFF): 10 dBi (BIII), 13 dBi (UHF)
• Gain (BOSS ON): 32 dB (BIII), 42 dB (UHF) auto-regulated
• Noise Figure: 2.5 dB
• Max Output Level (BOSS ON): 105 dBµV
• LTE/5G Filtering: Yes (C60 / LTE700 Ready)
• Power Supply: 12-24 VDC via coaxial cable
• Current Consumption: 45 mA
• Connector: F-type
• Polarization: Horizontal or Vertical
• Material: Aluminium, ABS Plastic
• Wind Load: 100 N (130 km/h), 140 N (150 km/h)

Recommendations

For best performance, use high-quality coaxial cable and ensure proper grounding. The antenna should be mounted outdoors with a clear line of sight to the broadcast tower. BOSS technology is especially beneficial in areas with fluctuating signal strength.
