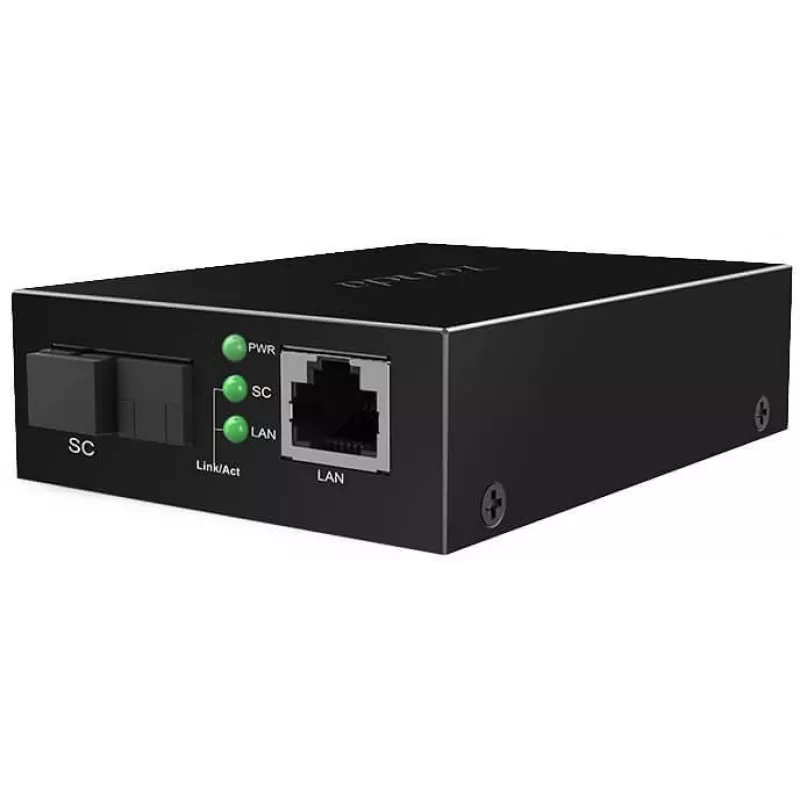

Tenda TFC300A Convertidor de Medios Ethernet a Fibra Óptica SC Monomodo 20 km

The Tenda TFC300A is a high-performance media converter designed to extend your network beyond the limitations of copper cabling. It converts 10/100Mbps Ethernet signals to 100Mbps fiber optic signals over single-mode fiber, supporting distances up to 20 km. Ideal for connecting remote networks, surveillance systems, or extending LAN segments, this converter ensures reliable, interference-free data transmission.

Advantages

With its plug-and-play installation, the TFC300A requires no configuration. The metal housing provides durability and effective heat dissipation, while LED indicators offer real-time status monitoring. It supports jumbo frames up to 1536 bytes and full-duplex operation on the fiber port, maximizing throughput.

Suitable for

• Extending Ethernet networks over long distances (up to 20 km)
• Connecting remote offices or buildings
• Fiber-to-the-desktop applications
• Surveillance systems requiring long-distance video transmission

Key specifications

• Conversion Type: RJ45 to Fiber (Single-mode)
• Ethernet Port: 1x RJ45 10/100Mbps auto-negotiation
• Fiber Port: 1x SC Simplex, 100Mbps, single-mode
• Wavelength: TX 1310nm / RX 1550nm
• Max Distance: 20 km
• Standards: IEEE 802.3, 802.3u, 802.3x
• Power: External DC 5V/1A adapter
• Operating Temperature: 0°C to 40°C
• Dimensions: 94 x 70 x 26 mm (approx.)

Recommendations

For optimal performance, use with single-mode fiber patch cables (9/125 µm) and ensure proper termination. The TFC300A is a cost-effective solution for extending your network infrastructure without signal degradation.
