Thermal Grizzly kit de delid de CPU para AMD Ryzen 9 9950X3D (empaquetado, delid, para disipadores direct-die)

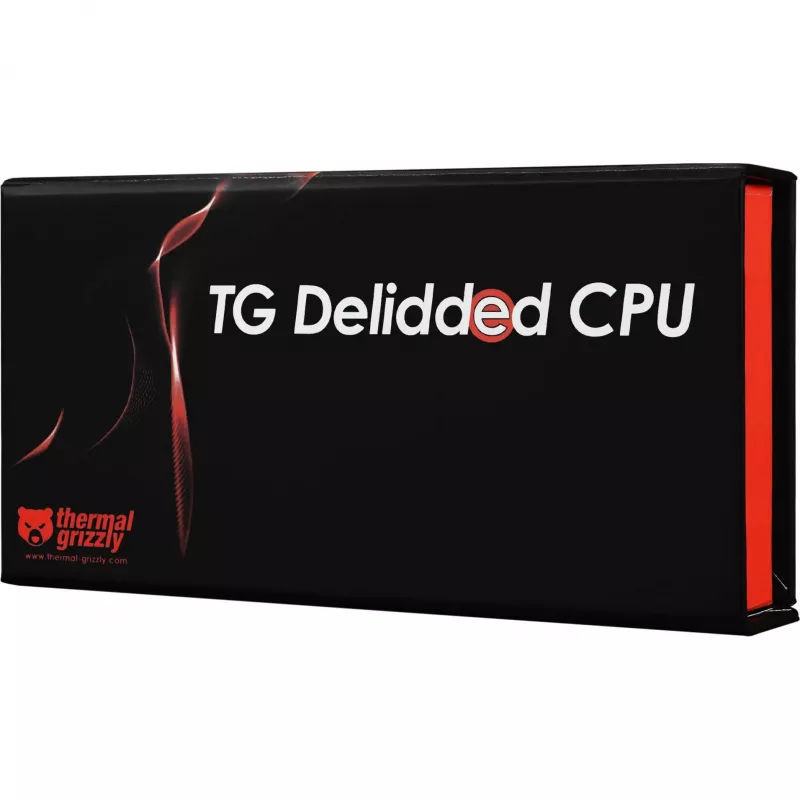

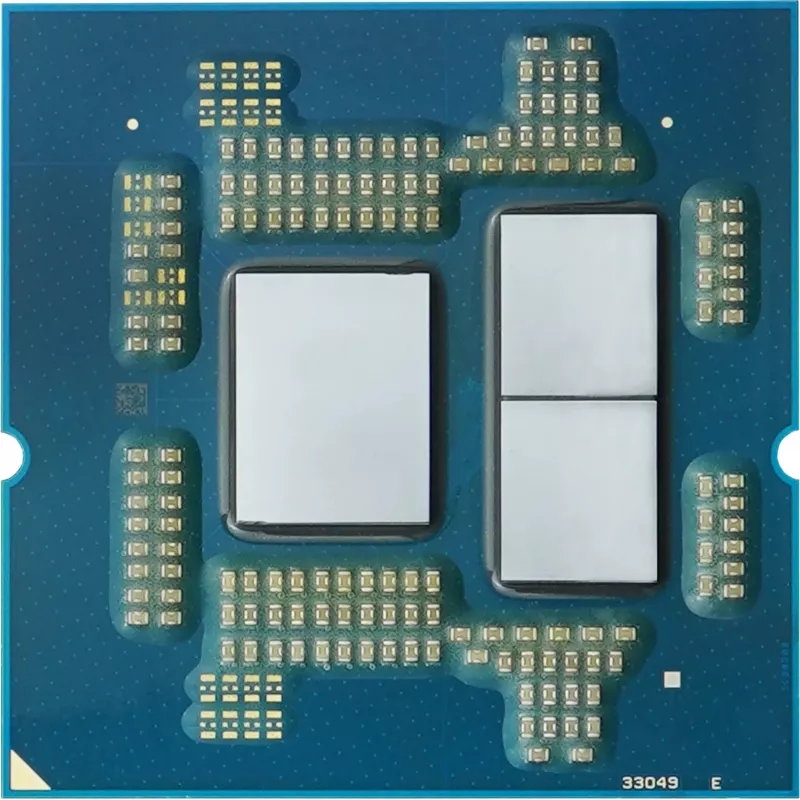

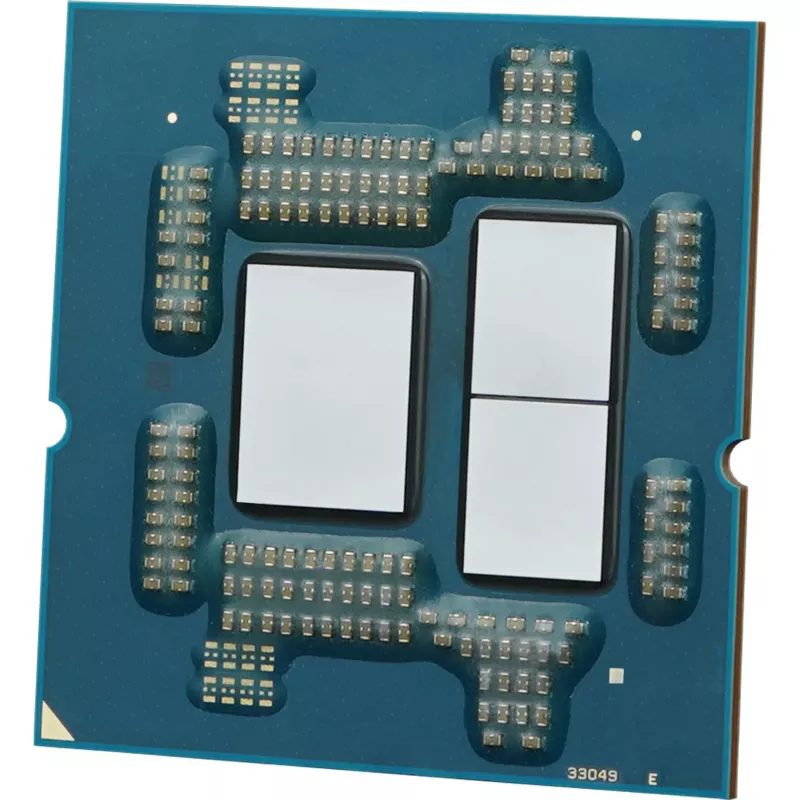

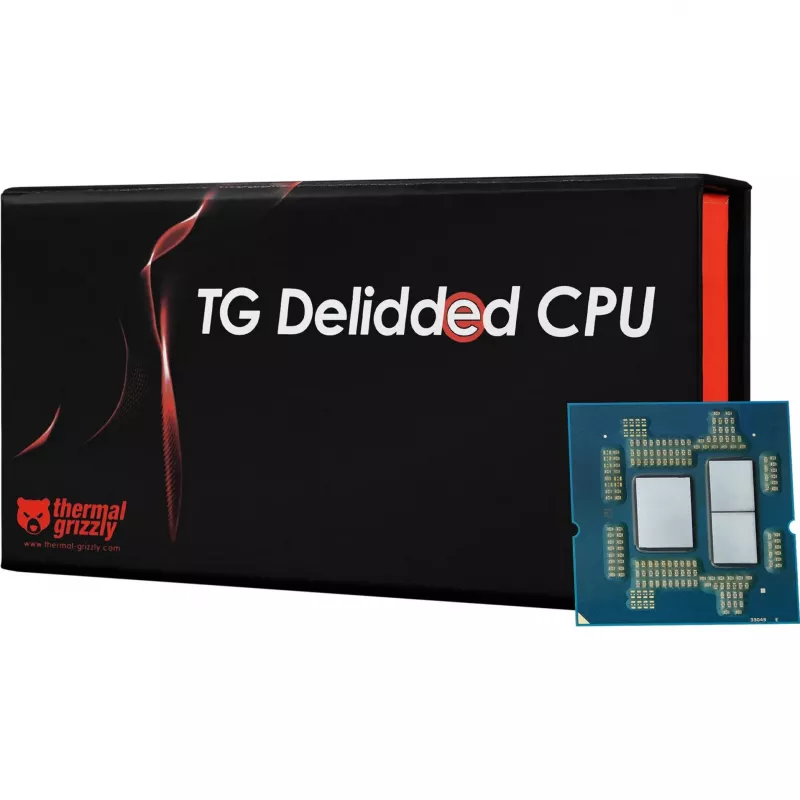

The Thermal Grizzly Delidded AMD Ryzen 9 9950X3D — boxed delidded CPU for direct-die heatsinks is a professionally prepared processor delivered without its integrated heat spreader (IHS) to enable direct-die contact with compatible cooling solutions. This boxed unit retains all CPU functionality while presenting the bare die and substrate in a manner intended for advanced thermal assemblies. It is designed to improve heat transfer efficiency when paired with direct-die cold plates, custom liquid cooling blocks, or specially prepared high-performance air or AIO coolers that support direct-die mounting.

Advantages

Removing the IHS eliminates an additional thermal interface layer between the cooling solution and the CPU die, which can reduce thermal resistance and lower operating temperatures under heavy loads. The boxed delidded unit from Thermal Grizzly is prepared to industry standards, allowing experienced builders to mount direct-die heatsinks with minimal additional modification. This configuration can enable tighter temperature control, potentially allowing sustained higher clock behavior in thermally constrained scenarios when used with an appropriate cooling solution.

Suitable for

• High-performance desktop systems requiring maximal thermal transfer
• Custom liquid cooling loops and direct-die cold plate installations
• Enthusiast overclocking and sustained heavy multi-core workloads
• System builds where reduced die-to-cooler thermal impedance is critical

Key specifications

• Processor model: AMD Ryzen 9 9950X3D (delidded, boxed)
• Condition: Integrated heat spreader removed for direct-die mounting

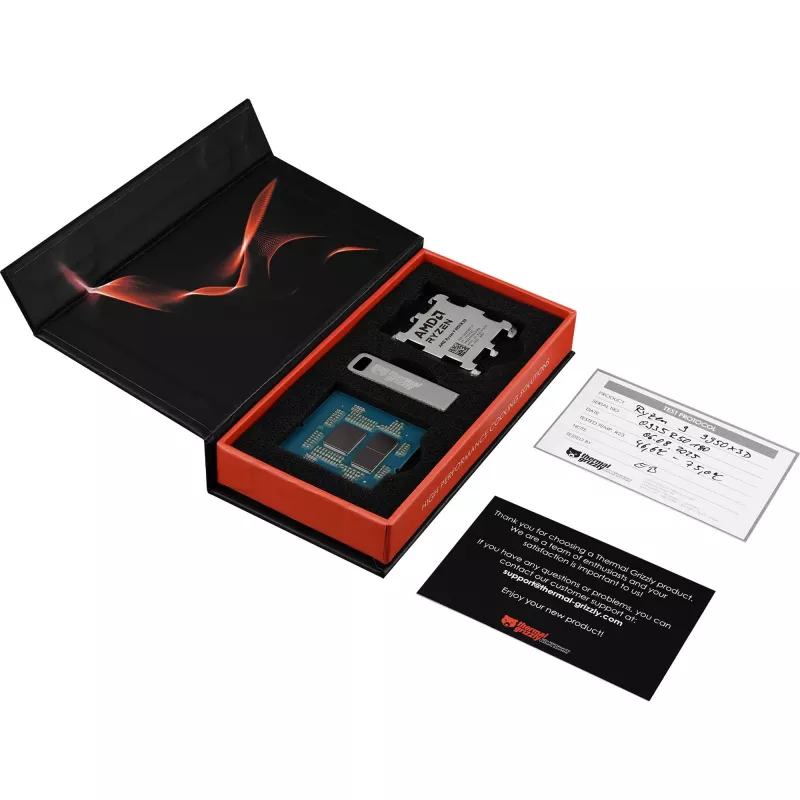

• Packaging: Boxed unit prepared for direct-die heatsink installation
• Intended cooling interface: bare die contact with compatible cold plates or blocks
• Target users: experienced builders and system integrators familiar with direct-die procedures

How to use

Install the delidded Ryzen 9 9950X3D following the cooler and motherboard manufacturer instructions for direct-die mounting. Ensure the CPU socket and surrounding components are compatible with a delidded installation and that the chosen cooling solution explicitly supports bare die contact. Apply a thin, manufacturer-recommended thermal interface material to the die or the cold plate according to the cooler vendor’s guidelines, align the cold plate or block carefully to avoid uneven pressure, and secure the mounting hardware to the torque specifications provided by the cooling system. Verify contact and perform controlled thermal testing before extended operation.

Recommendations

Only proceed with direct-die mounting if you have experience with CPU hardware modifications and cooling installations. Use a compatible cold plate or custom block designed for the Ryzen 9 die dimensions, follow safety and ESD precautions, and monitor temperatures during initial stress testing to confirm proper thermal performance.
