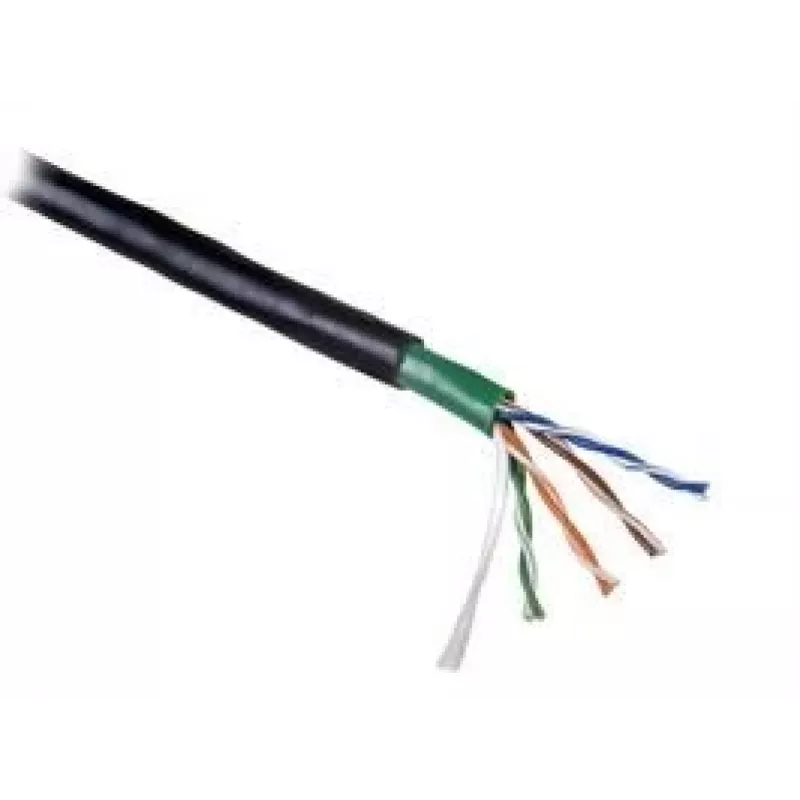

TRACER SEVEN Cable Ethernet UTP CAT 5e para exterior caja 305m negro

Running network cables outdoors exposes them to harsh conditions—UV rays, moisture, and temperature swings can quickly degrade ordinary indoor cabling. The TRACER SEVEN UTP CAT 5e Outdoor Ethernet Cable Box solves this by providing a rugged, weather-resistant solution for reliable gigabit connectivity in any outdoor environment.

Who is it for

This cable is ideal for installers, IT professionals, and DIY enthusiasts who need to extend a network between buildings, connect outdoor IP cameras, access points, or any outdoor Ethernet-enabled device. It's perfect for both residential and commercial applications where durability and performance are critical.

Main features

• Outdoor-rated PE jacket with UV resistance for long-term exposure to sunlight
• Waterproof and moisture-resistant construction, suitable for direct burial
• Pure copper conductors (24 AWG) ensure optimal signal integrity and support Power over Ethernet (PoE)
• Cat 5e performance supports up to 1000 Mbps (Gigabit Ethernet) and 100 MHz bandwidth
• 305 meters (1000 feet) in an easy-pull box for convenient installation
• Complies with TIA/EIA-568-C.2, ISO/IEC 11801, and RoHS standards
• Operating temperature range: -40°C to 60°C, suitable for extreme climates

Specifications

• Cable type: UTP (Unshielded Twisted Pair)
• Category: Cat 5e
• Length: 305 m
• Conductor material: Pure copper
• Conductor gauge: 24 AWG
• Number of pairs: 4
• Jacket material: PE (Polyethylene)
• Outer diameter: 5.8 mm
• Colour: Black
• Shielding: None
• Max data rate: 1000 Mbps
• Max bandwidth: 100 MHz

Tips

When installing outdoor Ethernet cable, always use proper weatherproof connectors and grounding where required. For direct burial, ensure the cable is placed at a sufficient depth to avoid accidental damage. Test the cable run before finalizing the installation to verify performance.
