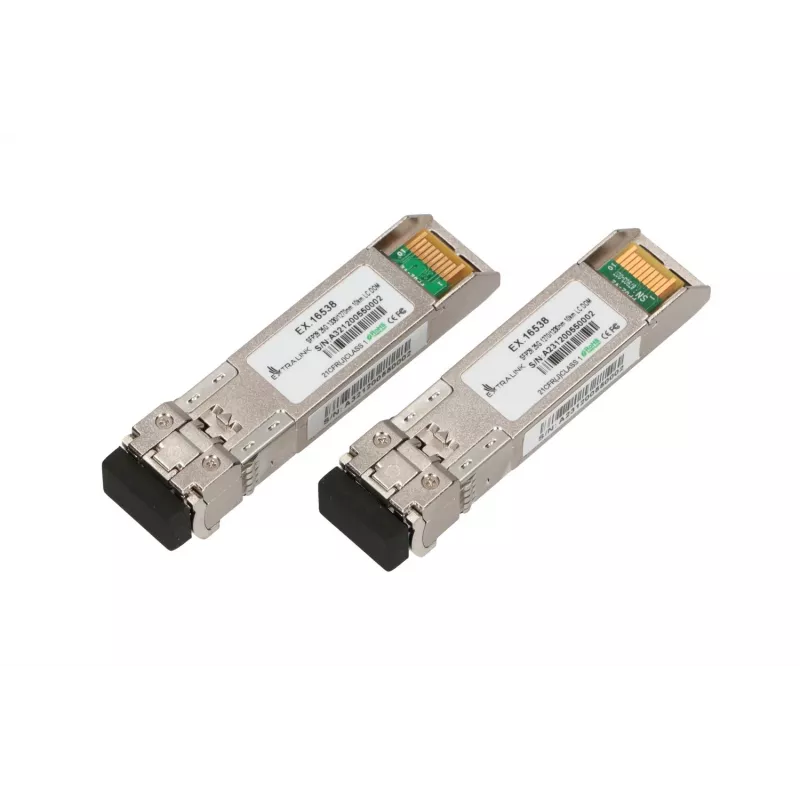

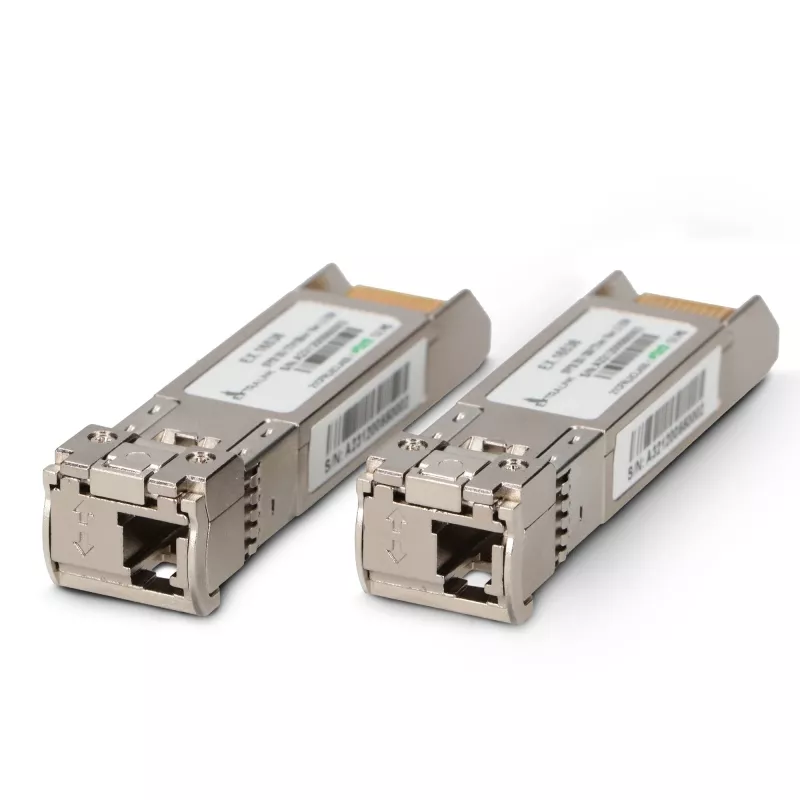

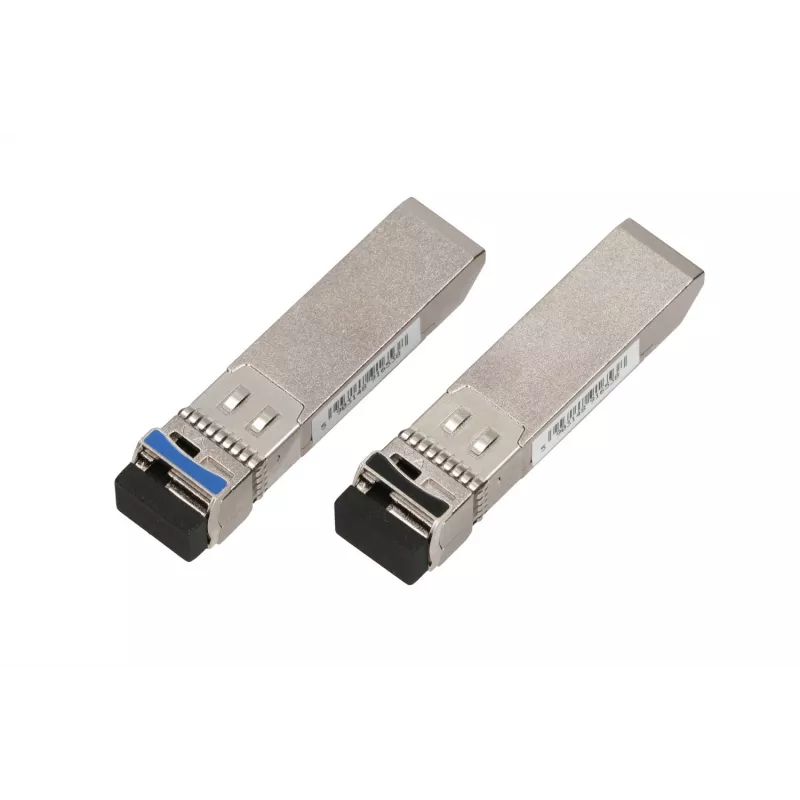

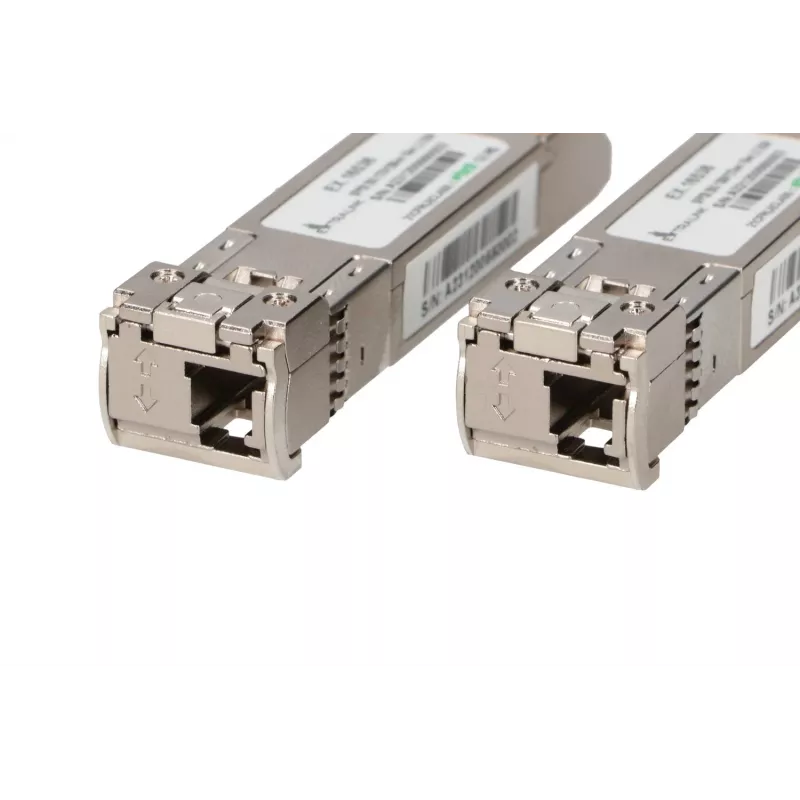

Transceptor SFP Extralink EX.16538 25780 Mbit/s 1310 nm

The Extralink EX.16538 SFP transceiver is an SFP28 fiber optic module engineered for high-speed 25G links. It supports a maximum data transfer rate of 25780 Mbit/s at a wavelength of 1310 nm, requiring a 3.3 V supply and consuming typically 1.5 W. Designed for single-mode optical links, the module offers a cost-effective option for network upgrades where compact hot-pluggable SFP28 form factor and low power consumption are required.

Advantages

This SFP28 transceiver delivers near-25G performance with a compact SFP form factor, allowing easy installation into compatible switches and routers. Low power usage (around 1.5 W) and an extended operating temperature range from 0°C to 70°C make it suitable for standard data-center and enterprise environments. The design targets economical 25 Gbps single-band optical connections while maintaining compliance with relevant IEEE gigabit Ethernet guidelines.

Suitable for

• 25G optical uplinks between switches and aggregation devices
• Data center server-to-switch connections requiring SFP28
• Enterprise and campus backbone links up to typical single-mode distances
• Network equipment upgrades where low power and compact modules are needed

Key specifications

• Interface type: SFP28
• Maximum data transfer rate: 25780 Mbit/s
• Optical wavelength: 1310 nm
• Typical power consumption: 1.5 W
• Supply voltage: 3.3 V
• Maximum reach: designed for up to 10 km on appropriate fiber
• Operating temperature range: 0°C to 70°C

How to use

Install the Extralink EX.16538 by inserting the SFP28 module into a compatible SFP/SFP28 slot on a switch, router or transceiver cage while the host device is powered according to the vendor’s hot-swap policy. Connect appropriate single-mode fiber cables terminated with matching connectors. Verify link status and speed in the host device management interface and ensure that both ends use compatible modules and matching transmission parameters (wavelength, data rate).

Recommendations

Use this module in equipment that supports SFP28 and 25G rates. For reliable performance, pair with single-mode fiber and maintain clean connector endfaces. Confirm firmware or driver compatibility on the host device and monitor module temperature and power within specified ranges.
