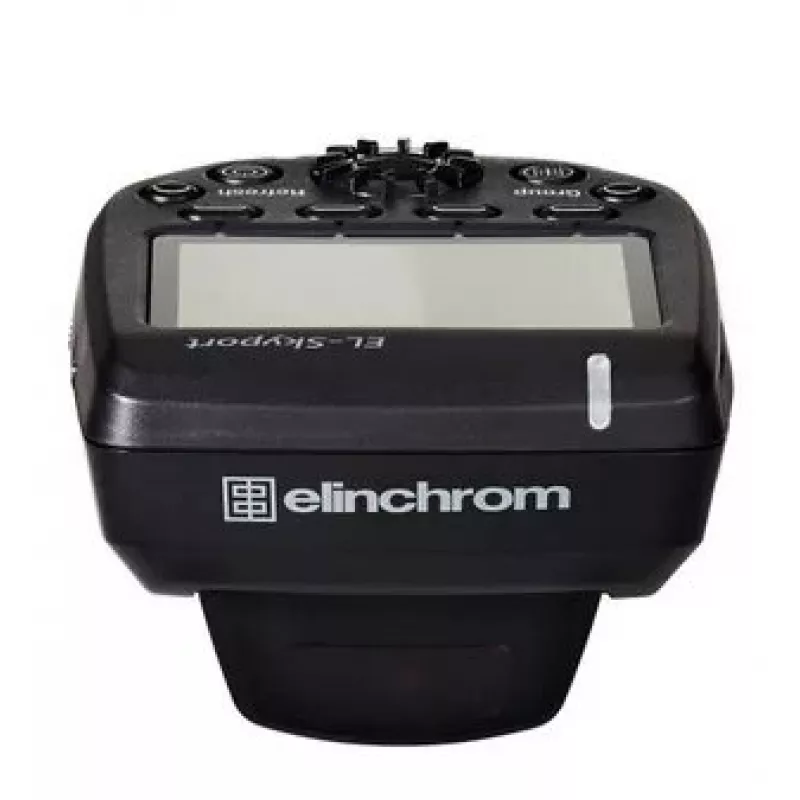

Transmisor de datos para cámara Elinchrom EL-Skyport Plus HS

The Elinchrom EL-Skyport Plus HS is an advanced camera data transmitter that provides two-way control and visual feedback for Elinchrom lighting systems. Featuring a large LCD, the transmitter displays real-time power settings for every connected light and supports Hi‑Sync operation to reach sync speeds up to 1/8000s. Compact and powered by 2x AA batteries, the unit offers extended wireless range and compatibility with previous EL‑Skyport generations.

Advantages

The Skyport Plus HS gives direct, two-way communication between camera and lights, showing exact remote flash power levels on its large backlit display. Hi‑Sync mode and ODS (Over Drive Sync) let you use shutter speeds up to 1/8000s and fine-tune the trigger signal to optimize exposure at high speeds. The transmitter features up to 20 frequency channels, 4 groups, an AF illuminator for faster focusing, a sure-lock hotshoe mount, and a mini‑USB port for firmware updates. It delivers an outdoor range up to 656 ft (200 m) and indoor range up to 196 ft (60 m).

Suitable for

• Studio and on-location photographers using Elinchrom lights
• High-speed flash photography and action freezing
• Outdoor shoots where extended wireless range is required
• Setups requiring real-time remote power adjustments

Key specifications

• Model: EL-Skyport Plus HS (E19367)
• Wireless range: up to 656 ft / 200 m outdoors, up to 196 ft / 60 m indoors
• Sync speed: Normal and Hi‑Sync (up to 1/8000s)
• Channels / Groups: 20 channels, 4 groups
• Power: 2x AA batteries
• Connections: sure-lock hotshoe mount, mini-USB for firmware updates
• Compatibility: compatible with previous EL‑Skyport generations and Elinchrom lights with EL‑Skyport modules

How to use

Attach the Skyport Plus HS securely to your camera hotshoe using the one‑touch quick‑lock mechanism and power it with two AA batteries. Turn on the transmitter, select the desired sync mode (Normal or Speed/Hi‑Sync) and the channel/group that matches your Elinchrom lights. Use the large LCD and controls to view and adjust each light’s power level and modeling lamp setting. For Hi‑Sync work, enable Hi‑Sync mode and use ODS if needed to fine‑tune exposure at high shutter speeds. Keep the transmitter and receivers within the specified range for reliable triggering.

Recommendations

Use fresh or fully charged AA batteries for consistent performance; update firmware via the mini‑USB port when updates are available; test Hi‑Sync and ODS settings before critical shoots to dial in exposure and ensure compatibility with your camera model.
