TRYTYT terminal de empalme 6 mm² DUI-6,0-12CZ negro (100 uds.)

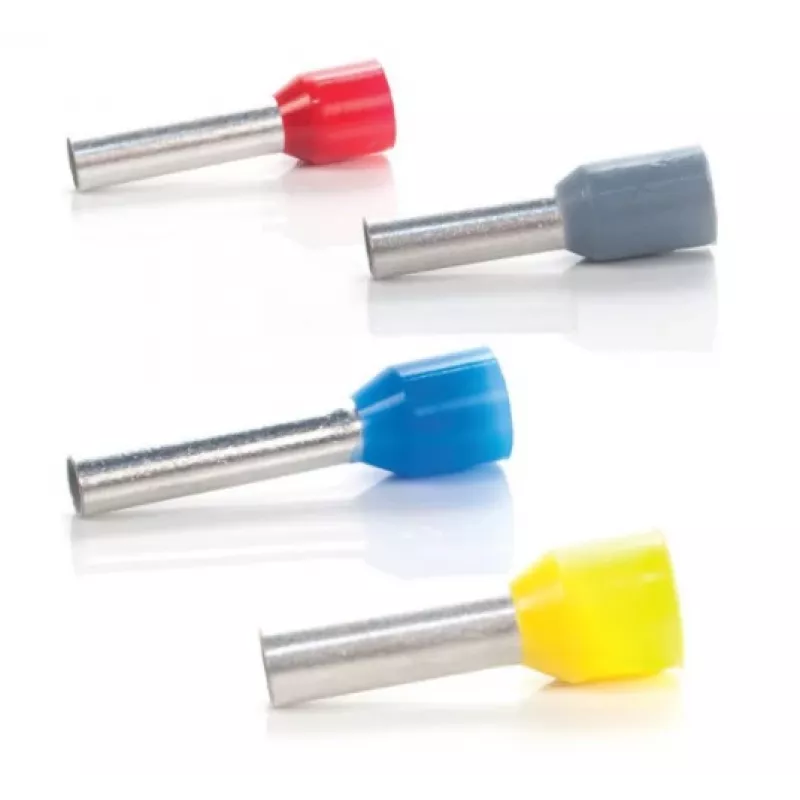

Insulated ferrule for 6 mm² stranded copper conductors, engineered for secure and reliable electrical connections in industrial and panel wiring. The funnel entry design allows fast and effortless wire insertion, while the tin-plated electrolytic copper tube ensures excellent conductivity and corrosion resistance. The polypropylene insulation sleeve provides durable protection and meets UL94 V-2 flammability standards, making it suitable for demanding environments.

Advantages

Prevents wire fraying and ensures a gas-tight connection when crimped. The funnel entry simplifies insertion of fine-stranded conductors, reducing installation time. Tin plating enhances solderability and protects against oxidation. The insulation sleeve is colour-coded black for easy identification of 6 mm² size. Pack of 100 pieces offers excellent value for high-volume applications.

Suitable for

• Electrical control panels and switchgear
• Industrial machinery and automation systems
• Terminal blocks and connection points
• Stranded copper conductors up to 6 mm²
• Applications requiring vibration-resistant connections

Key specifications

• Wire cross-section: 6 mm²
• Colour: Black
• Metal tube length: 12 mm
• Overall length: approximately 20 mm
• Insulation diameter: approximately 4.5 mm
• Conductor material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Operating temperature: -40°C to +105°C
• Voltage rating: 600V
• Flammability rating: UL94 V-2
• Standards: RoHS, CE
• Pack quantity: 100 pieces

Recommendations

For optimal performance, use a crimping tool with a hexagonal profile and ensure the ferrule is fully inserted before crimping. Store in a dry place away from direct sunlight.
