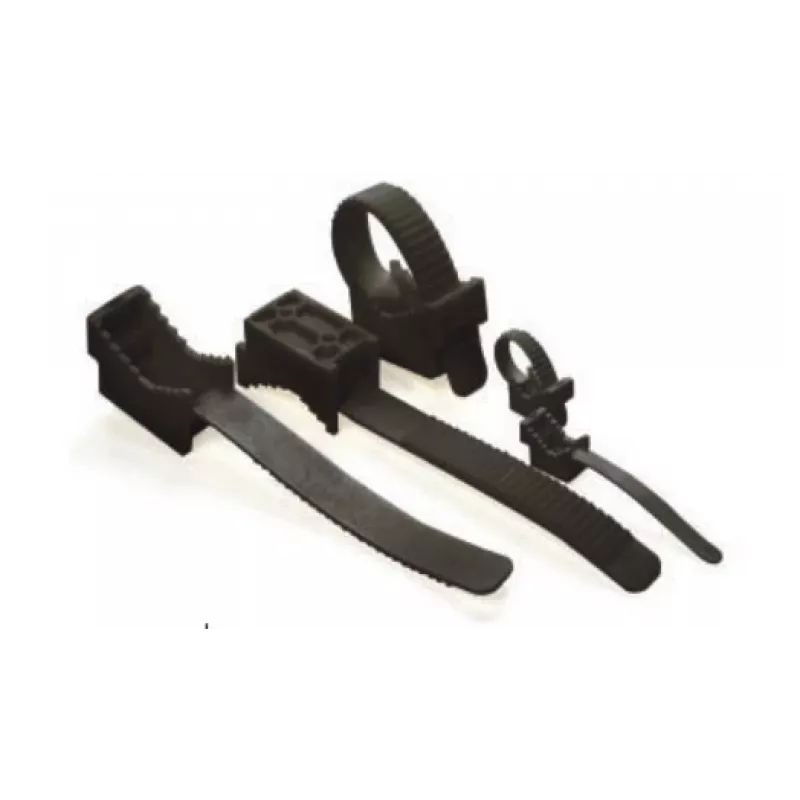

TRYTYT UP-22UV Fijación para bridas negro (100 uds.)

The TRYTYT UP-22UV Cable Tie Mount is a professional-grade screw mount designed for secure cable and wire management. Made from UV-stabilized polyamide 6.6, this mount is suitable for both indoor and outdoor applications, offering excellent durability and resistance to environmental factors. Each pack contains 100 pieces, making it ideal for large-scale installations.

Advantages

UV-stabilized for outdoor use; high-temperature resistance up to +105°C; easy screw mounting; UL94 V2 flammability rating for safety; compact design saves space.

Suitable for

• Cable and wire management in electrical panels
• Automotive wiring harnesses
• Telecommunications infrastructure
• Outdoor lighting and signage

Key specifications

• Product Type: Cable Tie Mount
• Mounting Type: Screw Mount
• Material: Polyamide 6.6 (PA6.6)
• Color: Black
• UV Resistance: Yes (UV Stabilized)
• Pack Quantity: 100 pieces
• Mount Length: 22 mm
• Mount Width: 15 mm
• Mount Height: 6.5 mm
• Max Cable Tie Width: 4.8 mm
• Mounting Hole Diameter: 4.5 mm
• Operating Temperature Range: -40°C to +85°C
• Short-Term Temperature: +105°C
• Flammability Rating: UL94 V2
• Application: Cable and Wire Management
• Environmental Use: Indoor/Outdoor

Recommendations

For best results, use with cable ties of width up to 4.8 mm. Ensure mounting surface is clean and drill appropriate hole for screw. Suitable for use with standard M4 screws.
