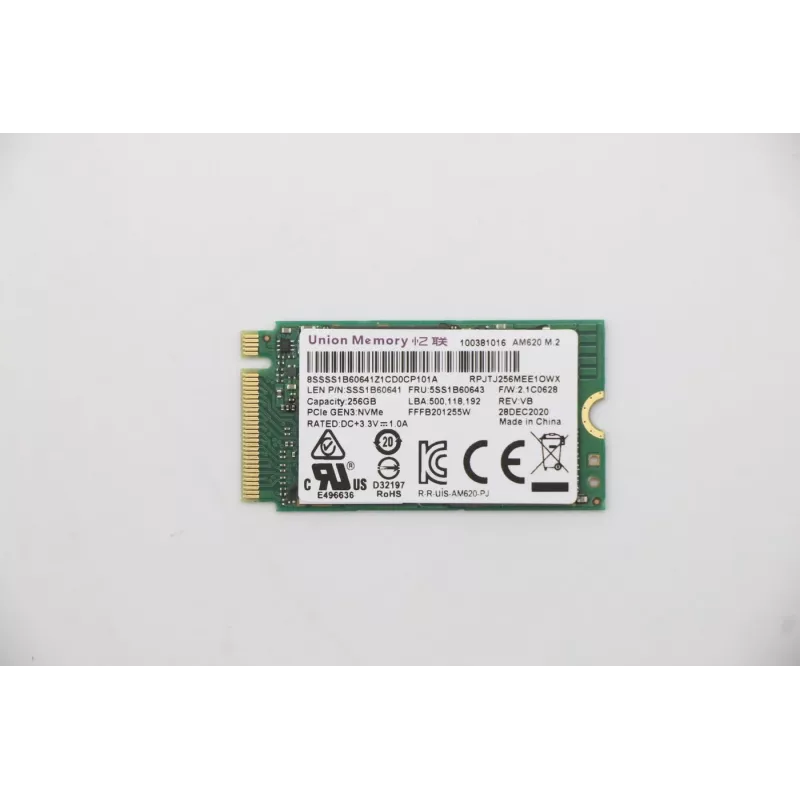

Unidad SSD Lenovo 256GB PCIe 2242 M.2 5SS1B60643

The Lenovo 256GB PCIe 2242 M.2 SSD is a compact solid-state drive designed to improve system responsiveness and reduce application and boot times. Built for systems that accept M.2 2242 modules, this PCIe-based drive offers a balance of storage capacity and performance suitable for everyday computing tasks, software loading and OS installation. Its 256GB capacity provides room for operating systems, productivity software and a selection of files while keeping a small physical footprint for thin laptops and compact desktops.

Advantages

This SSD delivers faster sequential and random access compared with traditional hard disk drives, lowering startup and load times. The PCIe interface enables higher transfer rates than older SATA M.2 drives, while the 2242 form factor allows installation in small systems where standard M.2 2280 modules do not fit. The drive’s solid-state design reduces mechanical failure risk and operates silently with lower power consumption, contributing to longer battery life in portable devices.

Suitable for

• Upgrading thin laptops and ultrabooks that support M.2 2242 modules
• Replacing slower HDDs in compact desktops and all-in-one PCs
• Installing a primary OS drive for faster boot and application load times
• Use in embedded systems or small form-factor machines requiring PCIe M.2 storage

Key specifications

• Form factor: M.2 2242
• Interface: PCIe (NVMe compatible)
• Storage capacity: 256 GB
• Drive type: Solid-state drive (SSD)
• Typical use: Client/consumer storage for OS and applications

How to use

Power down the computer and disconnect it from any power source before installing the M.2 2242 SSD. Locate the M.2 slot on the motherboard that supports the 2242 length and PCIe interface, remove the securing screw, insert the module at a slight angle into the slot and press it down gently until it aligns with the standoff, then secure it with the screw. After physical installation, power on the system, enter the BIOS/UEFI to confirm the drive is recognized, then use the operating system tools to initialize, partition and format the drive or install the operating system as needed.

Recommendations

For optimal performance, ensure your motherboard supports PCIe/NVMe M.2 2242 drives and that you have up-to-date firmware and drivers. Back up important data before replacing an existing drive. Use the SSD as a primary boot drive for faster system responsiveness and consider enabling TRIM in the operating system to maintain long-term performance.
