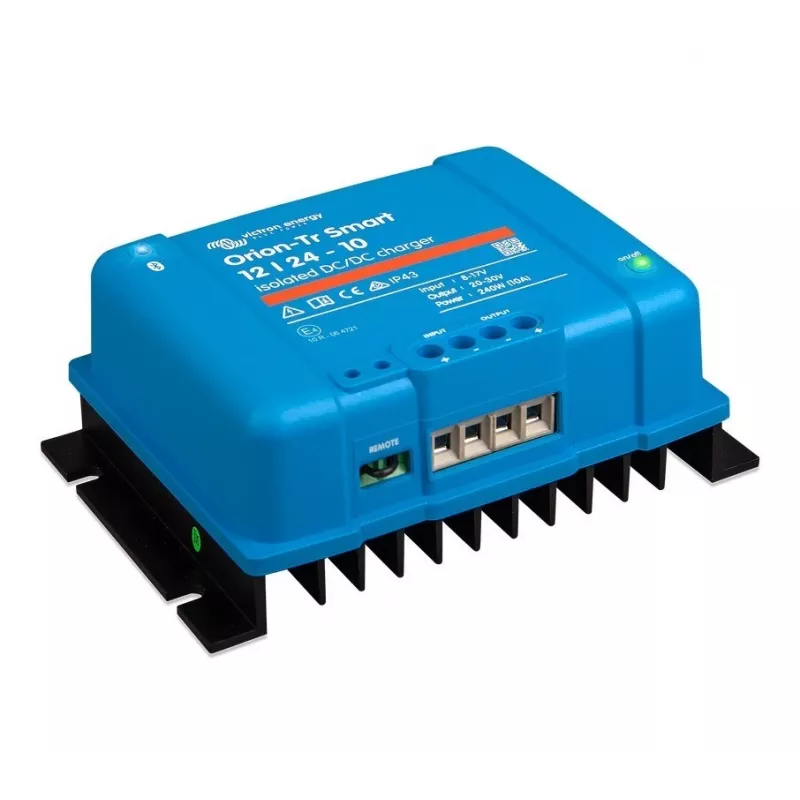

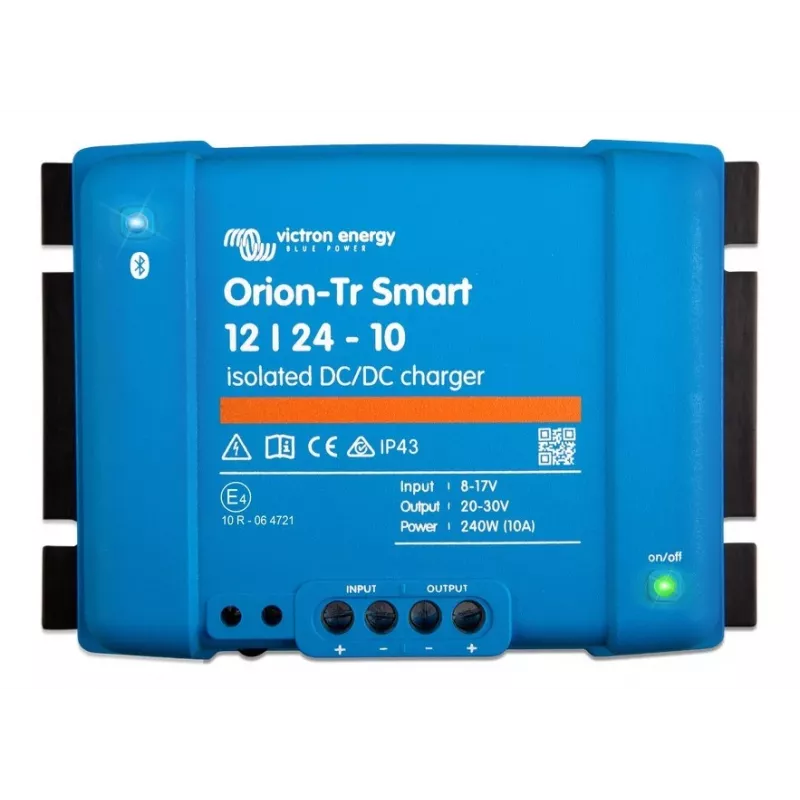

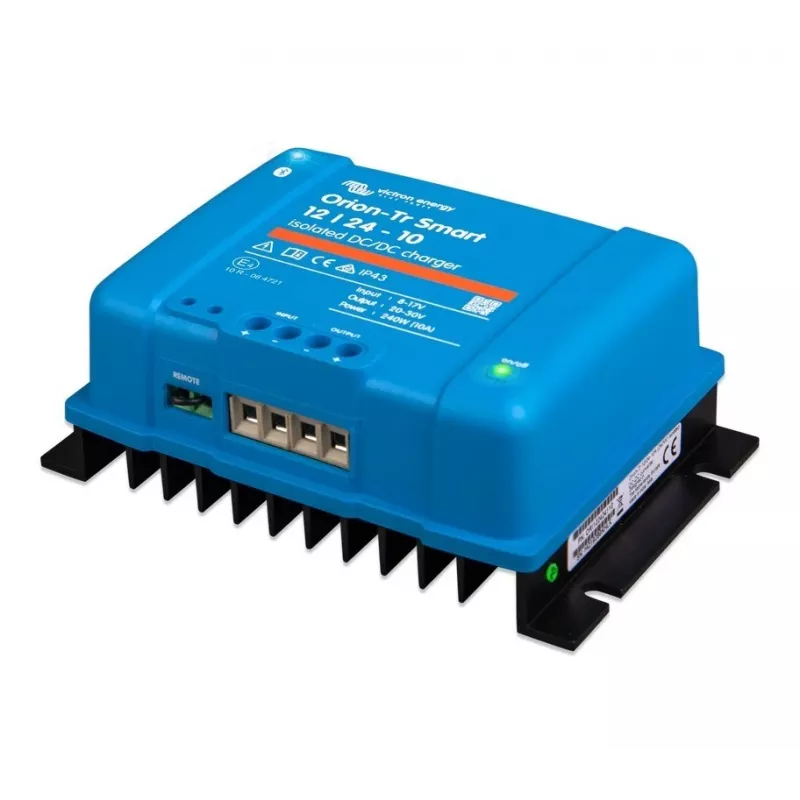

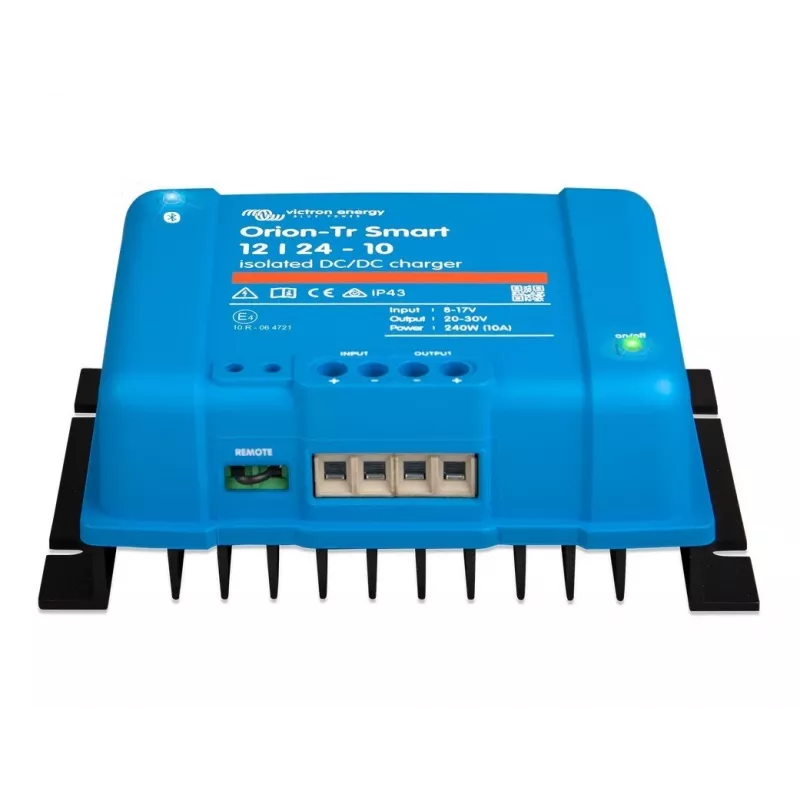

Victron Energy Orion-Tr Smart 12/24-10A Cargador DC-DC Aislado (240 W)

The Victron Energy Orion-Tr Smart 12/24-10A is a professional isolated DC-DC charger designed to convert 12V DC input to a regulated 24V DC output, delivering up to 10A continuous current (240W). Featuring Bluetooth Smart for real-time monitoring and configuration via the VictronConnect app, this charger is ideal for dual battery systems in vehicles, boats, and off-grid installations. Its adaptive 3-stage charging algorithm ensures optimal battery life, while galvanic isolation (200V DC) protects sensitive electronics.

Advantages

High efficiency (87%) minimizes power loss. Bluetooth connectivity allows easy setup and monitoring. Compact aluminum housing with IP43 protection. Remote on/off capability for flexible control. Parallel operation supports up to 5 units for higher power.

Suitable for

• Charging 24V auxiliary batteries from a 12V alternator in vehicles and boats
• Off-grid solar systems with 12V input and 24V battery banks
• Industrial and telecom applications requiring isolated DC-DC conversion

Key specifications

• Input voltage: 9-18V DC
• Output voltage: 20-30V DC (adjustable)
• Output current: 10A continuous
• Power: 240W
• Efficiency: 87%
• Galvanic isolation: 200V DC
• Bluetooth Smart: Yes
• Charger algorithm: Adaptive 3-stage (Bulk, Absorption, Float)
• Remote on/off: Yes
• No-load current: <80mA
• Operating temperature: -20 to +55°C
• DC connection: Screw terminals (max 16mm²)
• Enclosure: Aluminum, IP43
• Protection: Output short circuit, over temperature, input over/under voltage, output over voltage
• Parallel operation: Up to 5 units

Recommendations

For best performance, use appropriate cable sizes and ensure proper ventilation. The charger is compatible with lead-acid, AGM, gel, and lithium batteries. Always consult the manual for installation guidelines.
