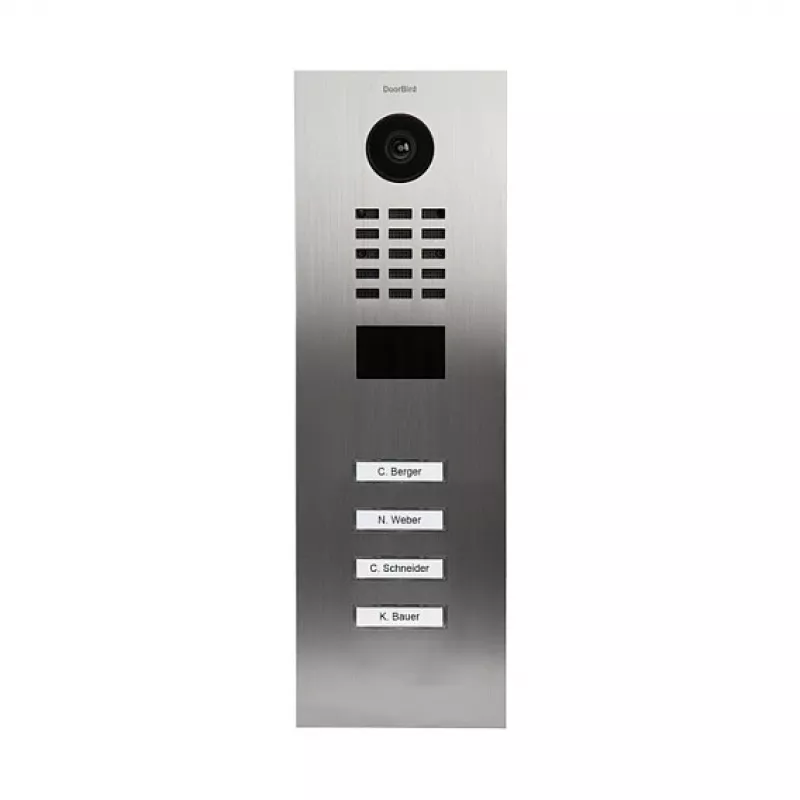

Videoportero DoorBird D2104V – Acero inoxidable, IP65, LED IR, sensor de movimiento de 10 m, PoE (IEEE 802.3af), 10/100 Mbit/s

DoorBird D2104V is an outdoor video intercom in stainless steel designed for access control and visitor communication at residential and commercial entrances. The unit offers night vision via an IR LED, a built-in speaker for two-way communication, IP65-rated weather protection and Power over Ethernet (PoE, IEEE 802.3af) on a 10/100 Mbps network interface. Its compact dimensions allow installation in constrained doorframe or wall locations.

Advantages

The stainless steel housing provides durable, corrosion-resistant protection suitable for outdoor use. Integrated night-vision with IR LED and a motion sensor with up to 10 m detection range improve identification and event triggering in low-light conditions. PoE support simplifies installation by combining power and network over a single cable, and the built-in speaker enables direct voice communication with visitors without additional equipment.

Suitable for

• Residential entrance doors and gates
• Small commercial entrances and offices
• Apartment building entry systems with a single external station

Key specifications

• Material: stainless steel housing
• Ingress protection: IP65 (weather-resistant)
• Night vision: IR LED for low-light imaging
• Motion detection range: up to 10 m
• Network: 10/100 Mbps Ethernet
• Power: Power over Ethernet (PoE), IEEE 802.3af
• Maximum external cameras supported: 1
• Dimensions: 131 × 45.8 × 403 mm

How to use

Mount the DoorBird D2104V on a suitable outdoor surface following local mounting and wiring regulations. Connect the device to the network using a 10/100 Mbps Ethernet cable and supply power via a PoE switch or injector compatible with IEEE 802.3af. Configure the unit through the DoorBird setup interface to enable audio, video, motion detection and network settings. Position the unit so the camera and motion sensor cover the desired approach path.

Recommendations

For optimal performance, install the intercom at a height and angle that provides clear visibility of visitors and avoids direct glare into the camera. Use a PoE switch rated for outdoor or sheltered installations when the switch location is exposed to dust or moisture, and test motion-sensor range after installation to adjust placement and sensitivity as needed.
