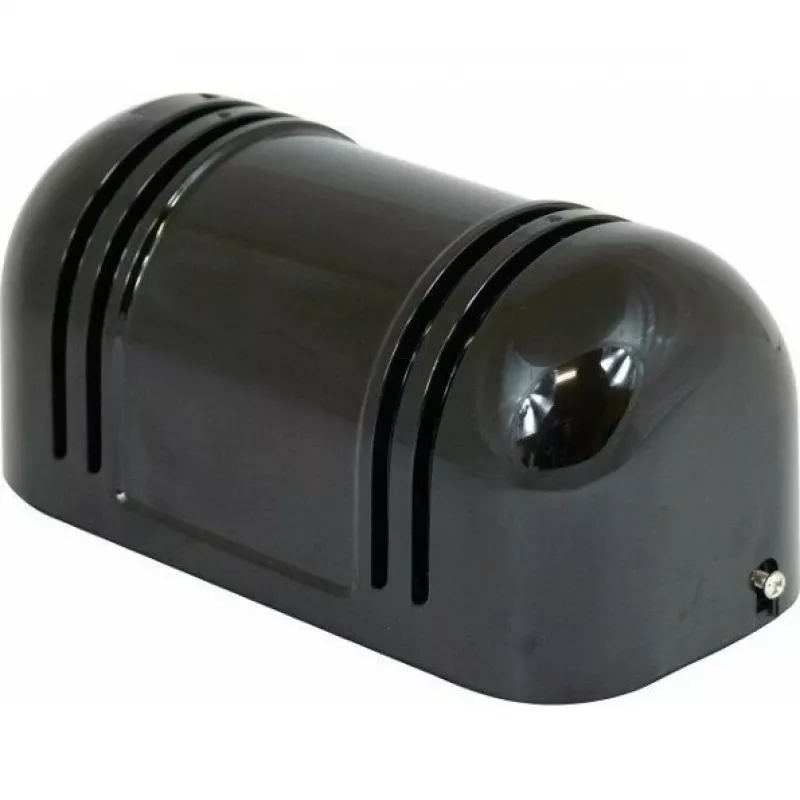

VIDICON Barrera infrarroja VIDD-60 de 2 haces, alcance de 60 m

The VIDICON VIDD-60 is a professional-grade active infrared barrier designed for outdoor perimeter security. With 2 synchronized pulsed beams and a maximum range of 60 meters, it provides reliable intrusion detection for residential, commercial, and industrial applications. The barrier features a relay output (NC/NO), adjustable response time, and tamper protection, ensuring robust security in various environments.

Advantages

High immunity to false alarms due to dual beam detection and sunlight immunity. Easy alignment with visual LED indicator and wide horizontal (±90°) and vertical (±10°) adjustment. IP65 weatherproof rating ensures durability in harsh conditions. Low power consumption (<60mA) and wide voltage range (DC 12-24V) simplify installation.

Suitable for

• Outdoor perimeter security for homes, offices, and warehouses
• Integration with alarm systems and access control
• Long-range detection up to 60 meters

Key specifications

• Sensor Type: Active Infrared Barrier
• Number of Beams: 2 Beams
• Maximum Outdoor Range: 60 meters
• Detection Principle: Synchronized Pulsed Infrared
• Output Type: Relay Output (NC/NO)
• Power Supply: DC 12V - 24V
• Current Consumption (Tx+Rx): < 60mA
• Response Time: 50ms - 700ms (Adjustable)
• Tamper Protection: Yes (Cover Tamper Switch)
• Environmental Rating: IP65
• Operating Temperature: -25°C to +55°C
• Beam Alignment Indicator: Visual (LED)
• Horizontal Adjustment: ±90°
• Vertical Adjustment: ±10°
• Mounting Type: Wall/Pole Mount
• Housing Material: UV-resistant Polycarbonate
• Anti-False Alarm Features: Dual beam detection, Sunlight immunity
• Alarm Output Contact Rating: 1A @ 30VDC

Recommendations

For optimal performance, ensure proper alignment during installation and test the system regularly. Suitable for use with compatible alarm panels and power supplies.
