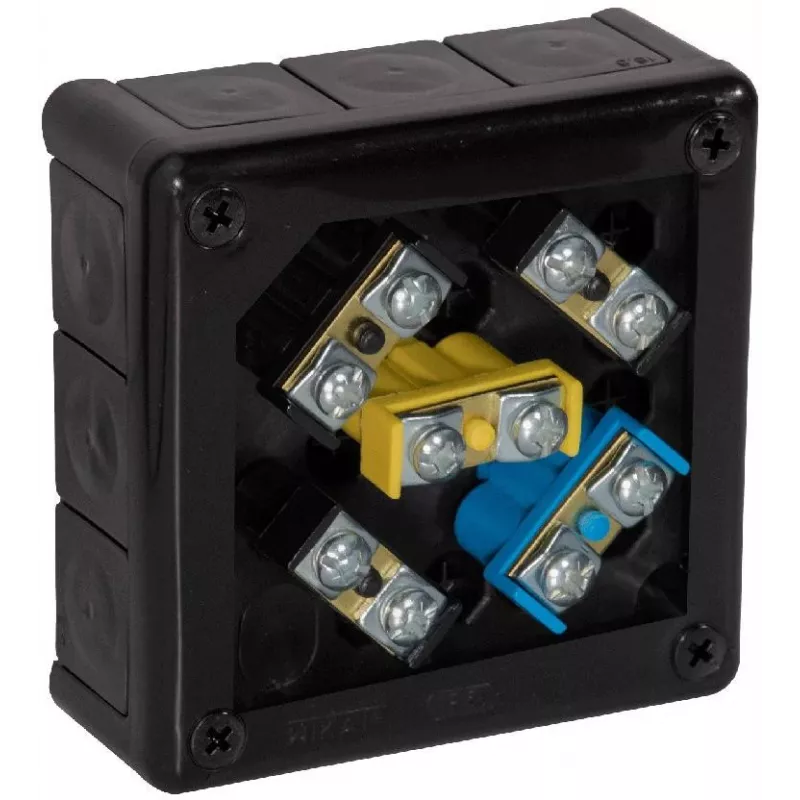

VIPLAST VP-51 Caja de derivación de superficie 12 entradas negra IP55 118x118x46 mm 051-55

The VIPLAST VP-51 surface-mounted junction box is a robust and reliable solution for electrical installations requiring secure cable connections. Designed for indoor and outdoor use, this black junction box features 12 cable entries and integrated terminals, ensuring efficient and organized wiring. With an IP55 rating, it offers protection against dust and water jets, making it suitable for demanding environments.

Advantages

High-quality thermoplastic construction provides durability and impact resistance (IK07). The screw-on lid with a gasket seal ensures a tight closure, while the halogen-free and UV-resistant materials guarantee long-lasting performance. The box complies with EN 60670-1 and EN 60529 standards, ensuring safety and reliability.

Suitable for

• Electrical junction and connection points in residential, commercial, and industrial settings
• Surface-mounted installations where cable management and protection are required
• Outdoor applications requiring weatherproof protection

Key specifications

• Product Type: Junction Box
• Mounting Type: Surface-mounted
• Ingress Protection: IP55
• Number of Cable Entries: 12
• Terminals Included: Yes
• Colour: Black
• Material: High-quality Thermoplastic
• External Dimensions (L x W x H): 118 x 118 x 46 mm
• Lid Fastening: Screw-on
• Seal Material: Gasket (TPE/EPDM)
• Impact Resistance: IK07
• Glow Wire Test: 650°C
• Operating Temperature Range: -25°C to +60°C
• UV Resistance: Yes
• Halogen-Free: Yes
• Rated Insulation Voltage: 400V
• Standards Compliance: EN 60670-1, EN 60529

Recommendations

For optimal performance, ensure proper cable entry sealing and use appropriate cable glands. This junction box is ideal for new installations or upgrades where reliability and protection are paramount.
