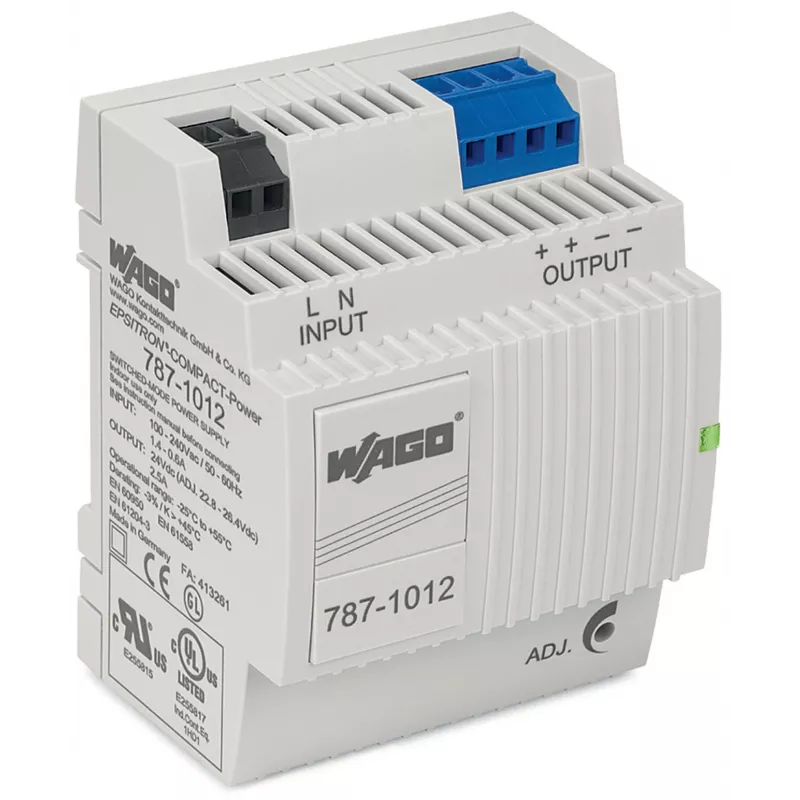

WAGO 787-1012 fuente de alimentación, 24 V DC, 2,5 A, 60 W, entrada 85-264 V AC

The WAGO 787-1012 is a power supply unit delivering 24 V DC output with a power rating of 60 W. It accepts an input voltage range of 85–264 V AC and an input frequency of 44–66 Hz.

Key features

• Output voltage: 24 V DC
• Power: 60 W
• Input voltage: 85–264 V AC
• Input frequency: 44–66 Hz
• Input current: 1.4 A
• Passive
• Hold-up time: 10 ms

Specifications

• Brand: WAGO
• MPN: 787-1012
• Power: 60 W
• Output voltage: 24 V
• Input voltage: 85–264 V AC
• Input frequency: 44–66 Hz
• Input current: 1.4 A
• Passive
• Hold-up time: 10 ms
