WAGO Borne multipiso de instalación 2205-7646 con pulsador, 4 mm², gris

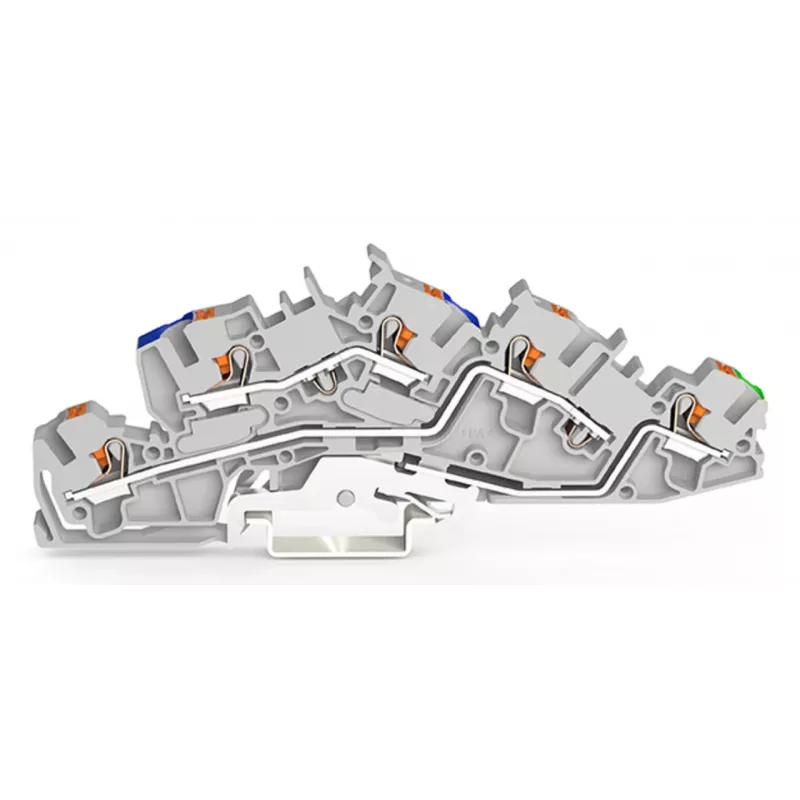

The WAGO 2205-7646 is a high-quality installation multi-level terminal block designed for reliable and efficient electrical connections. With a nominal cross-section of 4 mm² and push-in CAGE CLAMP® / PUSH WIRE® connection technology, it ensures fast, tool-free wiring. This grey terminal block features two potentials and two levels, making it ideal for space-saving installations on DIN-rail 35.

Advantages

Push-in connection technology reduces installation time by up to 50% compared to traditional screw terminals. The integrated push-button allows easy actuation and testing. The compact two-level design maximizes wiring density while maintaining clear potential separation. Rated for 400 V and 32 A, it meets demanding industrial and commercial requirements.

Suitable for

• Building installation wiring
• Control cabinet assembly
• Lighting and power distribution
• Industrial automation systems

Key specifications

• Terminal Type: Installation Multi-level Terminal Block
• Number of Potentials: 2
• Number of Levels: 2
• Connection Technology: Push-in CAGE CLAMP® / PUSH WIRE®
• Actuation Type: Push-button
• Nominal Cross-section: 4 mm²
• Connectable Conductor (Solid): 0.5 - 4 mm² (20 - 12 AWG)
• Connectable Conductor (Fine-stranded w/ ferrule): 0.5 - 4 mm² (20 - 12 AWG)
• Nominal Voltage (EN): 400 V
• Nominal Current (EN): 32 A
• Rated Surge Voltage: 4 kV
• Insulation Material: Polyamide (PA 66)
• Colour: Grey
• Mounting Type: DIN-rail 35
• Stripping Length: 11 mm (0.43 inch)
• Pollution Degree: 2
• Operating Temperature: -35 to +85 °C
• Flammability Class: UL94 V0
• Approvals: ENEC, UL, CSA
• Number of Clamping Points per Potential: 2

Recommendations

For optimal performance, use with WAGO pre-stripped conductors or appropriate ferrules. Ensure DIN-rail is properly grounded. Suitable for use in environments with pollution degree 2.
