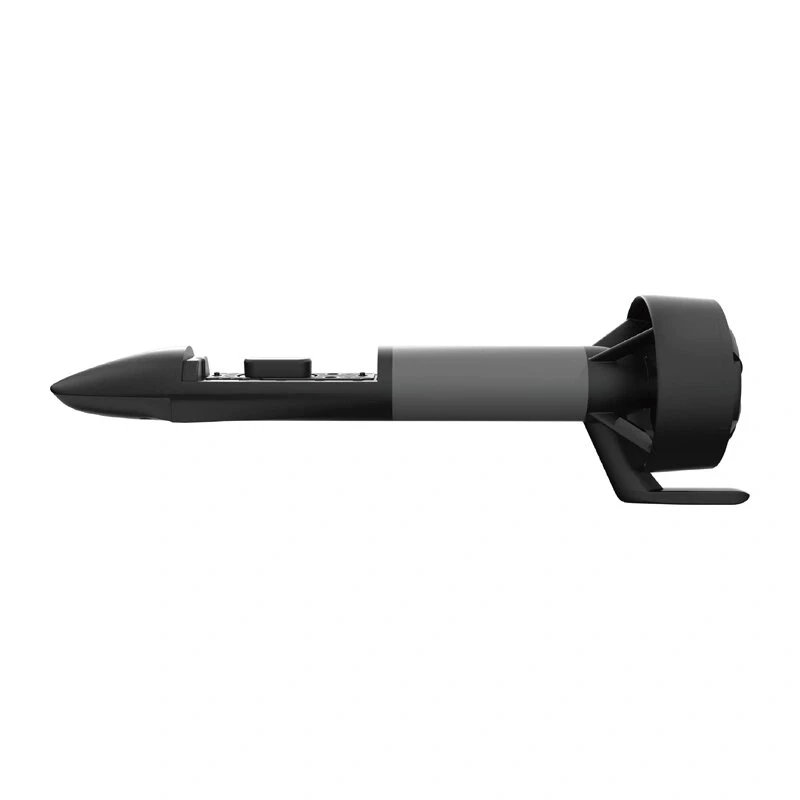

WAYDOO EVO Performance Drive Unit – motor brushless de 6 kW, hélice de tobera, IP68

Unleash the full potential of your Waydoo EVO eFoil with the Performance Drive Unit, delivering a staggering 6 kW of peak power and approximately 50 kgf of thrust. Engineered for advanced riders, this complete drive system transforms your board into a high-speed water rocket, capable of reaching up to 45 km/h (28 mph) when paired with the right battery and rider skill.

Overview

The Waydoo EVO Performance Drive Unit is a fully integrated propulsion system, combining a high-performance brushless DC motor, a ducted three-blade propeller, a 750 mm mast, and an electronic speed controller (ESC) into a single, streamlined unit. Built with marine-grade aluminum alloy and stainless steel, it is designed to withstand the harshest saltwater environments while delivering relentless performance. The motor is rated IP68 waterproof, ensuring complete protection against water ingress, and features passive water cooling for sustained high-output operation.

What stands out

• Massive 6 kW rated power for explosive acceleration and high-speed carving.
• Approximately 50 kgf of thrust, providing lift and speed for riders up to 120 kg.
• Ducted 3-blade aluminum alloy propeller for efficient, safe, and quiet operation.
• IP68 waterproof motor and integrated ESC, fully sealed against water and debris.
• Passive water cooling system maintains optimal motor temperature during extended rides.
• Quick-release mounting system allows for fast installation and removal without tools.
• Compatible with Waydoo EVO and EVO Pro board

Technical details

• Motor Type: High-performance Brushless DC (BLDC)
• Rated Power: 6 kW (6000W)
• Max Thrust: Approximately 50 kgf
• Operating Voltage: 52V DC (Nominal)
• Mast Length: 750 mm
• Propeller Type: Ducted, 3-blade
• Propeller Material: Aluminum Alloy
• Waterproofing Rating: IP68 (Motor)
• Cooling System: Passive Water Cooling
• Construction Material: Marine-grade Aluminum Alloy, Stainless Steel
• Compatibility: Waydoo EVO Series eFoils (EVO, EVO Pro)
• Mounting System: Quick-release, integrated mast connection
• Integrated Components: Motor, Propeller, Mast, Electronic Speed Controller (ESC)
• Max Speed Capability: Up to 45 km/h (28 mph) (dependent on board, battery, rider)
• Safety Features: Overheat protection, Overcurrent protection
• Recommended Usage: Performance riding, advanced users

Our verdict

The Waydoo EVO Performance Drive Unit is the ultimate upgrade for thrill-seekers. Its raw power, rugged construction, and smart engineering make it a top choice for advanced eFoil enthusiasts who demand maximum performance on the water.
