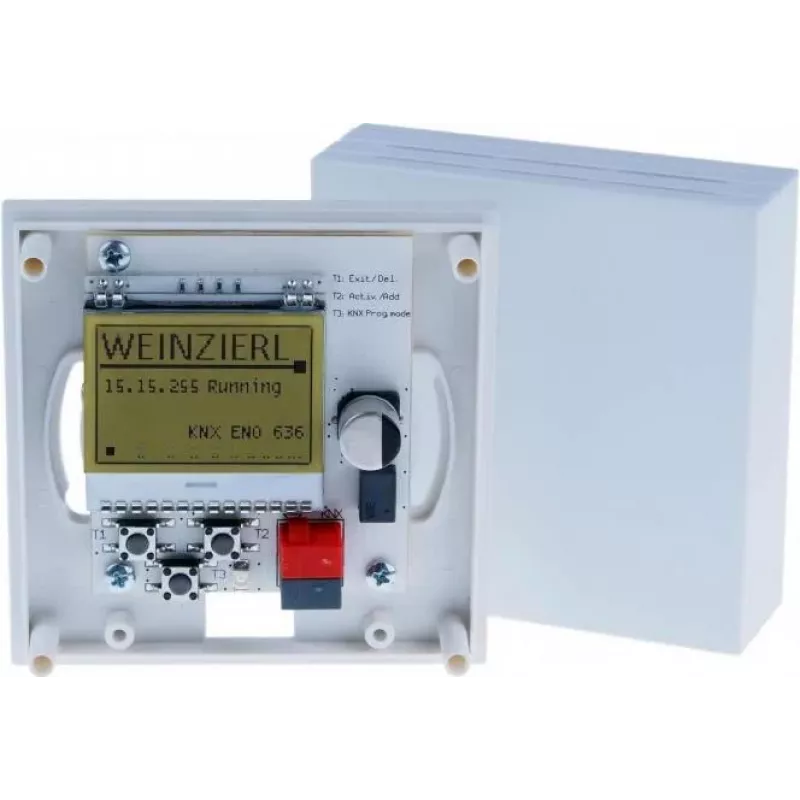

Weinzierl 5268 KNX ENO 636 gateway seguro EnOcean 32 canales bidireccional

The Weinzierl 5268 KNX ENO 636 secure Gateway bridges KNX TP and EnOcean wireless networks with 32 bidirectional channels, supporting both KNX Data Secure and EnOcean AES 128 encryption. Unlike basic gateways, it includes learn-in and repeater functions, filtering, and mapping for flexible integration.

Highlights

• 32 bidirectional EnOcean channels
• KNX Data Secure and EnOcean AES 128 security
• DIN rail mounting (2 TE)
• Learn-in and repeater functions
• Configuration via ETS 5.7 or higher

In daily use

Installed on a DIN rail, the gateway connects to the KNX bus for power and communication. It receives EnOcean telegrams at 868.3 MHz and maps them to KNX group objects, with filtering to reduce bus load. The three LEDs indicate KNX, EnOcean, and status. Firmware updates are possible via ETS.

Full specifications

• Product type: KNX / EnOcean Gateway
• Communication protocols: KNX TP, EnOcean Wireless
• EnOcean frequency: 868.3 MHz
• Number of EnOcean channels: 32 (bidirectional)
• KNX security: Yes (KNX Data Secure)
• EnOcean security: Yes (AES 128)
• Power supply: KNX Bus (21-30V DC)
• KNX current consumption: Max. 10 mA
• Mounting: DIN rail (2 TE)
• Configuration software: ETS 5.7 or higher
• Firmware update: Yes, via ETS
• Operating temperature: 0°C to +45°C
• Protection class: IP20
• LED indicators: 3 (KNX, EnOcean, Status)
• Key functions: Learn-in, Repeater, Filtering, Mapping
• EnOcean Equipment Profiles (EEP): Supports various EEPs

Final note

This gateway is ideal for integrating EnOcean sensors and actuators into a secure KNX installation, with advanced mapping and filtering capabilities.
