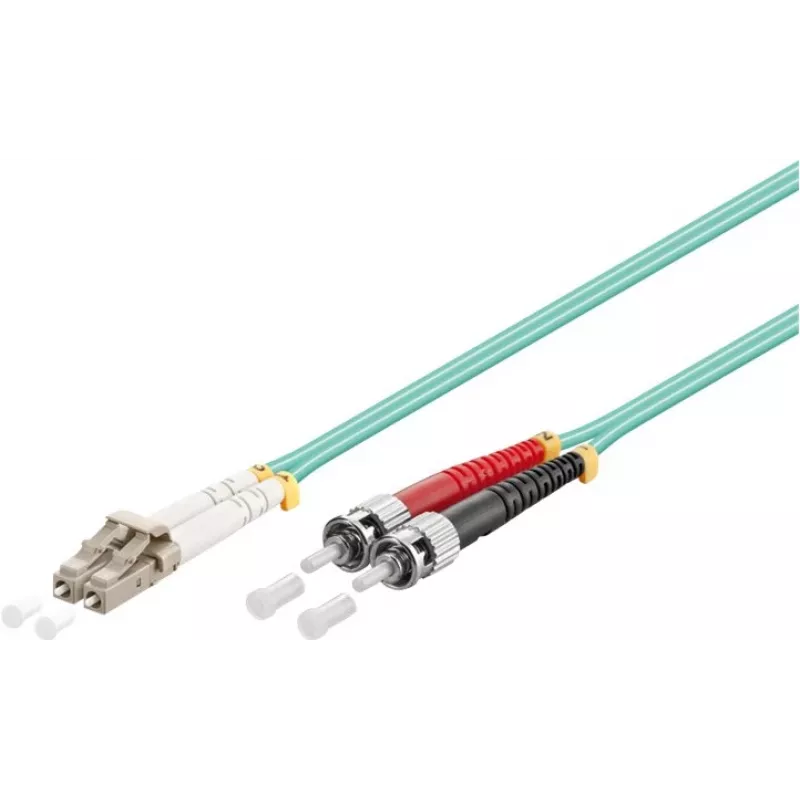

Cable de fibra óptica Goobay 50/125 (OM3) LC-ST 1 m

The Goobay 50/125 (OM3) LC–ST 1m fibre optic cable is a multimode duplex cable with a 50 µm core diameter and a 1 meter length. Designed for office, industrial and data centre environments, it provides reliable high-speed data transmission with LC and ST duplex connectors and protective dust covers. The cable jacket is halogen-free and flame-retardant, and each cable is supplied with a test protocol.

Advantages

This OM3 multimode fibre cable supports full duplex communication and is compatible with LC and ST connector types, offering secure connections in a compact 1 m form factor. The halogen-free, flame-retardant sheath improves safety in enclosed spaces, while the included test protocol documents the cable’s performance. The product is suitable for standard networking equipment in offices, server rooms and industrial installations.

Suitable for

• Office network links and patch panels
• Server rooms and data centre interconnects
• Industrial communication and control systems
• High-speed connections requiring OM3 multimode fibre

Key specifications

• Type: Multimode fibre optic cable (50/125 µm, OM3)
• Length: 1 m
• Connector set: LC duplex to ST duplex (includes protective dust cover)
• Cable jacket: Halogen-free, flame-retardant
• Performance (maximum transmission range): 100 Mbit/s — OM2/3/4: 500 m; 1 Gbit/s — OM2: 500 m, OM3/OM4: 1100 m; 10 Gbit/s — OM2: 82 m, OM3: 300 m, OM4: 550 m
• Documentation: Supplied with individual test protocol
• Brand / MPN / EAN: WENTRONIC / 95792 / 4040849957925

How to use

Inspect the protective dust covers before installation and remove them immediately prior to connecting. Route the fibre gently to avoid sharp bends and secure the cable using appropriate cable management to prevent strain. Plug the LC duplex connector into the corresponding LC port and the ST duplex connector into the ST port, ensuring correct alignment and firm seating. After installation, verify link status and performance using appropriate network test equipment and refer to the supplied test protocol for baseline measurements.

Recommendations

For best results, maintain a minimum bend radius as specified by the equipment manufacturer, avoid excessive pulling force, and preserve connector end-face cleanliness by using dust caps until final connection. Choose OM3-rated transceivers and active equipment to achieve the stated 10 Gbit/s transmission distances.
