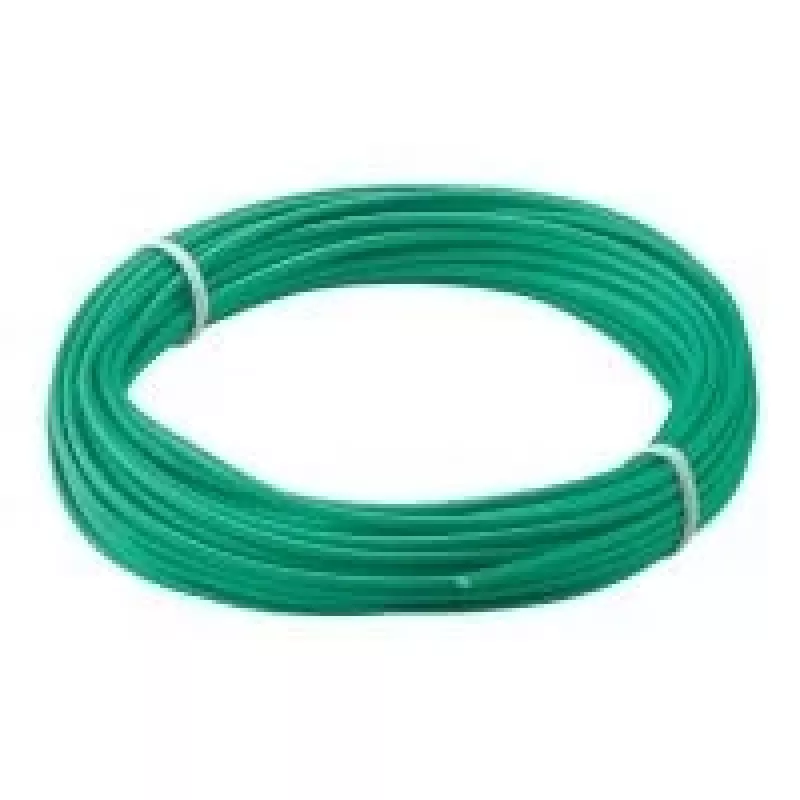

Wentronic Goobay hilo trenzado aislado, verde, 10 m, 1 conductor, 18 x 0,1 mm (55042)

For electronics projects, internal wiring, and model building, a reliable single-core stranded wire is essential. The Wentronic Goobay insulated stranded wire offers a 10-meter length of green PVC-insulated copper conductor, ready for your next connection.

Who is it for

This wire suits hobbyists, technicians, and engineers who need a flexible, easy-to-route conductor for low-voltage applications. Its fine-stranded construction makes it ideal for tight spaces and frequent bending.

Main features

• Stranded copper conductor, 18 x 0.1 mm, for flexibility
• PVC insulation in green for easy identification
• 10 m length on a spool for convenient storage
• Rated for up to 300 V and 70 °C operating temperature

Specifications

• Wire type: Stranded
• Number of cores: 1
• Conductor material: Copper
• Conductor construction: 18 x 0.1 mm
• Nominal cross-section: 0.14 mm²
• Approximate wire gauge: 26 AWG
• Insulation material: PVC
• Colour: Green
• Length: 10 m
• Rated voltage: 300 V
• Max. operating temperature: 70 °C

Tips

Strip the insulation carefully to avoid nicking the fine strands. For permanent installations, consider using ferrules or tinning the ends.
