Zócalo para armarios de red Digitus DN-19 PLINTH-6/8-1

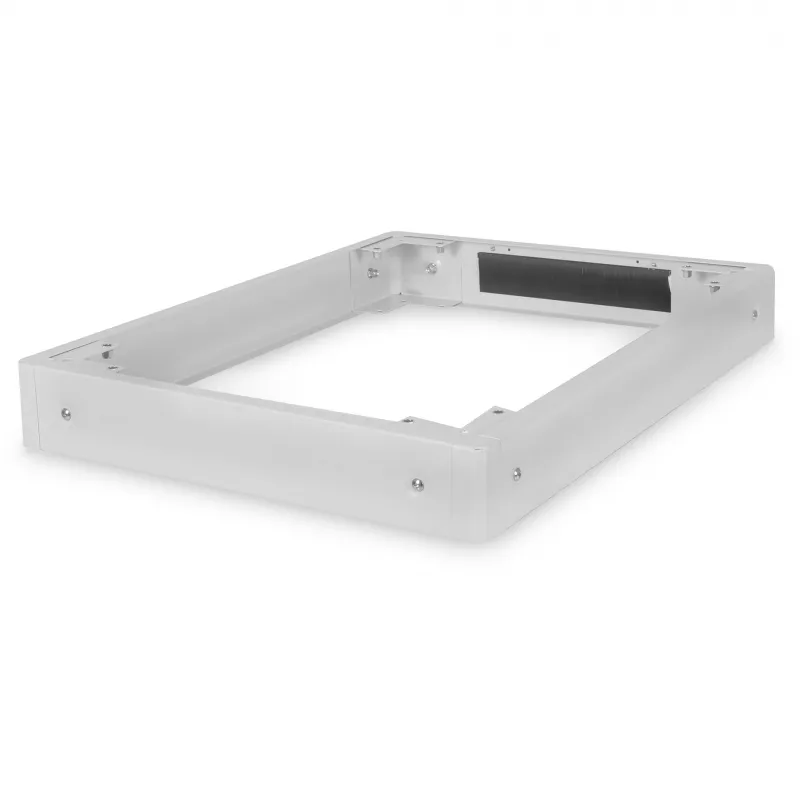

The DIGITUS® base for 483 mm (19") network cabinets from the Unique and Dynamic Basic series increases cabinet height and provides additional internal space for routing and storing excess cable length. Manufactured to German quality standards and supplied unassembled, the plinth raises the ground clearance by 100 mm; two units can be stacked to reach 200 mm. Compatible with DN-19 PLINTH-6/8-1 dimensions (600 × 800 mm), it has a grey finish and is intended to simplify cable management in professional IT installations.

Advantages

The plinth extends cabinet height to create space for excess cables and improves airflow under the cabinet by increasing ground clearance. A brush-strip cable feed-through enables simple and tidy cable routing. Delivery in unassembled form reduces shipping volume and simplifies logistics.

Suitable for

• Unique series 483 mm (19") network cabinets
• Dynamic Basic series 483 mm (19") network cabinets
• Installations requiring additional space for cable management
• Environments where raised ground clearance is needed

Key specifications

• Model: DN-19 PLINTH-6/8-1
• Compatible width: 483 mm (19")
• Base footprint: 600 × 800 mm
• Ground clearance increase: 100 mm (per plinth); up to 200 mm when stacked
• Finish: grey
• Supply condition: delivered unassembled
• Brand: DIGITUS
• EAN: 4016032333050

How to use

Mount the plinth under a compatible 483 mm (19") cabinet according to the cabinet manufacturer’s assembly instructions. Use the internal space to route excess cable length and pass cables through the brush-strip feed-through to maintain an organised installation. If additional height is required, place a second plinth on top of the first and secure both units as instructed.

Recommendations

Install and fasten the plinth on a stable, level surface and follow the cabinet manufacturer’s guidelines for grounding and seismic anchoring where applicable. Ensure the brush strip is used to protect cable jackets from abrasion and to keep the installation tidy.
