2-power 11.6 1366x768 LED OnCell T/P mate (2P-0GPX0)

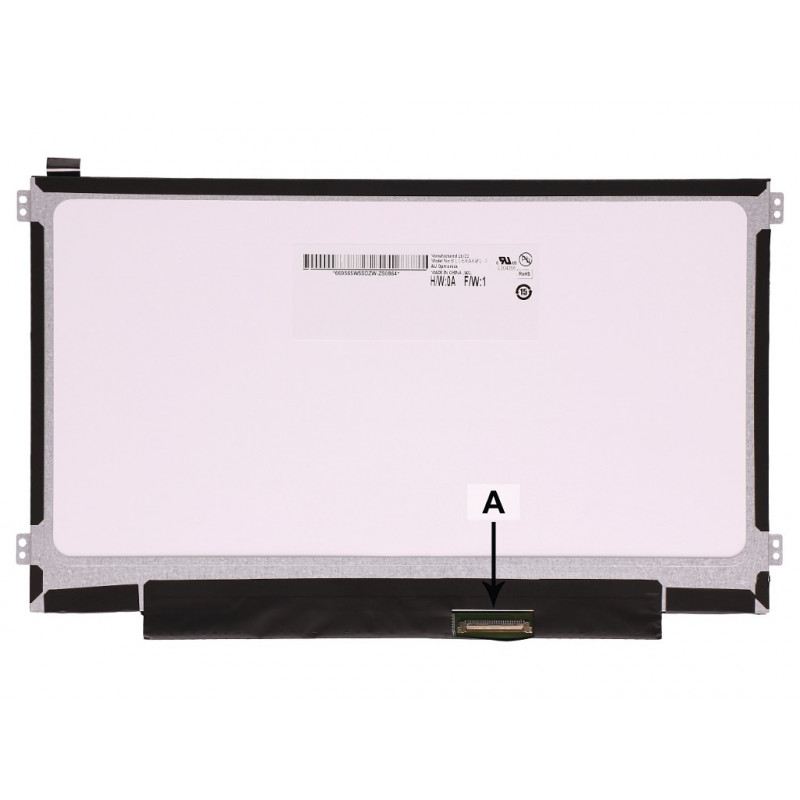

Replace a damaged or faulty laptop screen with this 11.6-inch WXGA LED touchscreen display panel, engineered for crisp visuals and responsive touch input. Its on-cell capacitive touch technology integrates the sensor directly into the LCD, reducing thickness and improving optical clarity. The matte anti-glare finish diffuses reflections, making it easier to work in bright environments. With a 1366x768 resolution and 16:9 aspect ratio, it delivers sharp text and vibrant colors for everyday computing. The 30-pin eDP connector ensures compatibility with a wide range of laptops that use this standard interface.

Advantages

On-cell touch integration offers a slimmer profile and better display quality compared to traditional add-on digitizers. The matte surface minimizes fingerprints and glare, while the LED backlight provides consistent brightness and energy efficiency. A 60 Hz refresh rate and 25 ms response time keep motion smooth for video playback and general use. The panel's 45% NTSC color gamut and 220 cd/m² brightness deliver adequate color reproduction for office tasks and media consumption.

Suitable for

• Technicians and IT professionals repairing 11.6-inch touchscreen laptops
• Users upgrading from a non-touch or damaged display
• Educational or business environments requiring durable, anti-glare screens
• DIY enthusiasts comfortable with laptop disassembly

Key specifications

• Screen size: 11.6 inches
• Resolution: 1366 x 768 (WXGA)
• Panel type: TFT Active Matrix LCD with LED backlight
• Touchscreen: On-cell capacitive
• Surface finish: Matte (anti-glare)
• Connector: 30-pin eDP
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Color gamut: 45% NTSC
• Response time: 25 ms
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)

Recommendations

Before ordering, verify that your laptop model uses a 30-pin eDP connector and supports on-cell touch technology. Check the mounting brackets and cable position to ensure a proper fit. Handle the panel by its edges and use an anti-static wrist strap during installation to prevent damage.
