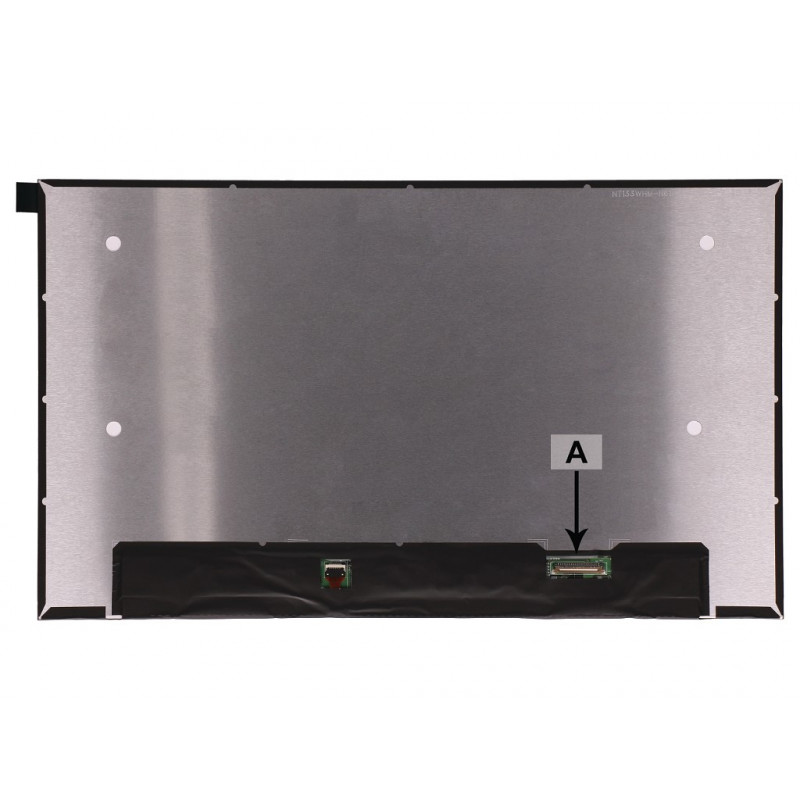

2-power 13,3" WXGA HD eDP AG TN (2P-B133XTN03.1 HW0A)

The 2-POWER 2P-B133XTN03.1 HW0A is a 13.3-inch WXGA HD laptop display panel that delivers crisp, clear visuals for everyday computing. Its anti-glare TN surface reduces reflections, making it ideal for use in bright environments, while the eDP interface ensures seamless compatibility with a wide range of modern laptops.

Advantages

This panel offers a native resolution of 1366 x 768 (WXGA HD) with a 16:9 aspect ratio, providing ample screen real estate for productivity and multimedia. The LED backlight delivers consistent brightness at 200 cd/m², and the 400:1 contrast ratio ensures readable text and distinct image separation. With a 60 Hz refresh rate and 8 ms response time, it handles standard video playback and office tasks smoothly. The 30-pin eDP connector and side mounting brackets make installation straightforward for compatible systems.

Suitable for

• Replacing a damaged or faulty 13.3-inch WXGA HD TN panel in laptops and notebooks
• Users who need a cost-effective, reliable screen for daily office work, web browsing, and media consumption
• Technicians and DIY enthusiasts performing laptop screen repairs
• Compatible with universal 13.3" eDP WXGA HD laptop models (verify connector and mounting hole positions before purchase)

Key specifications

• Screen Size: 13.3 inches
• Resolution: 1366 x 768 (WXGA HD)
• Panel Type: TN (Twisted Nematic)
• Surface Finish: Anti-Glare (Matte)
• Backlight Type: LED
• Interface: eDP (Embedded DisplayPort), 30-pin
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m² (typical)
• Contrast Ratio: 400:1 (typical)
• Viewing Angles: 90° horizontal / 50° vertical
• Color Gamut: 45% NTSC
• Response Time: 8 ms (typical)
• Touchscreen: No
• Condition: New
• Mounting Brackets: Side brackets
• Power Consumption: 3.5 W (typical)

Recommendations

Before ordering, confirm your laptop's exact screen model, connector type (30-pin eDP), and mounting bracket position. This panel is a direct replacement for many 13.3-inch WXGA HD eDP TN displays, but compatibility varies by manufacturer. For best results, compare the original screen's part number and dimensions with this unit.
