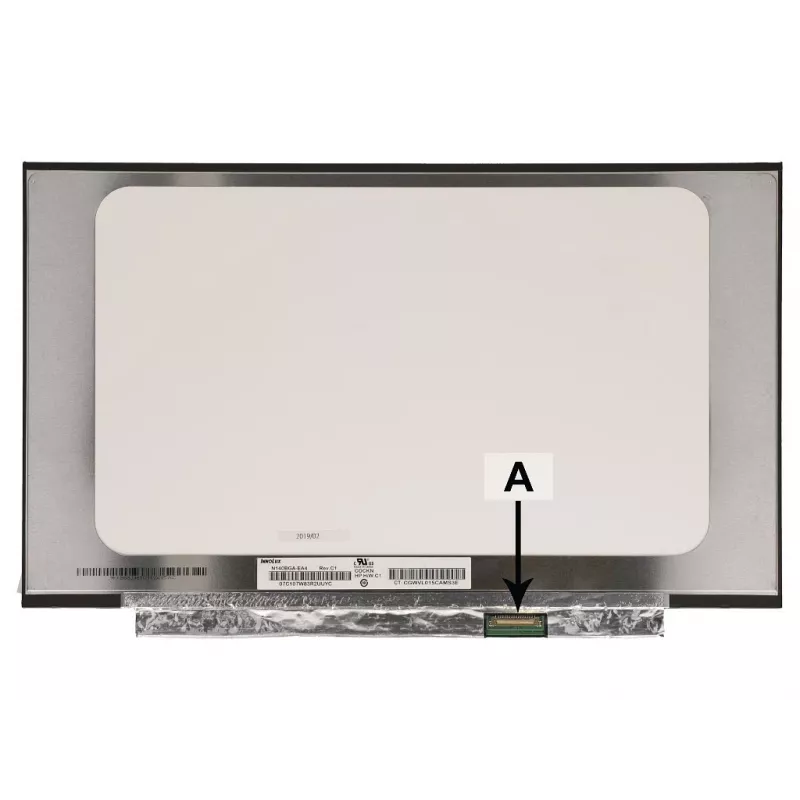

2-power 14,0" 1366x768 HD LED 30 Pin Mate (2P-KL.1400E.008)

A cracked or dim laptop screen can make work impossible. This 2-Power 14.0-inch replacement panel restores crisp visuals with a matte finish that cuts glare in bright rooms. It is a direct-fit solution for many laptops using a 30-pin eDP connection, offering a cost-effective way to bring your device back to life.

Who is it for

This panel is ideal for technicians, IT departments, and DIY users who need a reliable replacement for a 14.0-inch laptop display. If your original screen has dead pixels, backlight failure, or physical damage, this new panel provides a factory-fresh alternative without the cost of a new laptop.

Main features

• 14.0-inch diagonal with 1366x768 HD resolution for clear text and images
• LED backlight for energy efficiency and consistent brightness
• Matte (anti-glare) surface reduces reflections and eye strain
• 30-pin eDP connector for easy installation in compatible laptops
• 16:9 aspect ratio ideal for productivity and multimedia
• TN panel with 220 nits brightness suitable for indoor use

Specifications

• Display Size: 14.0 inches
• Resolution: 1366 x 768 pixels
• Display Technology: LED
• Backlight Type: LED
• Screen Finish: Matte (Anti-Glare)
• Aspect Ratio: 16:9
• Connector Type: 30 Pin eDP (Embedded DisplayPort)
• Refresh Rate: 60 Hz
• Brightness: 220 nits (Typical)
• Panel Type: TN (Twisted Nematic)
• Viewing Angle: 45/45/20/40 (L/R/U/D Typical)
• Color Gamut: 45% NTSC (Typical)
• Response Time: 8 ms (Typical)
• Condition: New
• Touchscreen: No
• Digitizer: No
• Frame/Bezel Included: No (Panel Only)
• Power Consumption: Approx. 3-5W
• Operating Temperature: 0°C to 50°C

Tips

Before ordering, verify that your laptop uses a 30-pin eDP connector and a 14.0-inch 1366x768 panel. Check the mounting brackets and cable position to ensure compatibility. Handle the panel by its edges and avoid touching the surface to prevent damage. A professional installation is recommended if you are not familiar with laptop disassembly.
