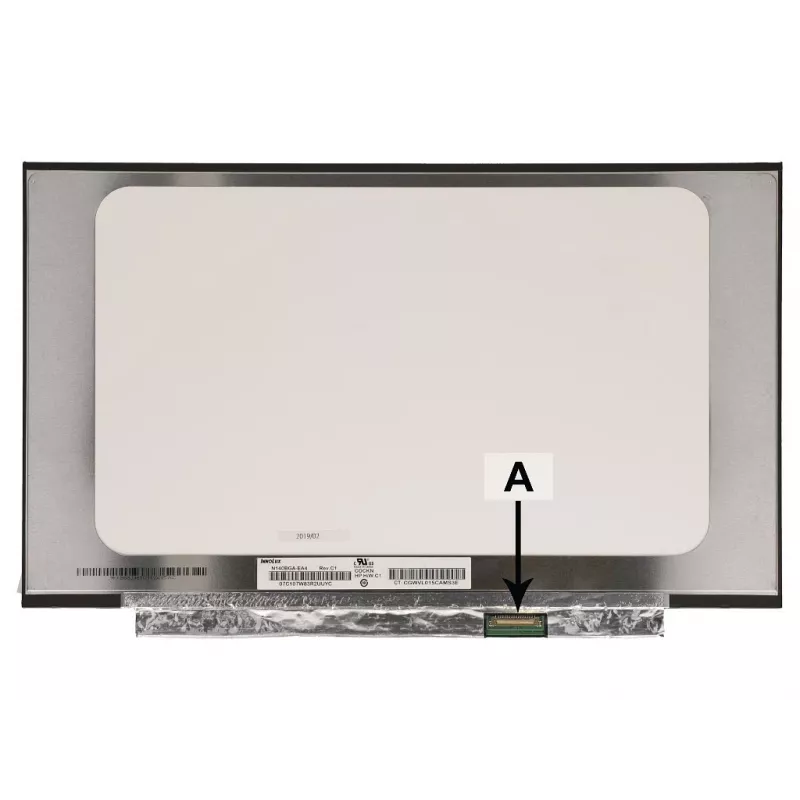

2-power 14.0 1366x768 HD LED 30 Pin Mate (2P-KL.1400H.028)

Upgrade your laptop display with this 14.0-inch HD LED screen, delivering crisp 1366x768 resolution and a matte anti-glare finish for comfortable viewing in any lighting. The 30-pin eDP connector ensures a reliable, high-speed signal interface, while the LED backlight provides consistent brightness and energy efficiency. Designed as a universal replacement for compatible 14.0-inch laptops, this panel offers a straightforward installation with top and bottom mounting brackets.

Advantages

The matte surface reduces reflections, making it ideal for use in bright environments or outdoors. With a 16:9 aspect ratio and 60 Hz refresh rate, it handles everyday tasks, video playback, and office applications smoothly. The TN panel offers fast response times, and the 262K color depth ensures accurate color representation for general use. The LED backlight not only lowers power consumption but also extends the panel's lifespan compared to traditional CCFL backlights.

Suitable for

• Replacing a damaged or faulty 14.0-inch HD laptop screen
• DIY laptop repair and refurbishment projects
• Users who need a reliable, cost-effective display solution
• Environments with high ambient light where glare reduction is crucial

Key specifications

• Display size: 14.0 inches
• Resolution: 1366 x 768 (HD)
• Panel type: TN, LED backlight
• Connector: 30-pin eDP
• Surface: Matte (anti-glare)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast ratio: 400:1
• Response time: 8 ms
• Viewing angles: 45/45/20/40 degrees (L/R/U/D)
• Display colors: 262K (6-bit)
• Backlight voltage: 3.3V
• Mounting: Top and bottom brackets

Recommendations

For best results, verify your laptop's screen size, resolution, and connector type before ordering. Professional installation is recommended to avoid damage. Handle the panel by its edges and avoid touching the surface to prevent smudges or scratches.
