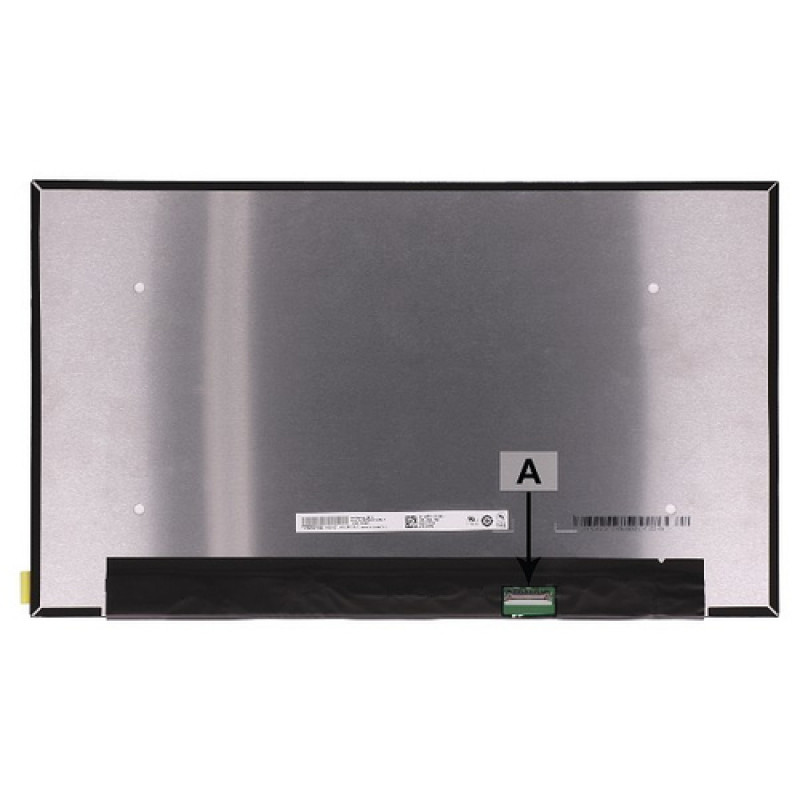

2-power 15.6 1366x768 HD LED mate (2P-0V5787)

Upgrade your laptop's display with this 15.6-inch LED-backlit screen, delivering crisp 1366x768 HD resolution and a matte anti-glare finish for comfortable viewing in any lighting. Its 40-pin LVDS connector and side mounting brackets ensure straightforward installation into a wide range of compatible laptops.

Advantages

The matte coating reduces reflections, making it ideal for office work, web browsing, and multimedia. With a typical brightness of 220 cd/m² and a 500:1 contrast ratio, images appear clear and vibrant. The TN panel offers fast 8 ms response time, minimizing motion blur during video playback. Low power consumption (~3.5W) helps extend battery life.

Suitable for

• Laptops requiring a 15.6" 1366x768 40-pin LVDS matte panel
• Users seeking a cost-effective replacement screen
• Professionals and students needing reliable everyday display performance

Key specifications

• Screen size: 15.6 inches
• Resolution: 1366 x 768 (WXGA HD)
• Display technology: LED backlight
• Screen finish: Matte (anti-glare)
• Connector: 40-pin LVDS (left bottom)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² typical
• Response time: 8 ms typical
• Panel type: TN
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Contrast ratio: 500:1 typical
• Color gamut: 45% NTSC
• Mounting type: Side brackets
• Backlight life: 10,000 hours minimum
• Power consumption: ~3.5W
• Condition: New

Recommendations

Before purchasing, verify your laptop's screen size, resolution, connector type, and mounting position. Professional installation is recommended to avoid damage. Handle the panel by its edges and avoid touching the surface.
