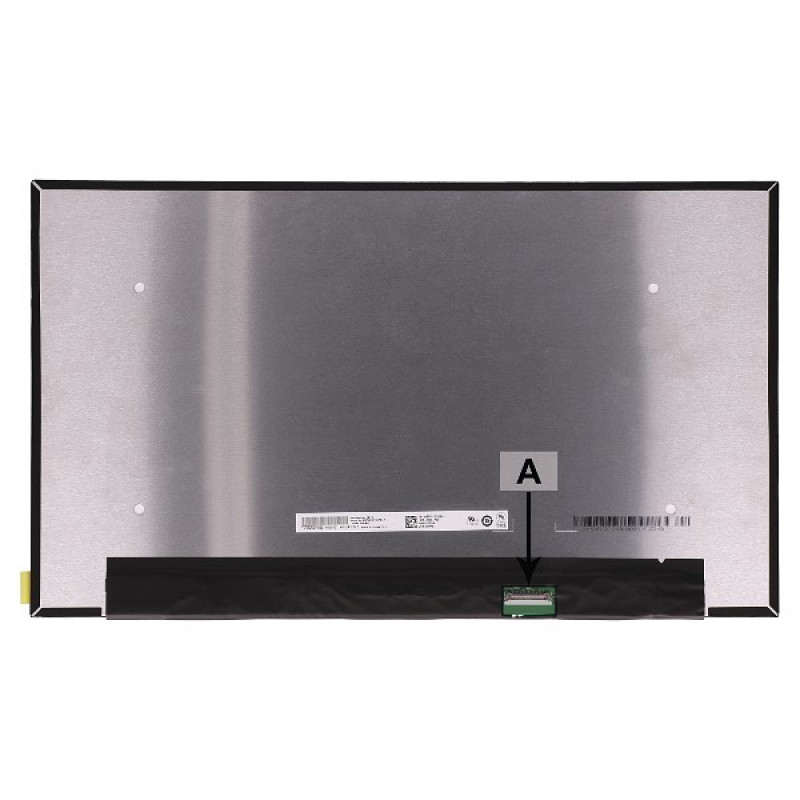

2-power 15.6 1366x768 HD LED mate (2P-MB156AN01-2)

Replacement laptop display panel delivering crisp HD visuals with a matte finish that cuts reflections, ideal for everyday computing. This 15.6-inch TN screen with LED backlight offers a 1366x768 resolution and 16:9 aspect ratio, ensuring compatibility with a wide range of notebooks. The 40-pin LVDS connector and side mounting brackets make installation straightforward for technicians and DIY users alike.

Advantages

The matte surface reduces glare, making it easier to work in bright environments without eye strain. LED backlighting provides consistent brightness at low power consumption (approximately 3.5 W), extending battery life. The TN panel delivers fast 8 ms response time, suitable for office applications and video playback. Universal compatibility with 15.6-inch HD laptops using 40-pin LVDS ensures broad usability.

Suitable for

• Laptop repair professionals sourcing reliable replacement screens
• Business users needing a cost-effective display upgrade
• Students and home users replacing a cracked or faulty panel
• System integrators building portable workstations

Key specifications

• Screen size: 15.6 inches
• Resolution: 1366 x 768 (HD)
• Panel type: TN with LED backlight
• Surface: Matte (anti-glare)
• Connector: 40-pin LVDS
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Contrast ratio: 400:1
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Response time: 8 ms
• Color gamut: 45% NTSC
• Mounting: Side brackets included

Recommendations

Verify your laptop's screen size, resolution, and connector type before ordering. This panel is ideal for users seeking a glare-free display with standard HD clarity and low power draw.
