2-Power 15,6" 1920x1080 FHD IPS Mate (2P-5D11M05431)

When a laptop screen cracks or develops dead pixels, a reliable replacement panel brings the device back to life. The 2-Power 15.6-inch FHD IPS display is a direct-fit solution for technicians and DIY upgraders working on compatible notebooks. Its 1920x1080 resolution and IPS technology deliver sharp visuals and consistent colors from wide viewing angles, while the matte finish reduces glare in bright offices, workshops, or outdoor settings. The panel uses a standard 30-pin eDP connector positioned bottom-right, making installation straightforward for many 15.6-inch laptops with Full HD eDP interfaces.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching), TFT Active Matrix
• Surface: Matte (anti-glare)
• Backlight: LED
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 250 cd/m² (typical)
• Contrast ratio: 800:1 (typical)
• Viewing angles: 85°/85°/85°/85° (CR≥10)
• Color gamut: 45% NTSC
• Response time: 30 ms (typical)

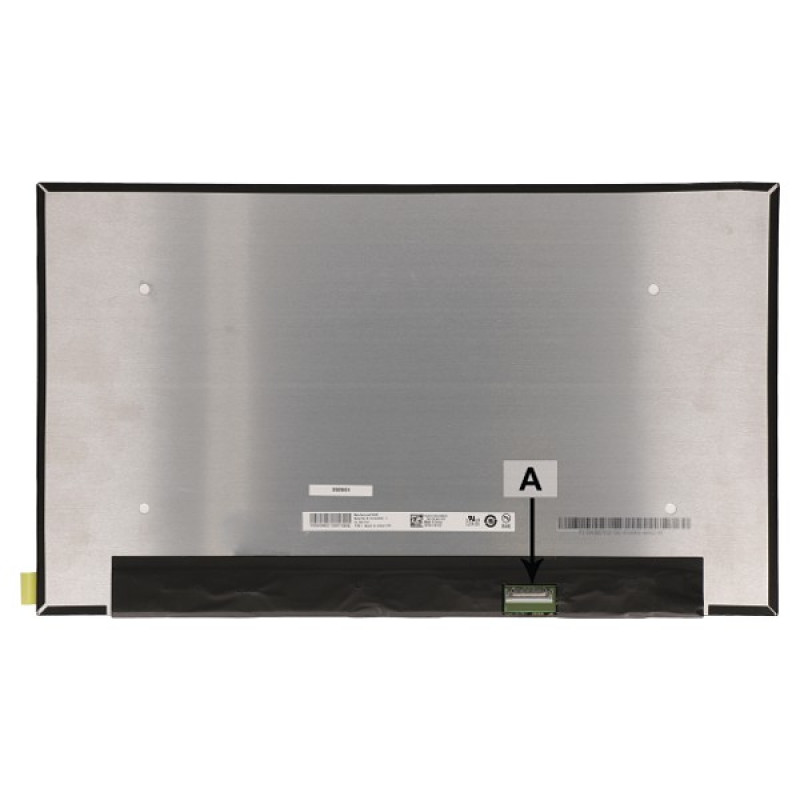

• Connector: 30-pin eDP, bottom-right position
• Mounting: Bracketless design
• Condition: New

Why choose it

This 2-Power panel matches the specifications of many original 15.6-inch FHD screens, offering a cost-effective alternative without sacrificing image quality. IPS technology ensures accurate colors and wide viewing angles, essential for photo editing, presentations, or collaborative work. The matte coating minimizes reflections, reducing eye strain during long sessions. With a standard 30-pin eDP connector, it is compatible with a broad range of laptops, and the bracketless design simplifies installation for experienced users.

Ideal use cases

• Replacing a damaged or faulty laptop display in compatible 15.6-inch models
• Upgrading a laptop from a lower-resolution or TN panel to Full HD IPS
• Refurbishing used laptops for resale or internal deployment
• DIY repair projects for tech-savvy individuals

Good to know

Before ordering, confirm that your laptop uses a 15.6-inch 30-pin eDP Full HD panel and that the connector is located on the bottom right when viewed from the back. The screen does not include mounting brackets, as it is designed to be secured by the laptop's existing bezel and frame. Installation requires careful handling of the delicate connector and may involve adhesive strips or screws depending on the laptop model. Always disconnect the battery and follow proper ESD precautions during replacement.
