2-POWER 15,6 pulgadas 1920x1080 FHD LED TN Mate (2P-SBB0X51706)

A cracked or dim laptop display can bring productivity to a halt. The 2-POWER 15.6-inch Full HD panel restores crisp visuals with a matte finish that reduces glare, making it ideal for office work, study, or travel. This LED-backlit TN screen delivers 1920x1080 resolution and a 30-pin eDP connection for straightforward installation in compatible laptops.

Who is it for

Technicians and DIY upgraders replacing a faulty 15.6-inch FHD screen in laptops that use a 30-pin eDP connector. Suitable for users who need a reliable, cost-effective display with a matte surface for comfortable viewing in bright environments.

Main features

• 15.6-inch diagonal with 1920x1080 Full HD resolution for sharp text and images
• LED backlight provides bright, energy-efficient illumination
• Matte (anti-glare) coating reduces reflections and eye strain
• TN panel with 16:9 aspect ratio, 60 Hz refresh rate, and typical brightness of 220-250 nits

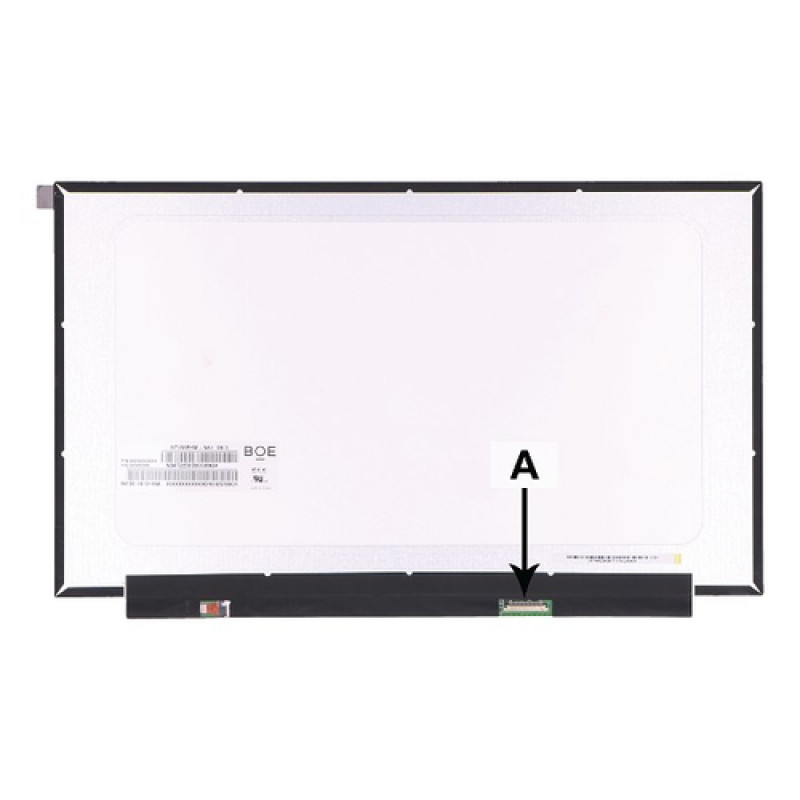

• 30-pin eDP connector located bottom right (facing back of panel) for compatibility with many laptop models
• Side bracket mounting for secure installation

Specifications

• Screen size: 15.6 inches (39.62 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Matte (anti-glare)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 220-250 nits (cd/m²)
• Contrast ratio: 400:1 - 500:1 (typical)
• Color gamut: 45% NTSC (typical)
• Viewing angles: 45/45/20/40 (L/R/U/D) (typical)
• Response time: 8-12 ms
• Connector: 30-pin eDP (Embedded DisplayPort), bottom right
• Display technology: Active Matrix TFT LCD
• Power consumption: approx. 4-6 W
• Mounting: side brackets

Tips

Before ordering, confirm your laptop uses a 30-pin eDP connector and that the screen size and resolution match. Handle the panel by its edges and avoid touching the surface to prevent damage. Test the screen before final assembly to ensure proper connection and function.
