2-power 15,6" WXGA 1366x768 HD LED mate (2P-LP156WHU(TP)(G1))

When a laptop screen cracks or dims, a technician needs a reliable replacement that restores the display to factory clarity. This 2-POWER 15.6-inch WXGA panel is the direct fix for notebooks with a 1366x768 HD LED matte screen and a 40-pin LVDS connector. It’s a new, universal-compatible panel built for straightforward installation in common 15.6-inch laptops, delivering crisp text and comfortable viewing without glare.

Key specifications

• Screen size: 15.6 inches (16:9 aspect ratio)
• Resolution: 1366 x 768 (WXGA HD)
• Display technology: LED backlit, TN panel
• Surface: Matte (anti-glare)

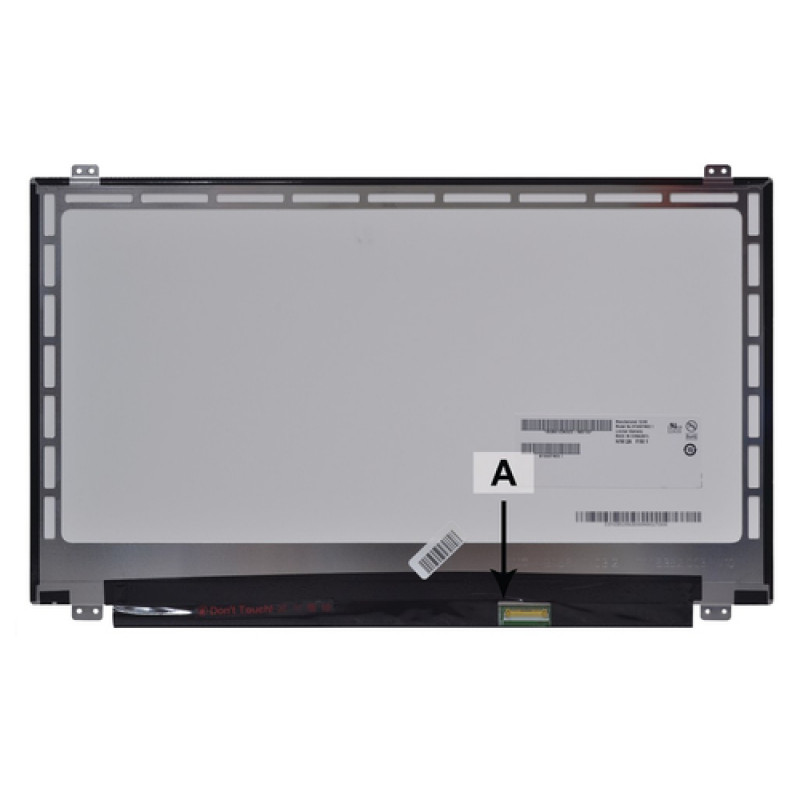

• Connector: 40-pin LVDS, located left bottom
• Brightness: 200 cd/m² typical
• Contrast ratio: 400:1 typical
• Response time: 8 ms typical
• Viewing angles: 45° left/right, 20° up, 45° down
• Colour gamut: 45% NTSC
• Backlight life: 10,000 hours minimum
• Refresh rate: 60 Hz

Why choose it

This panel offers a balance of affordability and dependable performance. The matte finish reduces reflections, making it easier to work near windows or under bright office lights. With a standard 40-pin LVDS interface and universal compatibility, it fits a wide range of 15.6-inch laptops, simplifying inventory for repair shops and IT departments. The LED backlight provides consistent brightness and a long service life, while the TN panel ensures fast response for everyday tasks.

Ideal use cases

• Replacing a broken or faulty 15.6-inch laptop screen in a repair workshop
• Upgrading a dim or scratched display on an older notebook
• Maintaining a fleet of business laptops with a standardised spare part
• DIY repairs for users comfortable with opening their laptop

Good to know

Before ordering, verify your laptop’s screen size, resolution, connector type, and mounting position. This panel is designed for 40-pin LVDS connections with the connector on the left bottom. Installation requires careful handling and basic tools; professional installation is recommended if you are unsure. The panel is new and tested to meet original specifications.
