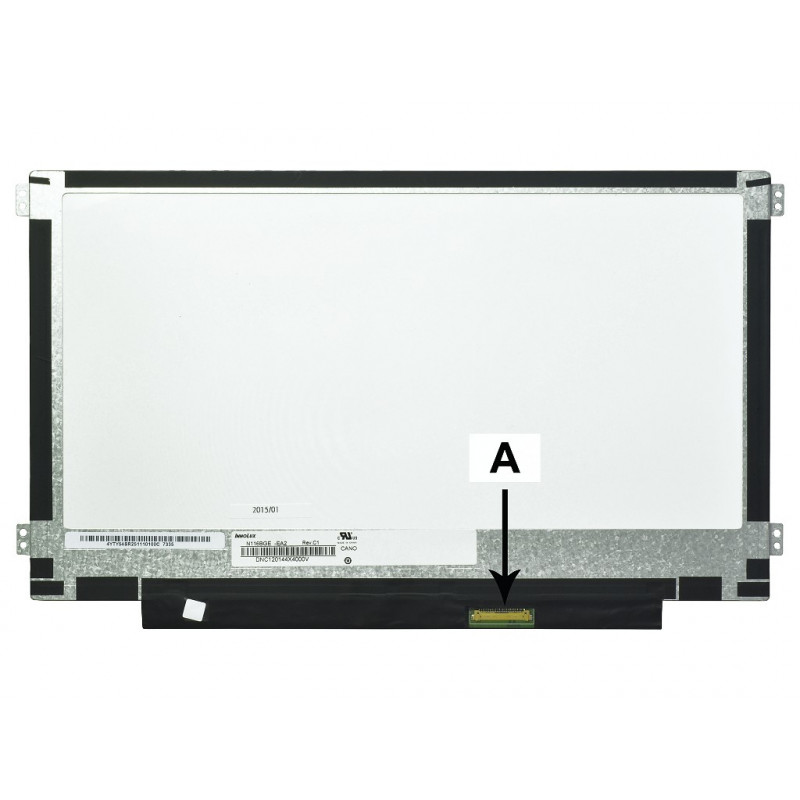

2-power 2P-296KP - Pantalla - 29,5 cm (11,6") - WXGA

When a laptop screen fails, the 2-POWER 2P-296KP offers a direct replacement that matches original factory specifications without the premium price. This 11.6-inch WXGA panel is engineered for compatibility with a wide range of notebooks, providing a crisp 1366x768 resolution and a matte finish that reduces glare in bright environments. Unlike generic panels, the 2P-296KP uses a 30-pin eDP connector and LED backlighting, ensuring a straightforward installation and consistent performance.

Highlights

• 11.6-inch diagonal (29.5 cm) with WXGA 1366x768 resolution for clear, detailed visuals
• LED backlight delivers 200 cd/m² brightness and a 400:1 contrast ratio for readable text and images
• Matte (anti-glare) surface treatment minimizes reflections, ideal for office or outdoor use
• 30-pin eDP connector ensures compatibility with modern laptop motherboards
• TN panel with 8 ms response time suitable for everyday computing tasks
• Low power consumption of approximately 3W helps extend battery life

In daily use

Installing the 2P-296KP restores your laptop to a like-new viewing experience. The 16:9 aspect ratio is perfect for watching videos or working with multiple windows side by side. While the TN panel offers narrower viewing angles than IPS, it provides a cost-effective solution for users who primarily view the screen head-on. The matte coating is a significant advantage in offices with overhead lighting or near windows, as it diffuses reflections that would otherwise cause eye strain.

Full specifications

• Display size: 11.6 inches (29.5 cm)
• Native resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight technology: LED
• Panel type: TN (Twisted Nematic)
• Surface treatment: Matte (Anti-Glare)
• Connector type: 30-pin eDP (Embedded DisplayPort)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (nits)
• Contrast ratio: 400:1
• Viewing angle (H/V): 45°/45° (H), 20°/40° (V)
• Response time: 8 ms
• Color support: 262,144 colors (6-bit)
• Display technology: Active Matrix TFT LCD
• Mounting: Side brackets
• Power consumption: ~3W
• Operating temperature: 0°C to 50°C

Final note

For a reliable, budget-friendly screen replacement, the 2-POWER 2P-296KP delivers the essential features you need. Its matte finish and LED backlighting make it a practical choice for everyday laptops, and the 30-pin eDP connector ensures compatibility with many popular models. Verify your laptop's panel specifications before ordering to ensure a perfect fit.
