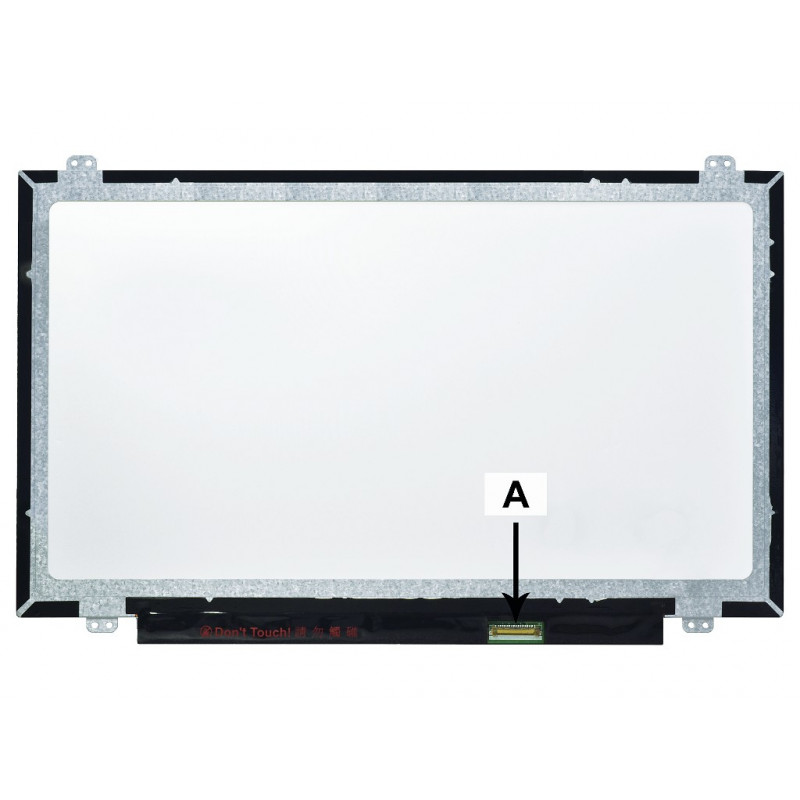

2-power 2P-801083-392 - 35,6 cm (14") - WXGA

When your laptop screen is cracked, dim, or showing lines, a replacement panel restores clarity and productivity. This 14-inch WXGA display from 2-POWER delivers a crisp 1366x768 resolution with LED backlighting for bright, energy-efficient visuals. The matte surface reduces glare, making it easier to work in bright environments or under office lighting. Compatible with a wide range of laptops that use a 30-pin eDP connector, this panel is a cost-effective alternative to replacing the entire device.

Who is it for

This screen is ideal for technicians, IT departments, and DIY users who need to repair a laptop with a 14-inch display. It suits students, professionals, and home users looking to extend the life of their notebook without investing in a new machine. If your laptop has a 30-pin eDP interface and requires a WXGA resolution, this panel is a direct fit.

Main features

• 14-inch (35.6 cm) active matrix TFT LCD with WXGA 1366x768 resolution
• LED backlight for lower power consumption and longer lifespan
• Matte (anti-glare) surface for comfortable viewing in various lighting conditions
• 30-pin eDP connector for easy installation
• 60 Hz refresh rate for smooth motion
• TN panel with 220 cd/m² brightness and 45% NTSC color gamut
• Wide compatibility with many laptop models requiring 14-inch WXGA eDP 30-pin displays

Specifications

• Screen size: 14 inches (35.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight type: LED
• Surface type: Matte (anti-glare)
• Connector type: eDP 30-pin
• Refresh rate: 60 Hz
• Panel type: TN (Twisted Nematic)
• Brightness: 220 cd/m² (nits)
• Response time: 8 ms
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)
• Color gamut: 45% NTSC
• Touchscreen: No
• Condition: New
• Bezel included: No
• Mounting brackets included: No

Tips

Before ordering, verify your laptop's screen size, resolution, and connector type. The eDP 30-pin connector is common but not universal; check your service manual or existing panel. Installation requires careful handling—avoid touching the LCD surface and use proper tools. Test the panel before final assembly to ensure functionality. This screen is not touch-enabled and does not include a bezel or mounting brackets; reuse your existing hardware or purchase separately if needed.
