2-power 2P-B156XTN03.4 - 39,6 cm (15,6") - WXGA

When a laptop display fails, the replacement must match exactly—not just in size, but in connector position, mounting points, and signal type. The 2-POWER 2P-B156XTN03.4 is a direct-compatible 15.6-inch WXGA panel engineered around the AU Optronics B156XTN03.4 specification, so it drops into many business and consumer notebooks without firmware adjustments. Its 40-pin LVDS interface and bottom-right connector orientation mirror the original part, while the LED backlight keeps power draw low and brightness consistent across the whole screen.

Highlights

• 15.6-inch diagonal (39.6 cm) with WXGA 1366 x 768 resolution and 16:9 aspect ratio
• TN panel with LED backlight for sharp text and reliable everyday performance
• Matte surface reduces glare and fingerprints, improving visibility in bright rooms

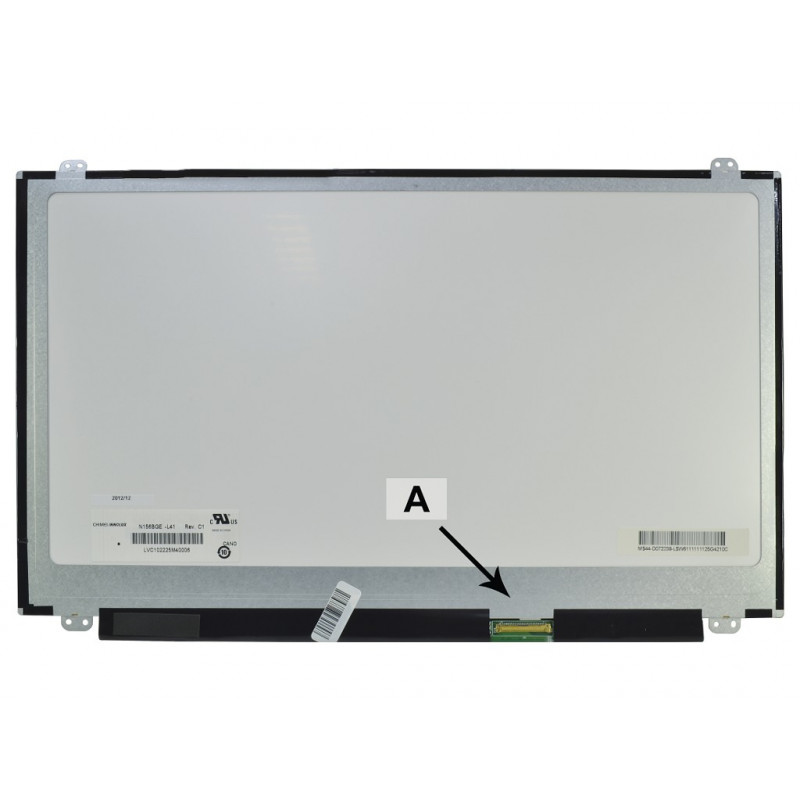

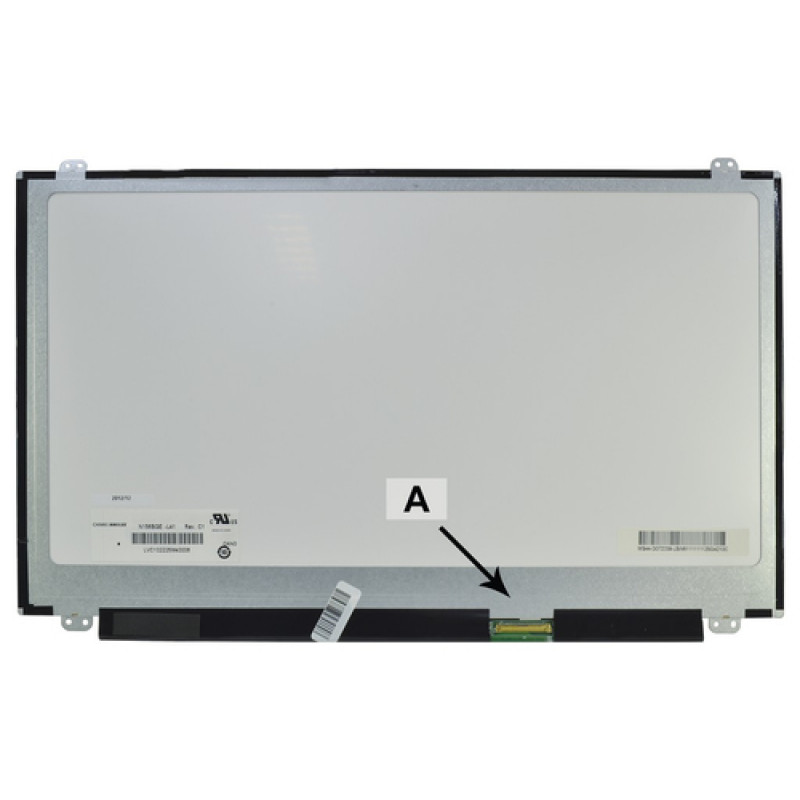

• 40-pin LVDS connector positioned bottom-right (viewed from the back) for straightforward installation
• Top and bottom mounting brackets align with standard laptop chassis designs
• 60 Hz refresh rate and 8 ms typical response time handle office work, video, and casual browsing smoothly

In daily use

This panel is built for practicality. The 200 cd/m² typical brightness and 500:1 contrast ratio deliver clear images for documents, spreadsheets, and web content. Viewing angles of 45/45/20/40 degrees (L/R/U/D) are typical for TN technology—fine for single-user tasks, though colours may shift slightly when viewed from extreme vertical angles. The matte finish cuts reflections from overhead lighting, making it a solid choice for offices, classrooms, and home setups. Because it uses the same LVDS signalling as the original AUO panel, it works with existing cables and graphics drivers without extra converters.

Full specifications

• Brand: 2-POWER
• Model: 2P-B156XTN03.4
• Screen size: 15.6 inch (39.6 cm)
• Resolution: WXGA (1366 x 768)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic) TFT-LCD
• Backlight: LED
• Surface finish: Matte
• Connector type: 40-pin LVDS
• Connector position: Bottom right (when facing the back of the screen)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 500:1 (typical)
• Viewing angles: 45/45/20/40 degrees (L/R/U/D)
• Response time: 8 ms (typical)
• Colour gamut: 45% NTSC
• Mounting: Top and bottom brackets
• Compatibility: Laptops using AU Optronics B156XTN03.4 or equivalent 40-pin LVDS panels

Final note

A dependable replacement screen that matches the original AUO panel's interface and fit, ready to bring your laptop back to full clarity.
