2-power 2P-B156XW03V.1 - Pantalla - 39,6 cm (15,6") - WXGA

Laptop technicians and DIY upgraders replacing a cracked or dim 15.6-inch panel will appreciate this 2-POWER 2P-B156XW03V.1 display. It drops into many mainstream notebooks that call for a WXGA 30-pin eDP screen, restoring a bright, clear picture without soldering or firmware changes.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Panel type: TN, Active Matrix TFT LCD
• Backlight: LED
• Aspect ratio: 16:9
• Surface finish: Glossy

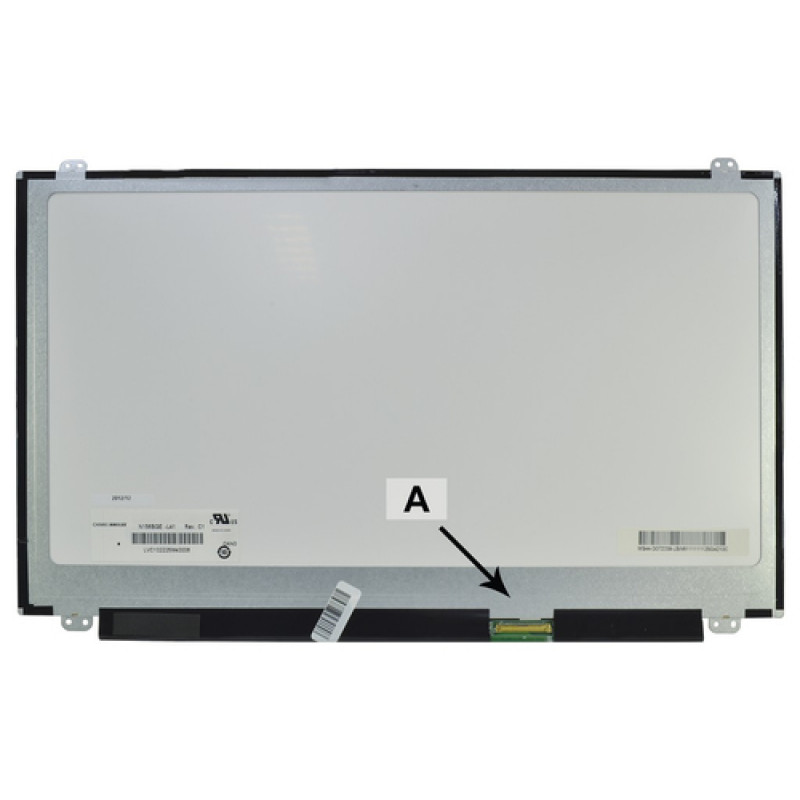

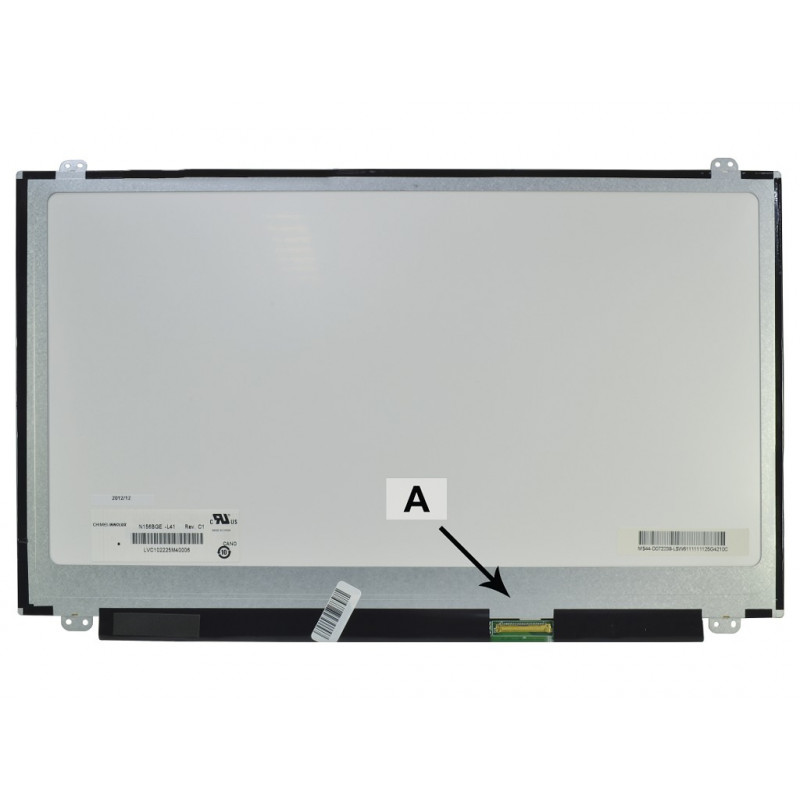

• Connector: 30-pin eDP, bottom right (viewed from back)
• Brightness: 200 cd/m²
• Color gamut: 45% NTSC
• Response time: 8 ms
• Refresh rate: 60 Hz
• Voltage: 3.3V
• Condition: New

Why choose it

This panel matches the exact electrical and mechanical footprint of the original AU Optronics B156XW03 V.1, so it fits without brackets or cable adapters. The LED backlight runs cool and consumes little power, while the glossy coating boosts perceived contrast for everyday tasks. Each unit is tested before shipping to ensure no dead pixels or backlight bleed.

Ideal use cases

• Replacing a broken laptop screen in home or office repairs
• Upgrading a dim CCFL panel to a brighter LED backlight
• Refurbishing used notebooks for resale or donation
• Building a portable monitor with a compatible controller board

Good to know

Installation requires basic screwdriver skills and careful handling of the display cable. The 30-pin eDP connector is standard on many laptops from 2012 onward, but always verify your original screen's part number and connector position before ordering. The panel is new, not a pull, and ships in anti-static packaging with protective film on both surfaces.
