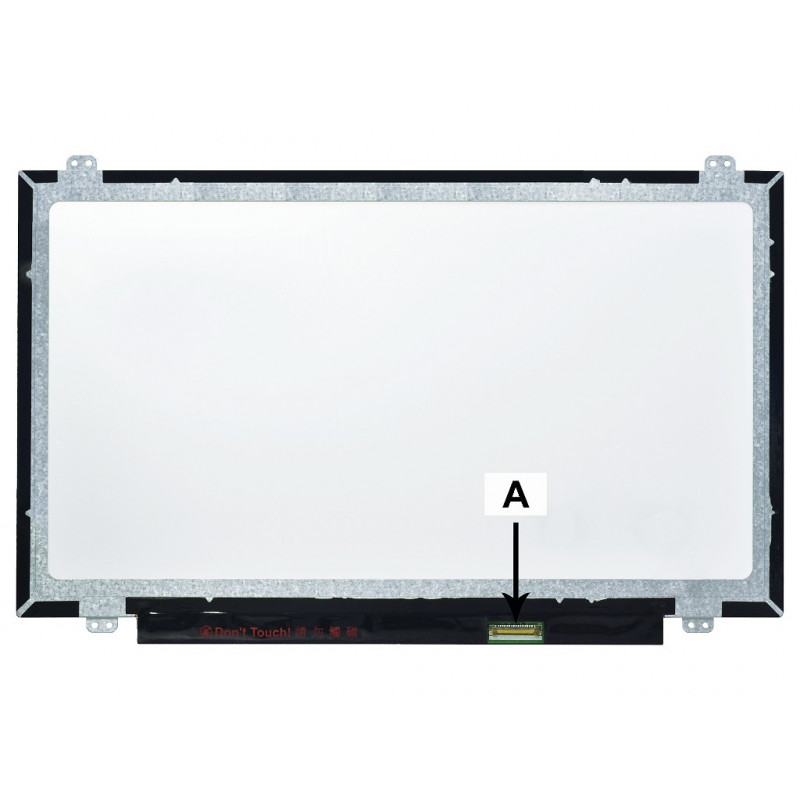

2-power 2P-CYHFX - pantalla - 35,6 cm (14") - WXGA

When a laptop screen cracks or dims, service technicians and IT departments need a dependable replacement that restores clarity without breaking the bank. The 2-Power 2P-CYHFX is a 14-inch WXGA (1280 x 800) LED-backlit display panel built for exactly that job. With a 30-pin eDP connector and a matte anti-glare surface, it drops into a wide range of business and education laptops, bringing back crisp text and comfortable viewing in offices, classrooms, and repair benches.

Key specifications

• Screen size: 14 inches (35.6 cm)
• Resolution: 1280 x 800 (WXGA), 16:10 aspect ratio
• Panel type: TN, LED-backlit LCD
• Surface: Matte (anti-glare)
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Contrast ratio: 500:1 (typical)
• Response time: 8 ms (typical)
• Color gamut: 45% NTSC
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Power consumption: 4 W (typical), 3.3 V input

Why choose it

This panel matches the exact electrical and mechanical footprint of many original 14-inch WXGA screens, so installation is straightforward for qualified technicians. The matte finish reduces reflections under fluorescent lighting, and the LED backlight delivers consistent brightness with low power draw. It is a cost-effective way to extend the life of a laptop that would otherwise be scrapped.

Ideal use cases

• Replacing a damaged or faulty display in business notebooks
• Refurbishing off-lease laptops for resale or internal redeployment
• Upgrading a dim or scratched screen in educational devices
• Stocking repair shops with a universal 14-inch WXGA panel

Good to know

The 2P-CYHFX is a bare panel without mounting brackets or cables; reuse the original hardware from the laptop. Always verify the exact connector position and mounting holes before ordering, as some chassis use mirrored or extended cables. Handle the panel by its edges and avoid pressure on the surface to prevent dead pixels or backlight damage.
