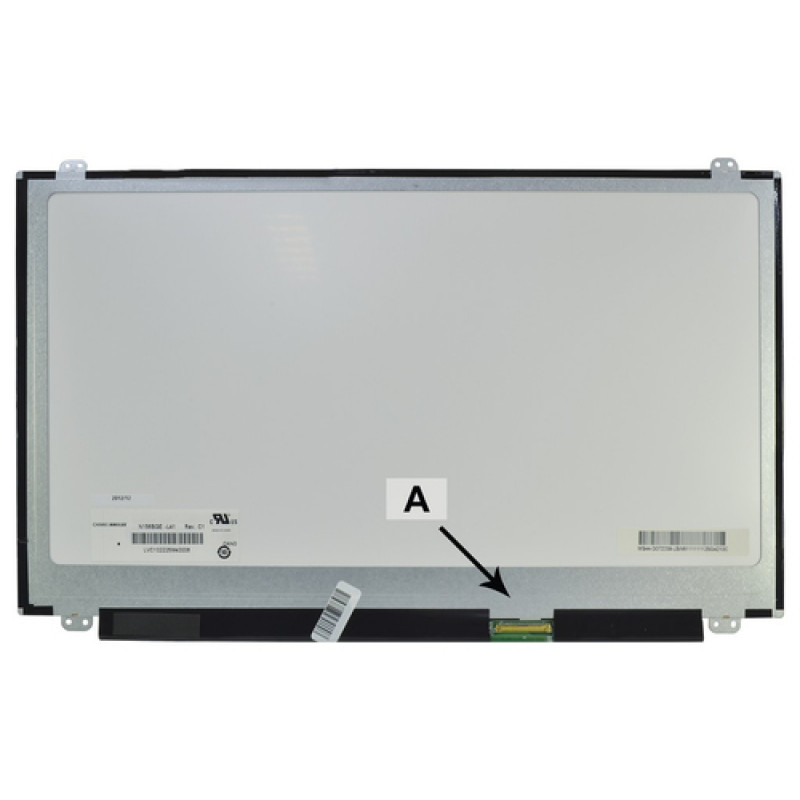

2-power 2P-LP156WH3-TLT2 - 39,6 cm (15,6") - WXGA

For laptops that demand a reliable 15.6-inch display without compromise, the 2-POWER 2P-LP156WH3-TLT2 delivers a crisp WXGA picture in a slim, energy-efficient LED-backlit panel. Unlike generic replacements, this screen is built around the LP156WH3-TLT2 specification, ensuring a direct fit for compatible notebooks and straightforward installation with its standard 40-pin LVDS connector.

Highlights

• 15.6-inch (39.6 cm) TFT active matrix LCD with WXGA resolution (1366 x 768) and 16:9 aspect ratio
• LED backlight for lower power consumption and longer life compared to CCFL panels
• Glossy TN surface with 220 cd/m² typical brightness and 60 Hz refresh rate

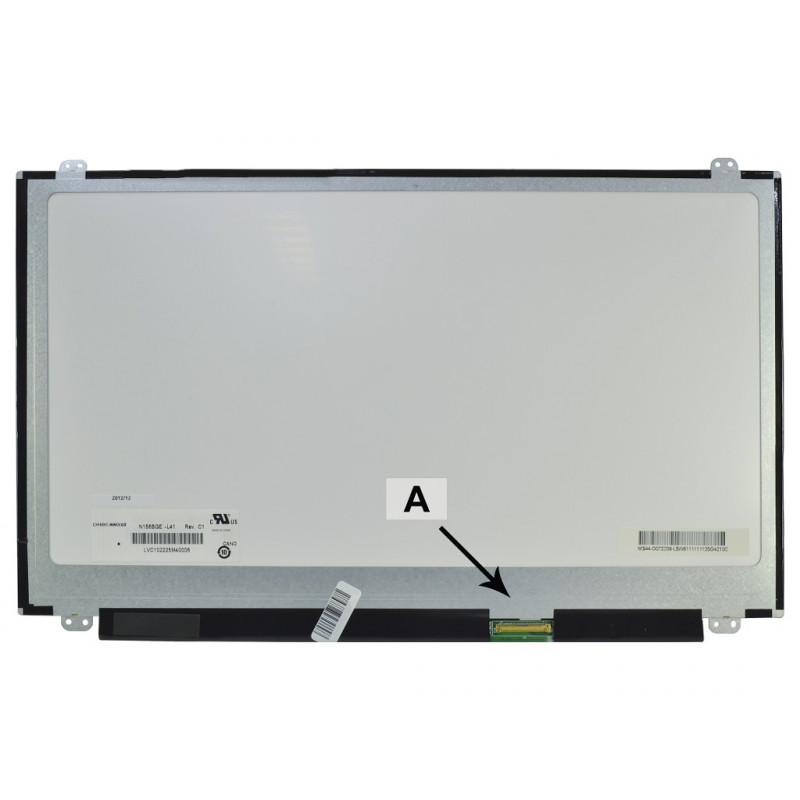

• 40-pin LVDS connector, compatible with many laptops using the LP156WH3-TLT2 panel
• New, bare panel without bezel or mounting brackets – reuse existing hardware from the original screen

In daily use

Text and images appear sharp and clear, while the glossy finish enhances contrast for video and photo viewing. The TN panel keeps response time at 8 ms, so fast-moving content remains smooth without ghosting. Viewing angles are adequate for single-user laptop use, with 45° horizontal and 20° upward visibility. With 262,144 colours (6-bit), everyday tasks, web browsing, and office applications are displayed accurately.

Full specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: WXGA (1366 x 768)
• Aspect ratio: 16:9
• Display technology: TFT active matrix, TN panel
• Backlight type: LED
• Surface finish: Glossy
• Brightness (typical): 220 cd/m²
• Colour support: 262,144 colours (6-bit)
• Response time: 8 ms
• Refresh rate: 60 Hz
• Viewing angles: 45/45/20/40 degrees (L/R/U/D)
• Connector type: 40-pin LVDS
• Touchscreen: No
• Condition: New
• Mounting: Side brackets (not included, typically on original panel)
• Bezel included: No (bare panel)
• Panel manufacturer part number: LP156WH3-TLT2

Final note

Before ordering, verify that your laptop uses the LP156WH3-TLT2 panel or a compatible 15.6-inch WXGA 40-pin LVDS screen. This replacement is a bare panel only – you will need to transfer the bezel, brackets, and cable from your original display.
