2-power 2P-LP156WHB-TPH1 - 39,6 cm (15,6") panel de pantalla para portátil

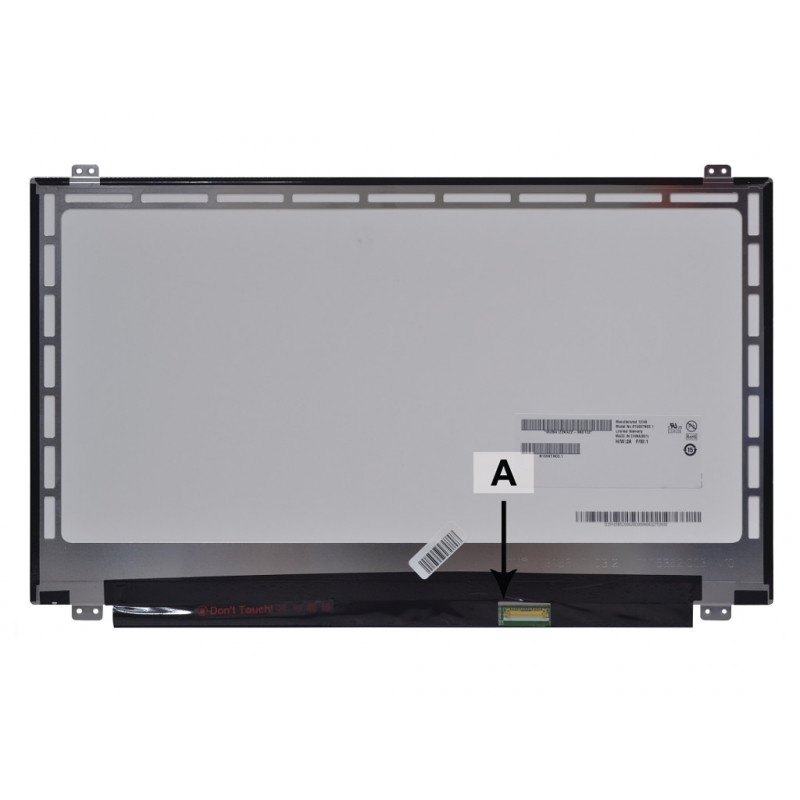

This 15.6-inch laptop screen panel delivers crisp WXGA HD visuals with a glossy finish and LED backlight, making it a reliable replacement for compatible notebooks. The 2-POWER 2P-LP156WHB-TPH1 offers a 1366 x 768 resolution, 16:9 aspect ratio, and a 40-pin LVDS connector for straightforward installation.

Advantages

Experience vibrant images with a 200 cd/m² brightness and 400:1 contrast ratio. The TN panel provides fast 8 ms response time, ideal for everyday computing, while the 60 Hz refresh rate ensures smooth motion. Its side bracket mounting simplifies fitting into a wide range of laptop models.

Suitable for

• Laptops requiring a 15.6-inch WXGA HD display with 40-pin LVDS interface
• Users seeking a cost-effective replacement for broken or dim screens
• Compatible with LP156WHB-TPH1 or equivalent panels

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Panel type: TN, Active Matrix TFT LCD
• Backlight: LED, glossy surface
• Connector: 40-pin LVDS
• Brightness: 200 cd/m²
• Contrast ratio: 400:1
• Response time: 8 ms
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Color gamut: 45% NTSC
• Refresh rate: 60 Hz
• Pixel density: 100 PPI
• Mounting: side brackets

Recommendations

Verify your laptop's screen size, resolution, and connector type before ordering. This panel is a direct fit for many mainstream notebooks and provides a clear upgrade from a damaged display.
