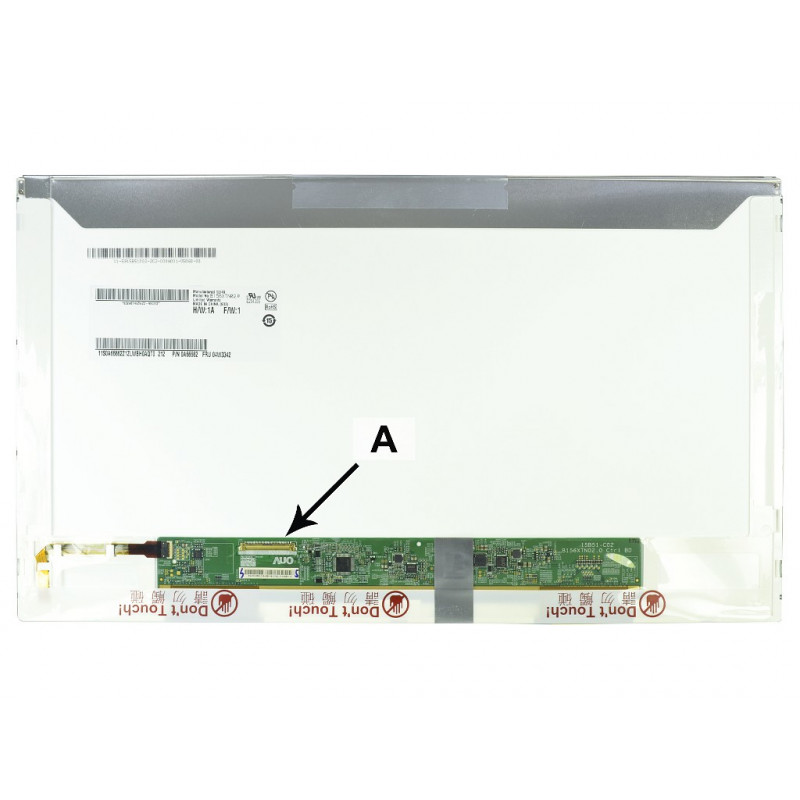

2-power 2P-LTN156AT05-Y02 - pantalla - 39,6 cm (15,6) - WXGA

The 2-POWER 2P-LTN156AT05-Y02 is a direct replacement display panel engineered around the Samsung LTN156AT05 specification, delivering a crisp WXGA image on a 15.6-inch glossy surface. Unlike generic compatible screens, this unit uses an active matrix TFT-LCD with LED backlighting and a 40-pin bottom-left connector, ensuring a straightforward swap for laptops originally fitted with LTN156AT05 or equivalent panels.

Highlights

• 15.6-inch (39.6 cm) WXGA resolution: 1366 x 768 pixels, 16:9 aspect ratio
• Glossy finish for vibrant colour and sharp contrast in indoor environments
• LED backlight with typical brightness of 220 cd/m²
• 40-pin connector positioned bottom-left for easy installation
• Supports 262K colours (6-bit) with 60 Hz refresh rate
• New condition, built to Samsung LTN156AT05 original specifications

In daily use

This panel is ideal for restoring laptops used for office work, web browsing, and media playback. The glossy coating enhances perceived sharpness, while the 220 cd/m² brightness is sufficient for typical indoor lighting. Viewing angles of 45/45/20/40 degrees (L/R/U/D) are standard for TN technology, making it best suited for single-user viewing. The 40-pin connector and bottom-left placement match many popular laptop models, reducing installation time and risk of incompatibility.

Full specifications

• Brand: 2-POWER
• Model: 2P-LTN156AT05-Y02
• MPN: 2P-LTN156AT05-Y02
• Display diagonal: 15.6 inches (39.6 cm)
• Resolution: WXGA (1366 x 768)
• Aspect ratio: 16:9
• Panel type: TFT-LCD, Active Matrix
• Backlight type: LED
• Surface finish: Glossy
• Connector type: 40 Pin LED (Bottom Left)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² (typical)
• Colour support: 262K colours (6-bit)
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Original panel manufacturer: Samsung
• Original panel model: LTN156AT05
• Condition: New
• Compatibility: Laptops using LTN156AT05 or equivalent panels

Final note

Choose the 2-POWER 2P-LTN156AT05-Y02 for a reliable, specification-matched replacement that brings your laptop display back to life with clear, bright visuals.
