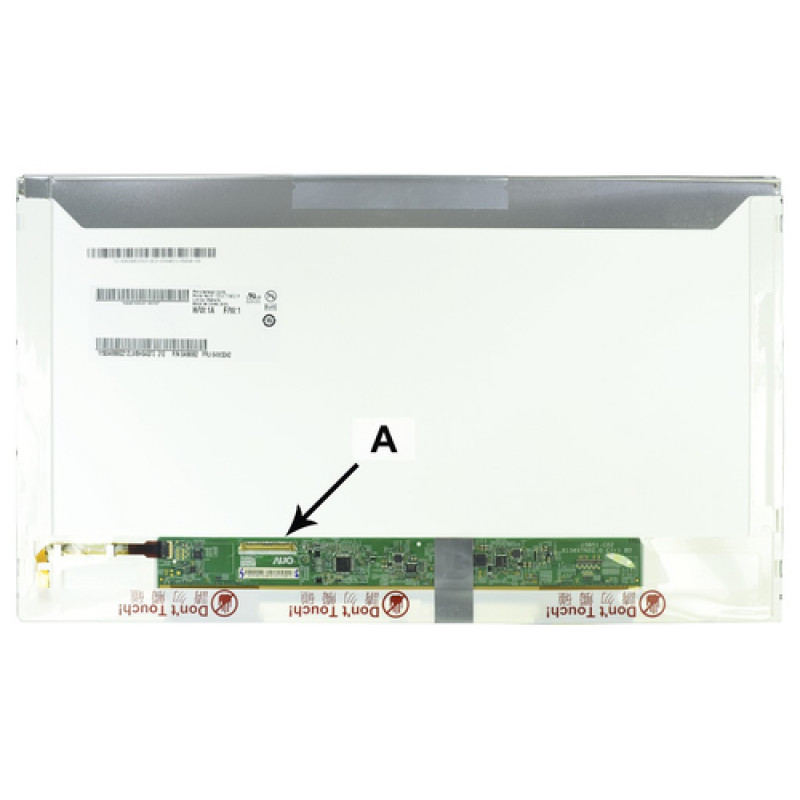

2-power 2P-LTN156AT10-503 - Pantalla - 39,6 cm (15,6 inch) - WXGA

Unlike generic replacement panels that force compromises in colour or fit, the 2-Power 2P-LTN156AT10-503 is engineered as a direct, drop-in upgrade for laptops originally equipped with the Samsung LTN156AT10 series. It pairs a bright 200 cd/m² LED backlight with a glossy 16:9 TN panel, delivering crisp text and vivid imagery without the dullness often found in budget alternatives. The 40-pin LVDS connector and side-bracket mounting align precisely with common chassis designs, making installation straightforward for technicians and confident DIYers.

Highlights

• 15.6-inch WXGA (1366 x 768) resolution with 16:9 aspect ratio
• LED backlight for lower power consumption and slim profile
• Glossy surface enhances colour saturation and perceived contrast
• 40-pin LVDS interface for broad compatibility with older laptops
• Side-bracket mounting matches standard 15.6" notebook frames
• 6-bit colour depth (262,144 colours) for smooth gradients

In daily use

Whether you are restoring a workhorse laptop or upgrading a secondary machine, this panel delivers consistent brightness and a responsive 8 ms typical response time that keeps video and scrolling smooth. The 60 Hz refresh rate is ideal for productivity, web browsing, and casual media. Viewing angles of 45/45/20/40 degrees (L/R/U/D) are typical for TN technology, meaning the screen is best viewed straight-on—perfect for single-user tasks. With a modest 4.5 W power draw, it will not strain your battery or cooling system.

Full specifications

• Display diagonal: 39.6 cm (15.6")
• Display resolution: 1366 x 768 pixels (WXGA)
• Panel type: TN (Twisted Nematic) TFT Active Matrix LCD
• Backlight type: LED
• Surface finish: Glossy
• Aspect ratio: 16:9
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 400:1 (typical)
• Response time: 8 ms (typical)
• Viewing angles: 45° left, 45° right, 20° up, 40° down
• Colour support: 262,144 colours (6-bit)
• Refresh rate: 60 Hz
• Data connector: 40-pin LVDS
• Mounting type: Side brackets
• Power consumption: 4.5 W (typical)
• Compatible original panel MPN: Samsung LTN156AT10
• Condition: New

Final note

For a reliable, colour-accurate replacement that fits without modification, the 2-Power 2P-LTN156AT10-503 is a smart choice. Its combination of LED efficiency, glossy clarity, and exact connector compatibility makes it a dependable part for laptop refurbishment or repair.
