2-power 2P-LTN156AT38-401 - Pantalla - 39,6 cm (15,6") - HD

A cracked or dim laptop display can bring productivity to a halt. The 2-Power 2P-LTN156AT38-401 is a direct replacement LCD panel engineered to restore your notebook's visual clarity. This 15.6-inch HD screen delivers sharp 1366 x 768 resolution with a 16:9 aspect ratio, making it ideal for everyday computing tasks, multimedia, and office applications. Its LED backlight ensures energy efficiency and consistent brightness, while the glossy finish enhances colour vibrancy for a more immersive viewing experience.

Who is it for

This panel is intended for technicians, IT professionals, and DIY users who need a reliable replacement for a faulty Samsung LTN156AT38-401 or compatible model. It is suitable for a wide range of laptops that use a 40-pin LVDS connection and a 15.6-inch HD TN panel. Whether you are repairing a single device or managing a fleet, this screen offers a cost-effective solution without compromising on quality.

Main features

• 15.6-inch diagonal size with HD (1366 x 768) resolution
• TN (Twisted Nematic) panel technology with LED backlight
• Glossy surface finish for vivid colours and clarity

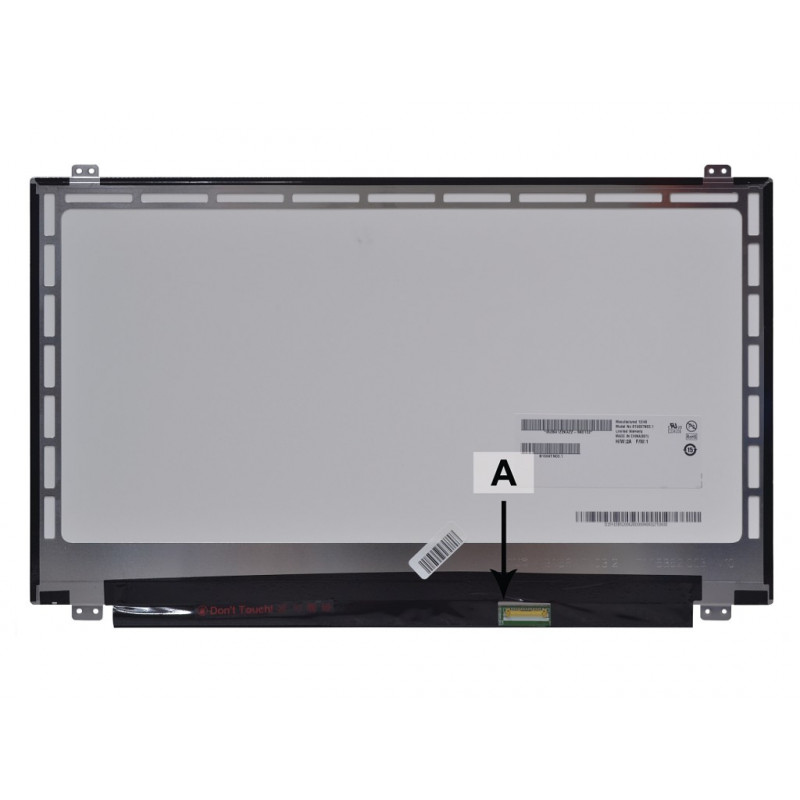

• 40-pin LVDS data connector located at bottom left (viewed from back)
• 60 Hz refresh rate and 8 ms response time for smooth motion
• Brightness of 220 cd/m² and contrast ratio of 500:1
• Wide compatibility with Samsung LTN156AT38-401 and equivalent models

Specifications

• Screen size: 15.6 inches
• Resolution: 1366 x 768 (HD)
• Aspect ratio: 16:9
• Panel type: TN
• Backlight: LED
• Surface finish: Glossy
• Connector: 40-pin LVDS
• Connector position: Bottom left (viewed from back)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Response time: 8 ms
• Viewing angles: 90° horizontal, 50° vertical (typical)
• Colour depth: 262K (6-bit)
• Technology: Active Matrix TFT LCD

Tips

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting brackets. Handle the panel by its edges to avoid fingerprints or pressure damage. Use an anti-static wrist strap during installation to prevent electrostatic discharge. Test the screen before final assembly to ensure proper function.
