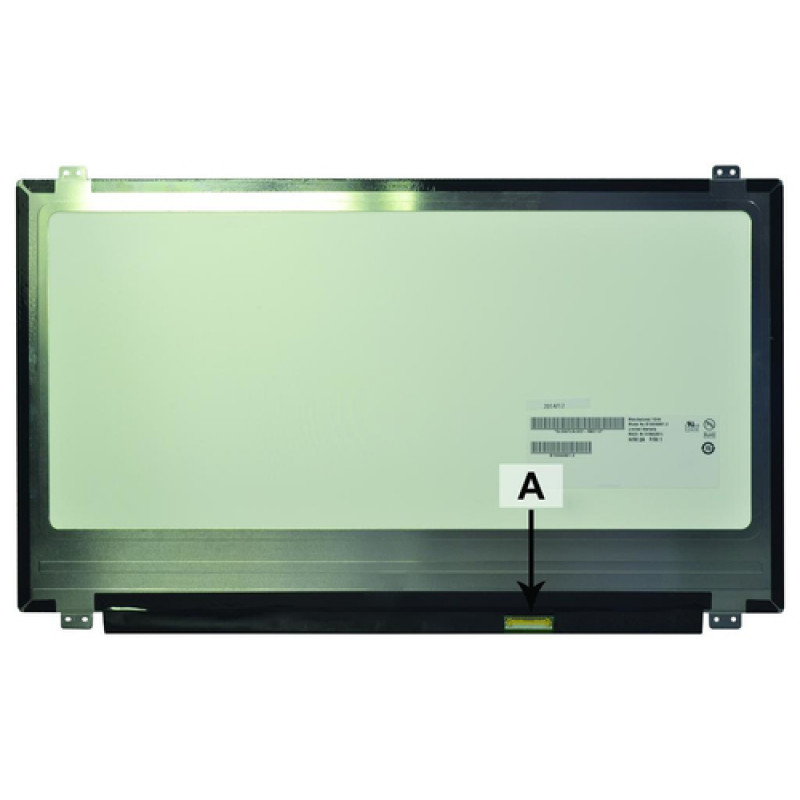

2-power 2P-LTN156HL09-402 - 39,6 cm (15,6") - Full HD

When a laptop screen fails, the difference between a quick repair and a costly replacement often comes down to the panel you choose. The 2-POWER 2P-LTN156HL09-402 is a direct-fit 15.6-inch Full HD display built around the proven Samsung LTN156HL09-402 cell, delivering the same visual clarity and color response as the original without the OEM price tag. Whether you are refurbishing a business notebook or upgrading a damaged panel, this screen restores sharp text, accurate colors, and comfortable viewing angles.

Highlights

• 15.6-inch (39.6 cm) a-Si TFT-LCD panel with LED backlight
• Full HD 1920 x 1080 resolution, 16:9 aspect ratio
• Matte anti-glare surface reduces reflections in bright environments
• 30-pin eDP connector, bottom-right orientation for easy installation
• 60 Hz refresh rate, 300 cd/m² typical brightness
• 45% NTSC color gamut for accurate, lifelike images
• Wide 80/80/80/80 degree viewing angles
• Original Samsung panel model LTN156HL09-402

In daily use

This panel is a drop-in replacement for laptops that require a 15.6-inch Full HD 30-pin eDP screen. The matte finish cuts glare from overhead lights and windows, making it ideal for office work, web browsing, and media consumption. The 300 cd/m² brightness ensures readability in most indoor settings, while the 25 ms response time is perfectly adequate for productivity and casual video. Because it uses the same Samsung cell as many OEM panels, color calibration and backlight uniformity are consistent with factory specifications.

Full specifications

• Brand: 2-POWER
• Model: 2P-LTN156HL09-402
• Display Size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Display Technology: a-Si TFT-LCD
• Backlight Type: LED
• Aspect Ratio: 16:9
• Surface Finish: Matte (Anti-Glare)
• Connector Type: 30-pin eDP
• Connector Position: Bottom Right
• Refresh Rate: 60 Hz
• Brightness: 300 cd/m² (Typical)
• Color Gamut: 45% NTSC (Typical)
• Response Time: 25 ms (Typical)
• Viewing Angle: 80/80/80/80 (L/R/U/D)
• Original Panel Manufacturer: Samsung
• Original Panel Model: LTN156HL09-402
• Condition: New
• Product Type: Laptop LCD Panel

Final note

For technicians and DIY repairers, the 2-POWER 2P-LTN156HL09-402 offers a reliable, cost-effective way to bring a laptop back to life. Verify your original panel model and connector position before ordering to ensure perfect compatibility.
