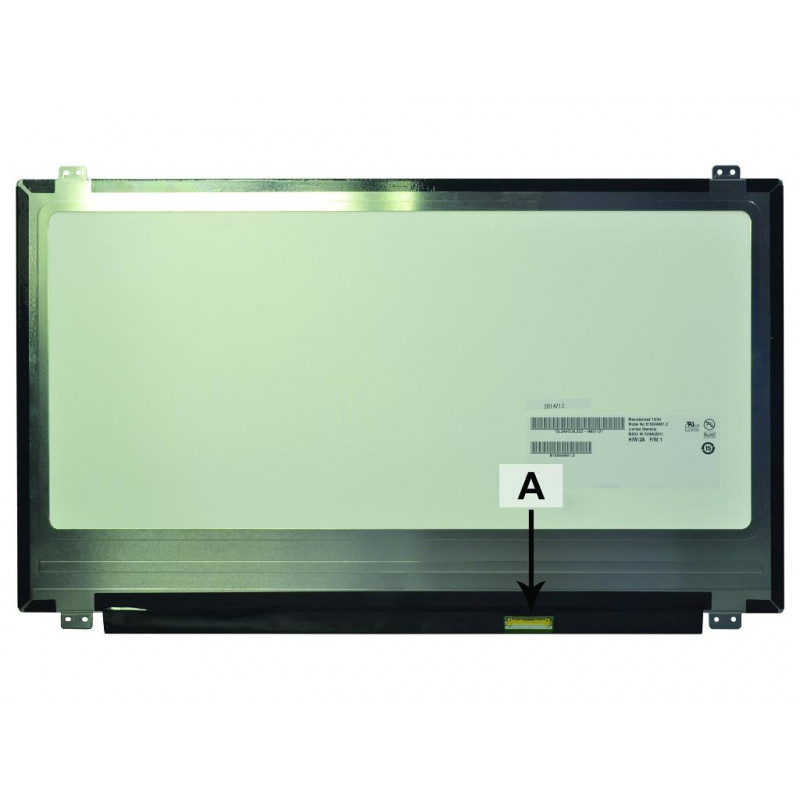

2-power 2P-LTN156HR01-002 - 39,6 cm (15,6") - Full HD

Experience crisp Full HD clarity with the 2-POWER 2P-LTN156HR01-002, a 15.6-inch replacement laptop screen engineered to deliver a sharp 1920x1080 resolution on a glossy TN panel. With a 60Hz refresh rate and 8ms response time, it keeps everyday computing smooth and responsive, while the LED backlight ensures consistent brightness at 220 cd/m². This panel is a direct fit for laptops using the Samsung LTN156HR01 series, featuring a 40-pin LVDS connector positioned at the left bottom for straightforward installation.

Overview

Designed for reliable performance, this screen combines a 16:9 aspect ratio with a 500:1 contrast ratio to render clear text and vibrant visuals. The TN technology provides fast pixel transitions, making it suitable for office work, web browsing, and video playback. The glossy surface enhances perceived color depth, though it may reflect ambient light in bright environments. The panel is brand new and mounts via side brackets, matching the original equipment specifications for many popular laptop models.

What stands out

• Full HD 1920x1080 resolution for sharp detail
• Glossy finish for vivid, punchy colors
• LED backlight for energy efficiency and uniform brightness
• 40-pin LVDS connector for wide compatibility
• Fast 8ms response time reduces motion blur
• Compatible with Samsung LTN156HR01 series panels

Technical details

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Aspect ratio: 16:9
• Surface finish: Glossy (Glare)
• Data connector: 40-pin LVDS (left bottom)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Response time: 8 ms
• Viewing angles: 45/45/20/40 degrees (L/R/U/D)
• Color gamut: 45% NTSC (approx. 60% sRGB)
• Touchscreen: No
• Condition: New
• Mounting type: Side brackets
• Technology: TFT Active Matrix

Our verdict

A reliable and affordable replacement screen that brings your laptop back to life with Full HD clarity. The glossy TN panel offers good performance for everyday tasks, and the standard 40-pin LVDS connection ensures a hassle-free installation for compatible models.
